AFRXUP-S | Valve Actuator | Spg Rtn | 24 to 240V (UP) | On/Off | SW | Belimo

Configurable Valve Actuator, Spring return, AC 24...240 V / DC 24...125 V, On/Off, 2 x SPDT

Belimo | AFRXUP-S

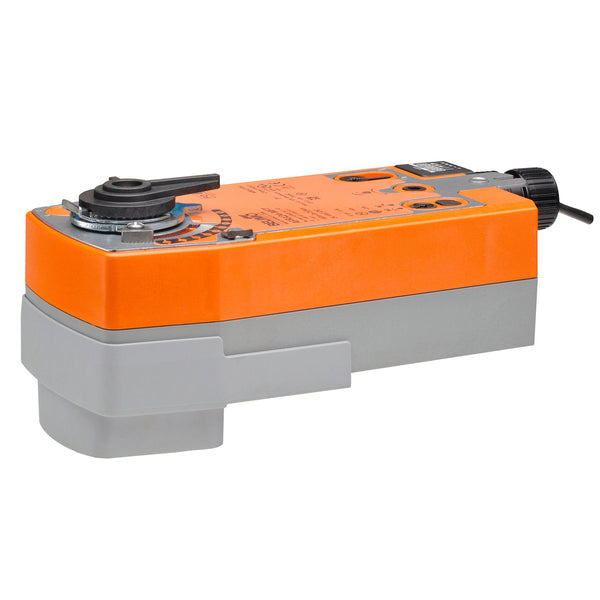

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to AFRXUP-S
DocumentsOverview SpecificationsParts & AccessoriesReviews

Documents and manuals

Belimo AFRXUP-S Documents

Datasheet More Info

Overview

Details for AFRXUP-S

Valve Actuator | Spg Rtn | 24 to 240V (UP) | On/Off | SW

Specifications

Valve specifications
Angle of Rotation
90
Controllable Flow Range
75B0
Cv
25
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
1.25" [32]
Actuator specifications
Actuator Type
Spring return
Auxiliary Switches
2 x SPDT
Control Type
On/Off
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Manual Override
5 mm hex crank (3/16" Allen) supplied
Power Consumption (Holding)
3.5 W
Power Consumption (Running)
7 W
Running Time (Fail-safe)
<20 s
Running Time (Motor)
75 s / 90B0
Voltage AC/DC
AC 24...240 V / DC 24...125 V
