AFRXUP N4 | Valve Actuator | Spg Rtn | 24 to 240V (UP) | On/Off | NEMA 4 | Belimo

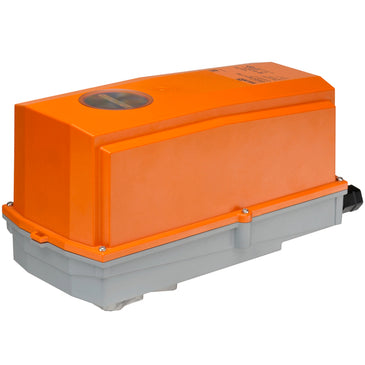

The photo is for representation purposes only and may not be a photo of product being purchased.
Overview
Details for AFRXUP N4
Valve Actuator | Spg Rtn | 24 to 240V (UP) | On/Off | NEMA 4
Butterfly Valve with Lug types Resilient Seat, 304 Stainless Steel DiscSpecifications
- Item Number
- AFRXUP N4
- Brand
- Belimo
- Actuator Type
- Valve
- Control Input
- On/Off
- Housing
- NEMA 4
- Spring Return
- Spring Return
- Voltage
- 24-240V
- Actuator specifications
- Actuator Type
- Spring return
- Control Type
- On/Off
- Degree of Protection
- IP66 NEMA 4X UL Enclosure Type 4X
- Electrical Connection
- cable
- Manual Override
- 5 mm hex crank (3/16" Allen) supplied
- Power Consumption (Holding)
- 3.5 W
- Power Consumption (Running)
- 7 W
- Running Time (Fail-safe)
- <20 s
- Running Time (Motor)
- 75 s / 90B0
- Voltage AC/DC
- AC 24...240 V / DC 24...125 V
- Valve specifications
- Angle of Rotation
- 90
- Controllable Flow Range
- 75B0
- Cv
- 25
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 1.25" [32]
Accessories
ZS-260 | Explosion proof housing. | Belimo
$1,680.75 each
ZS-300 | NEMA 4X | 304 stainless steel enclosure. | Belimo
$1,386.00 each
