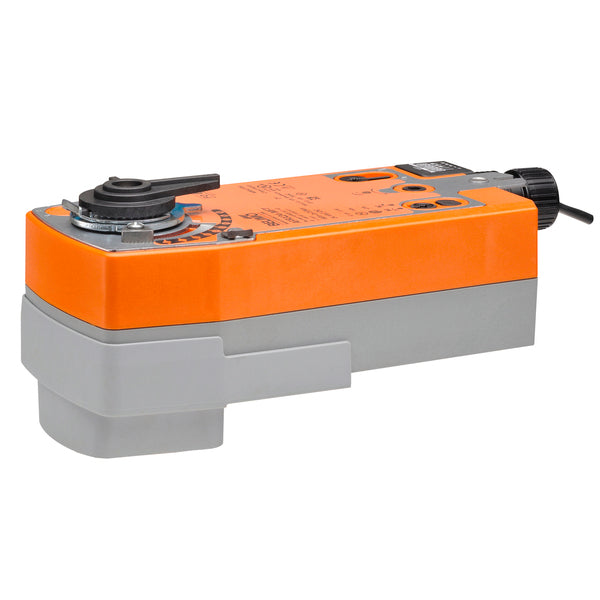

AFRX24-S | Valve Actuator | Spg Rtn | 24V | On/Off | SW | Belimo

Configurable Valve Actuator, Spring return, AC/DC 24 V, On/Off, 2 x SPDT

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to AFRX24-S

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Belimo AFRX24-S Documents

Datasheet More Info

Overview

Details for AFRX24-S

Valve Actuator | Spg Rtn | 24V | On/Off | SW

Specifications

Valve specifications
Angle of Rotation: 90
Controllable Flow Range: 75B0
Cv: 25
End Fitting: Internal thread
Fluid: Chilled or hot water up to 60% glycol
Pattern: 2-way
Pressure Independent: NO
Trim: Stainless steel
Valve Size: 1.25" [32]
Actuator specifications
Actuator Type: Spring return
Auxiliary Switches: 2 x SPDT
Control Type: On/Off
Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection: cable
Manual Override: 5 mm hex crank (3/16" Allen) supplied
Power Consumption (Holding): 2.5 W
Power Consumption (Running): 5 W
Running Time (Fail-safe): <20 s
Running Time (Motor): 75 s / 90B0
Voltage AC/DC: AC/DC 24 V
