AFRX24-S N4 | Valve Actuator | Spg Rtn | 24V | On/Off | SW | NEMA 4 | Belimo

Valve Actuator, Spring return, AC/DC 24 V, On/Off, 2 x SPDT, NEMA 4X

Belimo | AFRX24-S N4

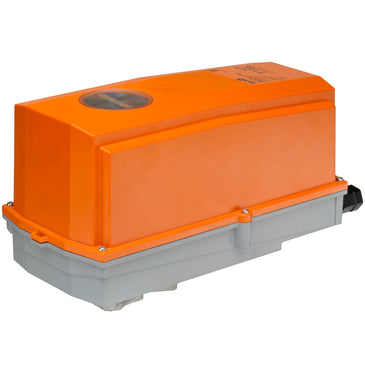

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to AFRX24-S N4

Documents and manuals

Belimo AFRX24-S N4 Documents

Overview

Details for AFRX24-S N4

Valve Actuator | Spg Rtn | 24V | On/Off | SW | NEMA 4

Specifications

Valve specifications
Angle of Rotation
90
Controllable Flow Range
75B0
Cv
37
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
1.5" [40]
Actuator specifications
Actuator Type
Spring return
Auxiliary Switches
2 x SPDT
Control Type
On/Off
Degree of Protection
IP66 NEMA 4X UL Enclosure Type 4X
Electrical Connection
cable
Manual Override
5 mm hex crank (3/16" Allen) supplied
Power Consumption (Holding)
2.5 W
Power Consumption (Running)
5 W
Running Time (Fail-safe)
<20 s
Running Time (Motor)
75 s / 90B0
Voltage AC/DC
AC/DC 24 V
