AFRX24 N4 | Valve Actuator | Spg Rtn | 24V | On/Off | NEMA 4 | Belimo

Valve Actuator, Spring return, AC/DC 24 V, On/Off, NEMA 4X

Belimo | AFRX24 N4

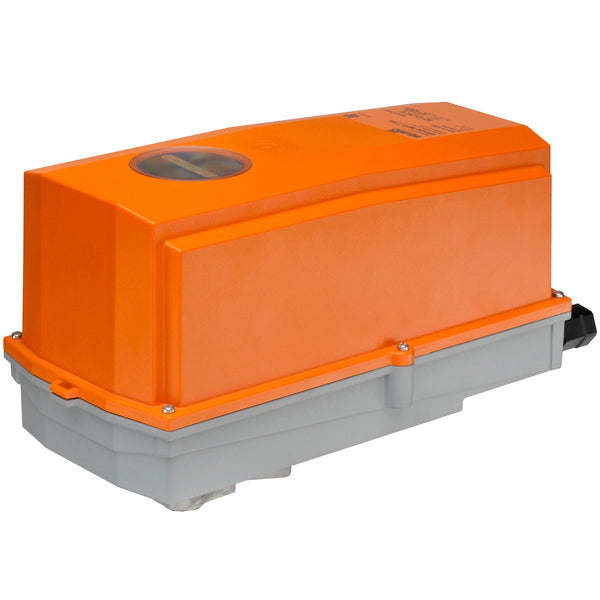

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to AFRX24 N4
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Belimo AFRX24 N4 Documents

Datasheet More Info

Overview

Details for AFRX24 N4

Valve Actuator | Spg Rtn | 24V | On/Off | NEMA 4

Designed for use in ANSI flanged piping systems.Designed for use in ANSI flanged piping systems to meet the needs of bi-directional high flow HVAC hydronic applications requiring 0% leakage. Used for isolation (shut-off) service or throttling service within a range of 0-60 degrees rotation. Typical applications include chiller and boiler isolation, primary bypass flow control , cooling tower isolation, large air handler coil control, and process control heat exchanger applications.

Specifications

Valve specifications
Angle of Rotation
90
Controllable Flow Range
75B0
Cv
25
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
1.25" [32]
Actuator specifications
Actuator Type
Spring return
Control Type
On/Off
Degree of Protection
IP66 NEMA 4X UL Enclosure Type 4X
Electrical Connection
terminals
Manual Override
5 mm hex crank (3/16" Allen) supplied
Power Consumption (Holding)
2.5 W
Power Consumption (Running)
5 W
Running Time (Fail-safe)
<20 s
Running Time (Motor)
75 s / 90B0
Voltage AC/DC
AC/DC 24 V
