AFBUP-X1 | Valve Actuator | Spg Rtn | 24 to 240V (UP) | On/Off | Belimo

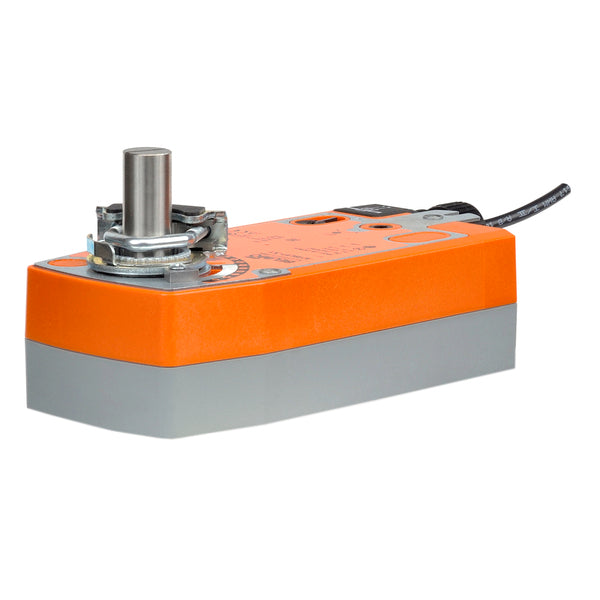

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Specifications Documents Parts & Accessories Reviews

Overview

Details for AFBUP-X1

Valve Actuator | Spg Rtn | 24 to 240V (UP) | On/Off

200 psi (2: to 12") and 150 psi (14"-30") bubble tight shut-off, Long stem design allows for 2" insulation, Valve face-to-face dimensions comply with API 609 & MSS-SP-67, Completely assembled and tested, ready for installation

Specifications

Item Number: AFBUP-X1
Brand: Belimo
Actuator Type: Valve
Control Input: On/Off
Spring Return: Spring Return
Voltage: 24-240V
Actuator specifications
Actuator Type: Spring return
Control Type: On/Off
Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection: cable
Manual Override: 5 mm hex crank (3/16" Allen) supplied
Power Consumption (Holding): 3.5 W
Power Consumption (Running): 7 W
Running Time (Fail-safe): <20 s
Running Time (Motor): 75 s / 90B0
Voltage AC/DC: AC 24...240 V / DC 24...125 V

Valve specifications
Angle of Rotation: 95
ANSI Class: 300
Controllable Flow Range: 75B0
Cv: 77
End Fitting: Internal thread
Fluid: Chilled or hot water up to 60% glycol steam
Pattern: 2-way
Pressure Independent: NO
Trim: Stainless steel
Valve Size: 2" [50]

Documents and manuals

Belimo AFBUP-X1 Documents

Datasheet More Info
