AFB24-X1 | Valve Actuator | Spg Rtn | 24V | On/Off | Belimo

Get Special Pricing!

Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!

Brand: BelimoSKU: AFB24-X1

Web Price:

$334.80

Availability: This product is currently available to purchase

This item ships FREE*

*Free shipping applies within the continental US and weighing less than 50 lbs.

Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

Related Products

AFB24-X1 | Valve Actuator | Spg Rtn | 24V | On/Off | Belimo

Valve Actuator, Spring return, AC/DC 24 V, On/Off

Belimo | AFB24-X1

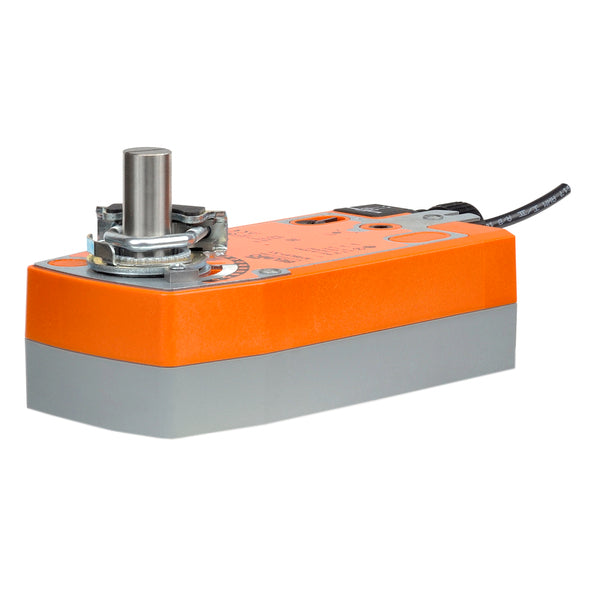

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to AFB24-X1

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Belimo AFB24-X1 Documents

Datasheet More Info

Overview

Details for AFB24-X1

Valve Actuator | Spg Rtn | 24V | On/Off

During installation, testing, servicing and troubleshooting of this product, it may be necessary to work with live electrical components. Have a qualified licensed electrician or other individual who has been properly trained in handling live electrical components perform these tasks. Failure to follow all electrical safety precautions when exposed to live electrical components could result in death or serious injury

Specifications

Valve specifications
Angle of Rotation: 95
ANSI Class: 300
Controllable Flow Range: 75B0
Cv: 77
End Fitting: Internal thread
Fluid: Chilled or hot water up to 60% glycol steam
Pattern: 2-way
Pressure Independent: NO
Trim: Stainless steel
Valve Size: 2" [50]
Actuator specifications
Actuator Type: Spring return
Control Type: On/Off
Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection: cable
Manual Override: 5 mm hex crank (3/16" Allen) supplied
Power Consumption (Holding): 2.5 W
Power Consumption (Running): 5 W
Running Time (Fail-safe): <20 s
Running Time (Motor): 75 s / 90B0
Voltage AC/DC: AC/DC 24 V

Accessories

Belimo ZTH US Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. Pack of 1 | Blackhawk Supply

ZTH US | Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Belimo $482.40 each

Belimo ZG-R01 4 to 20 mA adaptor: 500 ohms | 1/4 W resistor with 6" pigtail wires. Pack of 1 | Blackhawk Supply

ZG-R01 | 4 to 20 mA adaptor: 500 ohms | 1/4 W resistor with 6" pigtail wires. | Belimo $26.85 each

Belimo KH-AFB AF/NF crankarm (with 3/4" diameter shaft pass through). Pack of 1 | Blackhawk Supply

KH-AFB | AF/NF crankarm (with 3/4" diameter shaft pass through). | Belimo $19.35 each

Belimo KG8 Ball joint for 5/16" diameter rod | 90 | galvanized steel. Pack of 1 | Blackhawk Supply

KG8 | Ball joint for 5/16" diameter rod | 90 | galvanized steel. | Belimo $15.75 each

Belimo SH8 Push rod for KG6 & KG8 ball joints (36" L | 5/16" diameter). Pack of 1 | Blackhawk Supply

SH8 | Push rod for KG6 & KG8 ball joints (36" L | 5/16" diameter). | Belimo $18.45 each

Belimo KH8 Universal crank arm for KG8 or KG10A ball joint | 21/64" slot width. For damper shafts: 3/8" to 11/16" diameter or 3/8" to 9/16" square. Pack of 1 | Blackhawk Supply

KH8 | Universal crank arm for KG8 or KG10A ball joint | 21/64" slot width. For damper shafts: 3/8" to 11/16" diameter or 3/8" to 9/16" square. | Belimo $26.85 each
