AFB24-MFT-S-X1 | Spring Return | 180 in-lb | MFT | 24V | Belimo

Valve Actuator, Spring return, AC/DC 24 V, 2...10 V, 2 x SPDT, MFT/programmable

Belimo | AFB24-MFT-S-X1

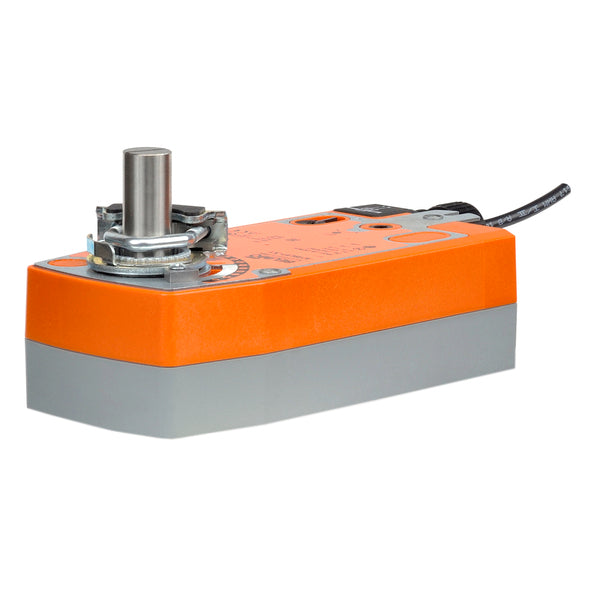

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to AFB24-MFT-S-X1
DocumentsOverview SpecificationsParts & AccessoriesReviews

Documents and manuals

Belimo AFB24-MFT-S-X1 Documents

Datasheet More Info

Overview

Details for AFB24-MFT-S-X1

Spring Return | 180 in-lb | MFT | 24V

Specifications

Actuator Type
Spring return
Angle of Rotation
95
Auxiliary Switches
2 x SPDT
Control Type
MFT/Programmable
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Power Consumption (Holding)
3 W
Power Consumption (Running)
7.5 W
Protection category
IP54
Running Time (Fail-safe)
<20 s
Running Time (Motor)
150 s / 90B0
Running Time range (Motor)
70...220 s
Voltage AC/DC
AC/DC 24 V

Parts & Accessories

Belimo ZTH US Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Blackhawk Supply
ZTH US | Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Belimo
$507.60 each
Belimo ZG-R01 4 to 20 mA adaptor: 500 ohms | 1/4 W resistor with 6" pigtail wires. | Blackhawk Supply
ZG-R01 | 4 to 20 mA adaptor: 500 ohms | 1/4 W resistor with 6" pigtail wires. | Belimo
$15.75 each
Belimo KH-AFB AF/NF crankarm (with 3/4" diameter shaft pass through). | Blackhawk Supply
KH-AFB | AF/NF crankarm (with 3/4" diameter shaft pass through). | Belimo
$20.25 each
Belimo KG8 Ball joint for 5/16" diameter rod | 90 | galvanized steel. | Blackhawk Supply
KG8 | Ball joint for 5/16" diameter rod | 90 | galvanized steel. | Belimo
$23.25 each
Belimo KH8 Universal crank arm for KG8 or KG10A ball joint | 21/64" slot width. For damper shafts: 3/8" to 11/16" diameter or 3/8" to 9/16" square. | Blackhawk Supply
KH8 | Universal crank arm for KG8 or KG10A ball joint | 21/64" slot width. For damper shafts: 3/8" to 11/16" diameter or 3/8" to 9/16" square. | Belimo
$15.75 each
Belimo KG10A Ball joint for 3/8" diameter rod | zinc plated. | Blackhawk Supply
KG10A | Ball joint for 3/8" diameter rod | zinc plated. | Belimo
$26.85 each
