AR3347 | NetShelter SX 48U 750mm Wide x 1200mm Deep Networking Enclosure with Sides | APC

Brand: APCSKU: AR3347

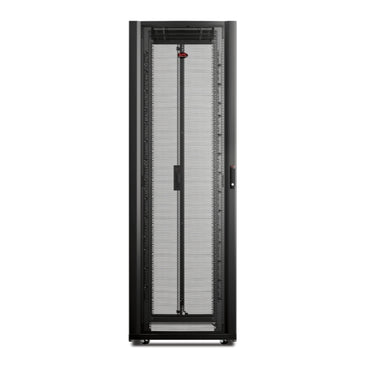

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to AR3347

Jump to: Overview & Specifications Reviews

Overview Details for AR3347

NetShelter SX 48U 750mm Wide x 1200mm Deep Networking Enclosure with Sides

An industry standard network rack ready for high density environments with height designed to easily fit through standard doorways. Network rack design enables faster deployment of network switches and an optimized rack mounting space designed specifically for cable and airflow management of large core networking switches and Storage Area Network (SAN) directors. Deeper rack design provides enough rack mounting space for even the deepest devices and still plenty of room for vertically mounting Rack PDUs and cable management. 48U height allows for an additional 6U of rack mounting space maximizing u-space per rack footprint.

Specifications

Presentation: NetShelter SX Networking Enclosure expands Schneider Electric's superior IT enclosure line with improved support for high density networking applications. Integrated high density cable managers and improved cable access roof provide support for large cable bundles. When combined with the Side Airflow Duct Kit, the Networking Enclosure ensures complete isolation of cold intake and hot exhaust air for large switches and SAN directors.
Lead time: Usually in Stock
Product or component type: Rack enclosure
Number of rack unit: 48U
Provided equipment: Baying hardware
Key(s)
Keyed-alike doors and side panels
Leveling feet
Mounting hardware
Pre-installed casters
Side panels
Vertical cable managers
Height: 225.8 cm
Width: 75 cm
Depth: 120 cm
Net weight: 185.45 kg
Colour: Black
Mounting preference: No preference
Mounting mode: Not rack-mountable
Maximum mounting depth: 95.89 cm
Minimum mounting depth: 27.94 cm
Rack width: 19"
Marking: 14 gauge EIA mounting rail
16 gauge front door
16 gauge post
16 gauge rear door
18 gauge roof
18 gauge side panels
Permanent permissible load: 1020.58 kg dynamic
1700.97 kg static
Standards: UL 2416
UL 60950-1
EIA-310E
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 238.5 cm
Package 1 Width: 85.1 cm
Package 1 Length: 132.1 cm
Package 1 Weight: 208.18 kg
Warranty: 5 year repair or replace
