LNP-C500G-T | Compact 5-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch | w/4*10/100/1000Tx (30W/Port) + 1*10/100/1000Tx; EOT: -40 to 75C | Antaira

Compact 5-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch | w/4*10/100/1000Tx (30W/Port) + 1*10/100/1000Tx; EOT: -40 to 75C

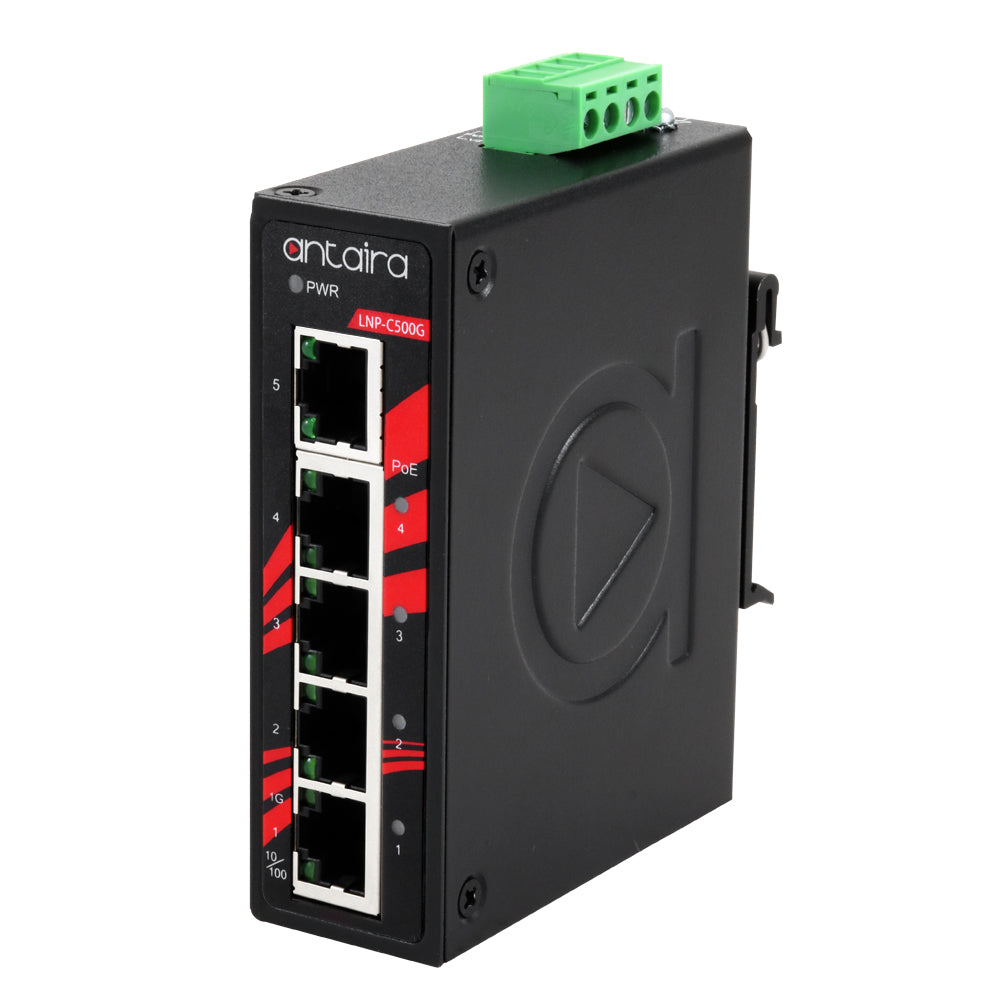

Antaira Technologies’ LNP-C500G series is a compact 5-port industrial gigabit PoE+ unmanaged Ethernet switch. The small form factor of this metal IP30 rated design is 50% smaller which allows for a more versatile implementation. The LNP-C500G series is equipped with 4*10/100/1000Tx Ethernet ports that support IEEE 802.3af/at for a maximum of 30W/port and 1*10/100/1000Tx Ethernet port. The LNP-C500G series can handle high bandwidth applications in tight spaces.The LNP-C500G series supports high EFT & ESD protection through the redundant power inputs that support reverse polarity and overload current protection. This product series supports DIN-rail as well as wall mountable orientations and provides operating temperature range models in STD: -10°C to 70°C and EOT: -40°C to 75°C. This is an industrial grade unit applicable for networking applications in factory automation, ITS, power/utility, water wastewater treatment plants, or any application that needs a compact solution.

Features

• Compact Industrial Grade Design
• Supports 4*10/100/1000Tx Gigabit Ethernet Ports (PSE: 30W/Port) and 1*10/100/1000Tx Port
• Supports Auto MDI/MDI-X Function
• Jumbo Frame Support: 10k
• Surge Protection: 2,000 VDC Support
• ESD Protection: 6,000 VDC Support
• Provide Max. 120W Full PoE Power Budget
• Redundant Power Input Design: 48~55VDC
• Power Polarity Reverse Protection
• Overload Current Protection
• IP30 Rugged Metal Case Design
• DIN-Rail and Wall Mount Support
• Operating Temperature Range: EOT: -40°C to 75°C
• 5-Year Warranty

Included

• 1 - DC cable –18 AWG & DC jack 5.5x2.1mm
• 1 - LNP-C500G-T
• 1 - Quick Installation Guide
• 1 - Set of wall mounting brackets and screws
