IMC-C1000-SFP-T | Compact Industrial Gigabit Ethernet Media Converter | with 10/100/1000TX To 100/1000 SFP Socket; EOT: -40° to 80°C | Antaira
Compact Industrial Gigabit Ethernet Media Converter, with 10/100/1000TX To 100/1000 SFP Socket; EOT: -40° to 80°C

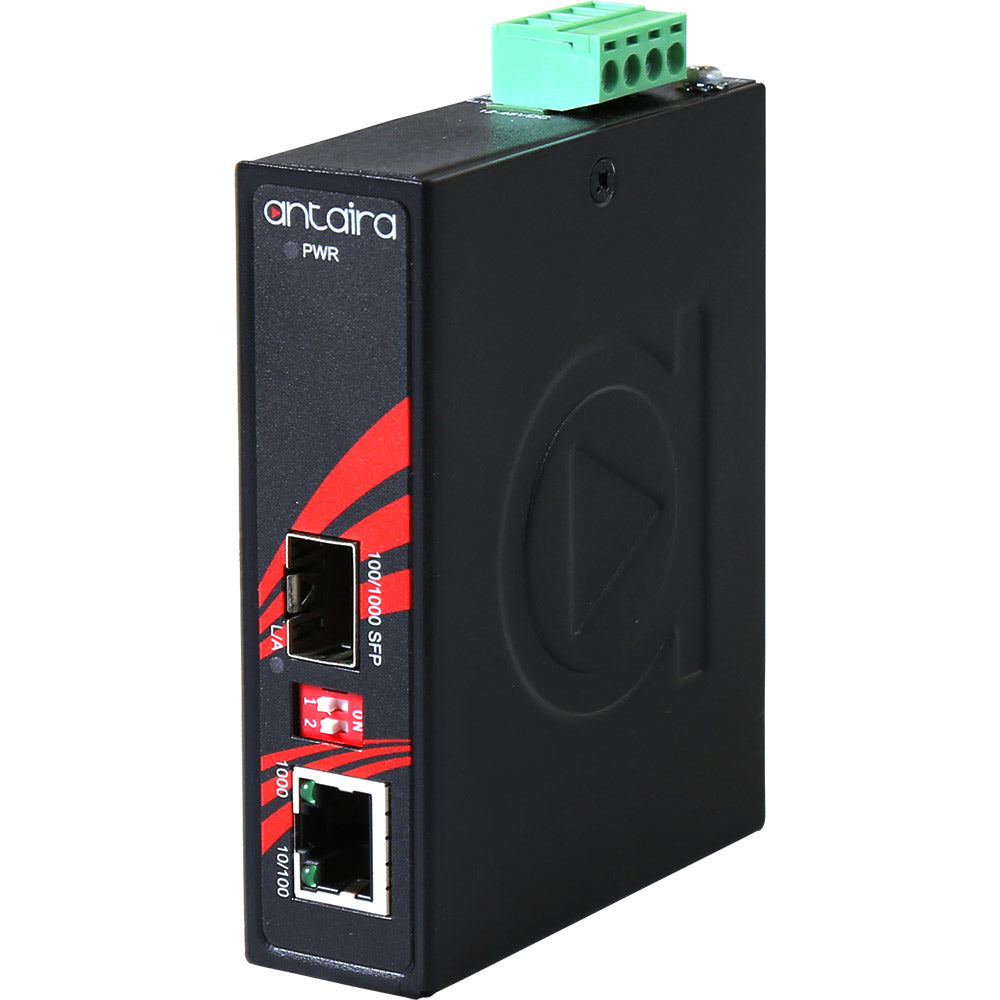

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to IMC-C1000-SFP-T
Documents and manuals
Antaira IMC-C1000-SFP-T Documents
Overview
Details for IMC-C1000-SFP-T
Compact Industrial Gigabit Ethernet Media Converter | with 10/100/1000TX To 100/1000 SFP Socket; EOT: -40° to 80°C
Antaira Technologies’ IMC-C1000-SFP series is a compact IP30 rated gigabit Ethernet-to-Fiber industrial media converter featuring a 10/100/1000TX Ethernet port and a dual rate 100/1000 SFP slot. It is perfectly designed to fulfill industrial applications that require distance extension and high bandwidth capabilities. This small form factor is ideal for saving space in outdoor applications such as factory automation, security, ITS transportation, power/utility, water wastewater treatment plants, and any other extreme ambient weather environments.The IMC-C1000-SFP series has a built-in “Link Fault Pass Through” (LFP) and “Far End Fault” (FEF) function with 12~48VDC redundant power inputs with reverse polarity and overload current protection. This industrial media converter series supports DIN-rail as well as wall mountable orientations and provides an extended operating temperature of -40°C to 80°C.Features
- Compact UTP to Gigabit Fiber Industrial Media Converter
- RJ-45 Port Support Auto MDI/MDI-X Function
- Auto Negotiation Speed, Half/Full Duplex
- Store-and-Forward Switching Architecture
- Built-in Link Loss Forwarding (LLF) & Link-Fault-Pass-Through (LFP)
- Jumbo Frame: 9Kbytes
- Wide-range Redundant Power Design
- Power Polarity Reverse Protection
- Overload Current Protection
- DIN-Rail or Wall Mountable
- IP30 Protection
- Extended Operating Temperature -40° ~ 80° C
- 5-Year Warranty
Included
- DC Cable - 18 AWG with DC jack 5.5x2.1mm
- DIN-Rail and Wall Mounting Brackets
- IMC-C1000-SFP-T
Specifications
- Back Plane
- 2Gbps
- Certifications
- FCC, CE, UL 61010-1, UL 61010-2-201
- Compliance
- NEMA TS1/TS2
- Dimensions
- 26 x 95 x 75 mm
- EMI
- FCC Class A, CE-EN6100-4-2/3/4/5/6/8/11/12, CE-EN6100-6-2/4
- Ethernet Port
- 1 x 10/100/1000TX RJ-45
- Fiber Port
- 1 x 100/1000TX SFP
- Free Fall
- IEC 60068-2-32
- Humidity
- 5% ~ 95% non-condensing
- IEEE Compliance
- IEEE 802.3 10BaseT;IEEE 802.3u 100BaseTX/FX;IEEE 802.3ab 1000BaseT;IEEE 802.3x Flow Control and Back-Pressure;IEEE 802.3z 1000BaseSX/LX
- LED Indicators
- Power (PWR): On / Off;Ethernet: On-Link / Flashing- Data Transmitting;SFP: Link & Active
- MAC Table Size
- 8K
- Method
- Store and Forward
- Operating Temperature
- -40° ~ 80° C
- Power Consumption
- 1.8 Watts
- Power Input
- 12 ~ 48 VDC
- Power Redundancy
- Yes
- Protocols
- CSMA/CD
- Shock
- IEC 60068-2-27
- Storage Temperature
- -40° ~ 85° C
- Transfer Rate
- 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,148,800pps for Fast Gigabit Port
- Vibration
- IEC 60068-2-6
- Warranty
- 5 Years
