LNP-C500G | Compact 5-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch | w/4*10/100/1000Tx (30W/Port) + 1*10/100/1000Tx | Antaira
Compact 5-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch, w/4*10/100/1000Tx (30W/Port) + 1*10/100/1000Tx

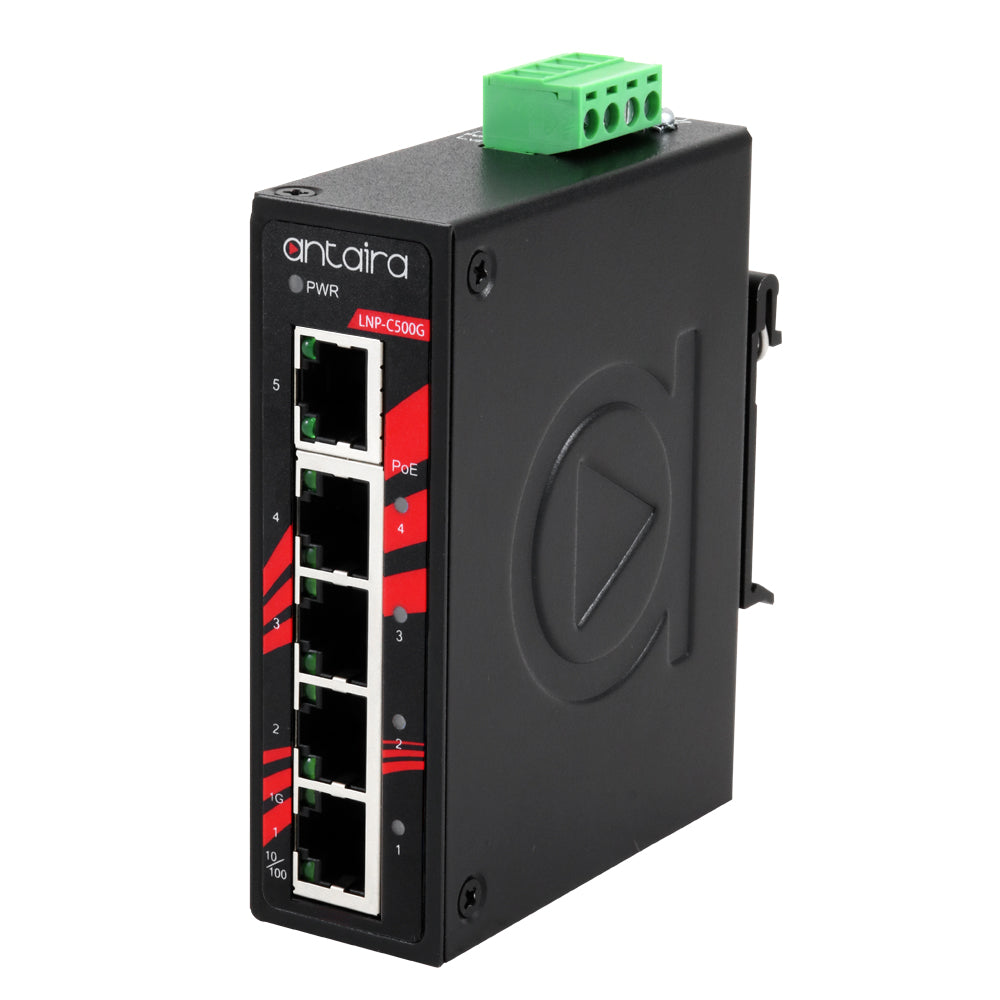

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNP-C500G
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner.jpg?v=1711003870)
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner-mob.jpg?v=1711003953)
Documents and manuals
Antaira LNP-C500G Documents
Overview
Details for LNP-C500G
Compact 5-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch | w/4*10/100/1000Tx (30W/Port) + 1*10/100/1000Tx
Antaira Technologies’ LNP-C500G series is a compact 5-port industrial gigabit PoE+ unmanaged Ethernet switch. The small form factor of this metal IP30 rated design is 50% smaller which allows for a more versatile implementation. The LNP-C500G series is equipped with 4*10/100/1000Tx Ethernet ports that support IEEE 802.3af/at for a maximum of 30W/port and 1*10/100/1000Tx Ethernet port. The LNP-C500G series can handle high bandwidth applications in tight spaces.The LNP-C500G series supports high EFT & ESD protection through the redundant power inputs that support reverse polarity and overload current protection. This product series supports DIN-rail as well as wall mountable orientations and provides operating temperature range models in STD: -10°C to 70°C and EOT: -40°C to 75°C. This is an industrial grade unit applicable for networking applications in factory automation, ITS, power/utility, water wastewater treatment plants, or any application that needs a compact solution.Features
- Compact Industrial Grade Design
- Supports 4*10/100/1000Tx Gigabit Ethernet Ports (PSE: 30W/Port) and 1*10/100/1000Tx Port
- Supports Auto MDI/MDI-X Function
- Jumbo Frame Support: 10k
- Surge Protection: 2,000 VDC Support
- ESD Protection: 6,000 VDC Support
- Provide Max. 120W Full PoE Power Budget
- Redundant Power Input Design: 48~55VDC
- Power Polarity Reverse Protection
- Overload Current Protection
- IP30 Rugged Metal Case Design
- DIN-Rail and Wall Mount Support
- Operating Temperature Range: STD: -10°C to 70°C
- 5-Year Warranty
Included
- 1 - DC cable –18 AWG & DC jack 5.5x2.1mm
- 1 - LNP-C500G
- 1 - Quick Installation Guide
- 1 - Set of wall mounting brackets and screws
Specifications
- Ambient Relative Humidity
- 5 to 95% (non-condensing)
- Certifications
- FCC, CE
- Dimensions
- 30 x 95 x 75mm (W*H*D)
- EMI
- FCC Part 15 Subpart B Class, CE EN 55022 Class A
- EMS
- EN 61000-6-2, EN 61000-6-4
- Ethernet Port
- 5*10/100/1000BaseTx with 4*PoE+, auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
- Flow Control
- IEEE 802.3x flow control, back pressure flow control
- Free Fall / Shock / Vibration
- IEC 60068-2-32 / IEC 60068-2-27 / IEC 60068-2-6
- Housing / Mounting
- Metal, IP30 rated / DIN-Rail; Wall-mount (optional)
- Input Voltage
- 48~55VDC, Redundant Input
- Jumbo Frame
- 10K bytes
- LED Indicators
- Power;Ethernet Ports: On - Link / Flash - data transmitting;PoE: On - connected to PD devices
- MAC Table Size
- 8K
- Memory Buffer
- 1 Mbits
- Operating Temperature
- STD: -10°C to 70°C
- Overload Current Protection
- Present
- Power Connection
- 1 removable 4-contact terminal block
- Power Consumption
- 5.5 Watts for system
- Processing Type
- Store and Forward
- Protocols
- CSMA/CD
- Reverse Polarity Protection
- Present
- Standards
- IEEE 802.3 10Tx Ethernet;IEEE 802.3U 100Tx Fast Ethernet;IEEE 802.3ab 1000Tx Gigabit Ethernet;IEEE 802.3af/at Power over Ethernet
- Transfer Rate
- 14,880pps for 10Base-T Ethernet port;148,800pps for 100Base-T Fast Ethernet port;1,488,000pps for 1000Base-T Gigabit Ethernet Ethernet
- Warranty
- 5 Years
- Weight
- Unit: 0.77 lb; Shipping: 0.99 lb
