LNP-1204G-10G-SFP-24 | 12-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch | with 8*10/100/1000Tx (30W/Port) | 2*1G SFP Slots | and 2*10G SFP+ Slots; 12~55VDC Power Input | Antaira
12-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch, with 8*10/100/1000Tx (30W/Port), 2*1G SFP Slots, and 2*10G SFP+ Slots; 12~55VDC Power Input

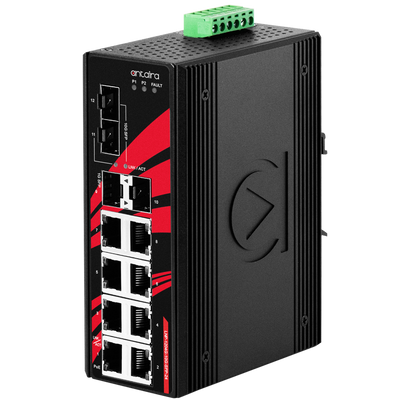

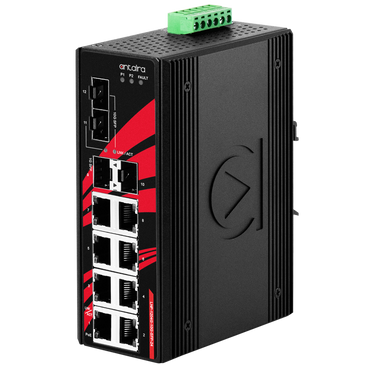

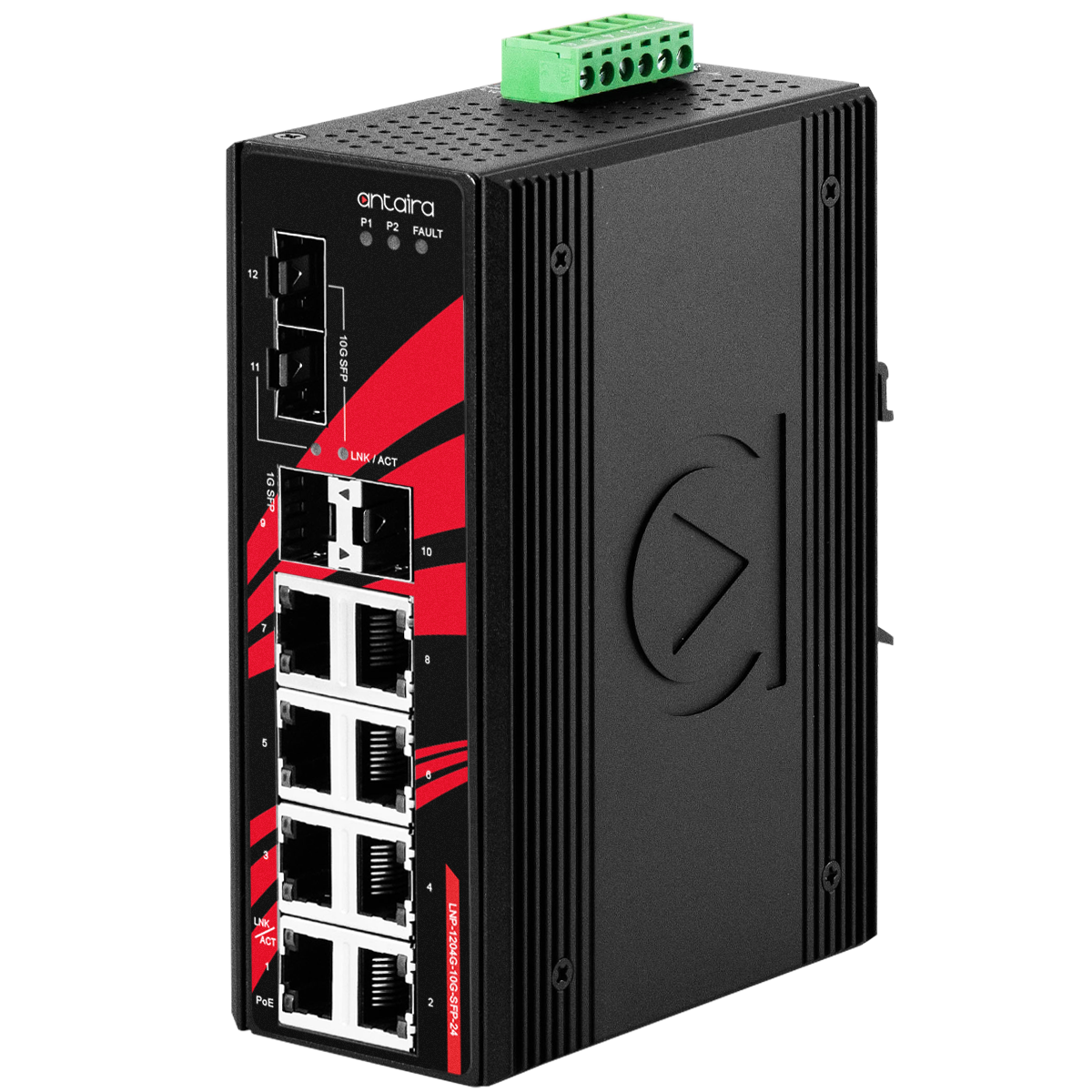

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNP-1204G-10G-SFP-24
Documents and manuals
Antaira LNP-1204G-10G-SFP-24 Documents
Overview
Details for LNP-1204G-10G-SFP-24
12-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch | with 8*10/100/1000Tx (30W/Port) | 2*1G SFP Slots | and 2*10G SFP+ Slots; 12~55VDC Power Input
Antaira Technologies’ LNP-1204G-10G-SFP-24 are industrial gigabit PoE+ unmanaged Ethernet switches featuring 8*10/100/1000Tx Gigabit Ethernet ports that support IEEE802.3at for a maximum of 30W/port. The LNP-1204G-10G-SFP-24 has 2*1G SFP slots and 2*10G SFP+ slots which provide options for long-distance fiber connections. The Ethernet switches are designed with high EFT and ESD protection and support standard operating temperature from -40° to 65°C.The LNP-1204G-10G-SFP-24 are IP30 rated and DIN-rail mountable. These Ethernet switches are designed to be powered with low voltage input (12~55VDC) while still providing the higher voltages required by the PoE standards. Additionally, these industrial PoE Ethernet switches provide connectivity for outdoor or harsh industrial automation application environments, such as security surveillance, ITS-traffic monitoring systems, oil/gas and mining, facility management for power/utility, water wastewater treatment plants, and lastly, automated production lines in factory automation.Features
- Supports 8*10/100/1000Tx IEEE 802.3af/at Compliant with 30W/Port, 2*1G SFP Slots, and 2*10G SFP+ Slots
- Store-and-Forward Switching Architecture
- 60Gbps Back-Plane (Switching Fabric)
- 16K MAC Address Table
- 10Kbytes Jumbo Frame Support
- Redundant Power Input Design: 12~55VDC
- Bult-in 1 Relay Output for Power Failure Warning
- IP30 Rugged Metal Case Design
- DIN-Rail and Wall Mount Support Included
- Operating Temperature Range: -40°C~65°C
- 5-Year Warranty
Included
- DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
- LNP-1204G-10G-SFP-24
- Quick Installation Guide
- RJ45 dust cover set
- Wall mounting bracket set with screws
Specifications
- Ambient Relative Humidity
- 5 to 95%, (non-condensing)
- Certifications
- FCC, CE, UL 61010-1, 61010-2-201
- Dimensions
- 54 x 142 x 99 mm
- EMI
- FCC Part 15 Subpart B Class A;CE EN55032/EN61000-6-4 Class A
- EMS
- CE EN55035/EN61000-6-2 Class A;IEC61000-4-2,3,4,5,6,8
- Ethernet Port
- 8*10/100/1000Tx (PSE: 30W/Port);Auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
- Flow Control
- IEEE 802.3x back pressure flow control
- Free Fall
- IEC60068-2-32
- Green
- RoHS Compliant
- Housing
- Metal, IP30 protection
- Input Voltage
- 12~55VDC, Redundant Input
- Jumbo Frame
- 9.6Kbytes
- LED Indicators
- System: Power 1, Power 2, Fault;Ethernet Ports: On-Link/Flash-data transmitting;PoE: On-connected to PD devices;SFP: Link/Active
- MAC Table Size
- 16K
- Max PoE Power Budget
- 90W @12VDC;180W @24VDC;240W @36-55VDC
- Mounting
- DIN-Rail mounting, Wall mounting
- Network Cable
- 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m);100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m);1000BaseTX: 4-pair UTP/STP Cat.5/5E cable EIA/TIA-568 100-ohm (100m)
- Operating Temperature
- -40°C to 65° C
- Overload Current Protection
- Present
- Packet Buffer
- 8Mbits
- PoE Pin Out
- V+, V+, V-, V-, for pin 1, 2, 3, 6 (End-span, Mode A)
- PoE Power Output
- 30W max. per PoE port
- Power Connection
- 1 removable 6-contact terminal block
- Power Reverse Polarity Protection
- Present
- Processing Type
- Store and Forward
- Protocols
- CSMA/CD
- Relay Contact
- 24VDC, 1A resistive
- SFP Port
- 2*1G SFP slots;2*10G SFP+ slots
- Shock
- IEC60068-2-27
- Standards
- IEEE 802.3 10Tx Ethernet;IEEE 802.3u 100Tx Fast Ethernet;IEEE 802.3ab 1000Tx Gigabit Ethernet;IEEE 802.3z 1000X Gigabit Fiber;IEEE 802.3ae 10 Gigabit Ethernet;IEEE 802.3af/at Power over Ethernet
- Storage Temperature
- -40°C ~ 85°C
- Switching Architecture
- Back-Plane (Switching Fabric): 60.0Gbps
- System Power Consumption
- 11.3W
- Transfer Rate
- 14,880pps for 10Base-T Ethernet;148,800pps for 100Base-T Fast Ethernet;1,488,000pps for 1000Base-T Gigabit Ethernet;14,880,000pps for 10 Gigabit Ethernet Port
- Vibration
- IEC60068-2-6
- Warranty
- 5 Years
- Weight
- Unit: 2.63 lbs.;Shipping: 3.24 lbs.
