LNP-1002G-10G-SFP-24 | 10-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch with 8*10/100/1000Tx (30W/Port) and 2*10G SFP+ Slots; 12~55VDC Power Input | Antaira

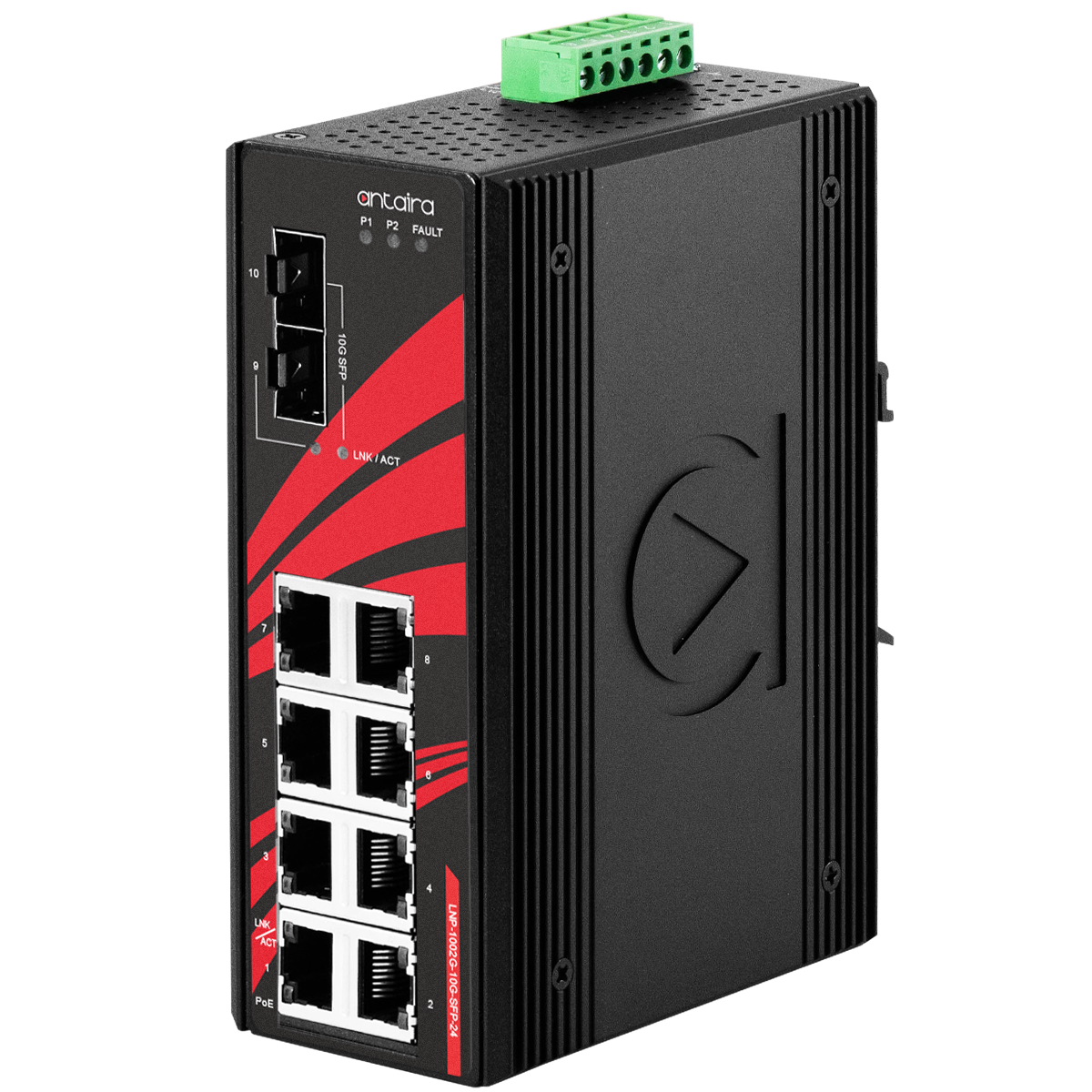

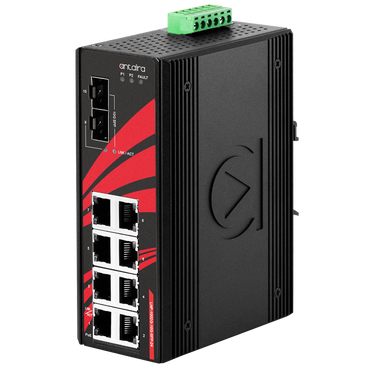

10-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch with 8*10/100/1000Tx (30W/Port) and 2*10G SFP+ Slots; 12~55VDC Power Input

Antaira Technologies’ LNP-1002G-10G-SFP-24 are industrial gigabit PoE+ unmanaged Ethernet switches featuring 8*10/100/1000Tx Gigabit Ethernet ports that support IEEE802.3at for a maximum of 30W/port. The LNP-1002G-10G-SFP-24 is designed with 2*10G SFP+ slots which provide options for long-distance fiber connections. The Ethernet switches are designed with high EFT and ESD protection and support standard operating temperature from -40° to 65°C.The LNP-1002G-10G-SFP-24 are IP30 rated and DIN-rail mountable. These Ethernet switches are designed to be powered with low voltage input (12~55VDC) while still providing the higher voltages required by the PoE standards. Additionally, these industrial PoE Ethernet switches provide connectivity for outdoor or harsh industrial automation application environments, such as security surveillance, ITS-traffic monitoring systems, oil/gas and mining, facility management for power/utility, water wastewater treatment plants, and lastly, automated production lines in factory automation.

Features

• Supports 8*10/100/1000Tx IEEE 802.3af/at Compliant with 30W/Port and 2*10G SFP+ Slots
• Store-and-Forward Switching Architecture
• 56Gbps Back-Plane (Switching Fabric)
• 16K MAC Address Table
• 9,216 bytes Jumbo Frame Support
• Redundant Power Input Design: 12~55VDC
• Built-in 1 Relay Output for Power Failure Warning
• IP30 Rugged Metal Case Design
• DIN-Rail and Wall Mount Support Included
• Operating Temperature Range: -40°C~65°C
• 5-Year Warranty

Included

• DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
• LNP-1002G-10G-SFP-24
• Quick Installation Guide
• RJ45 dust cover set
• Wall mounting bracket set with screws
