10-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch | with 8*10/100/1000Tx (30W/Port) and 2*10G SFP+ Slots

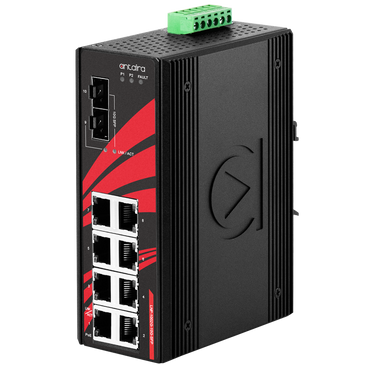

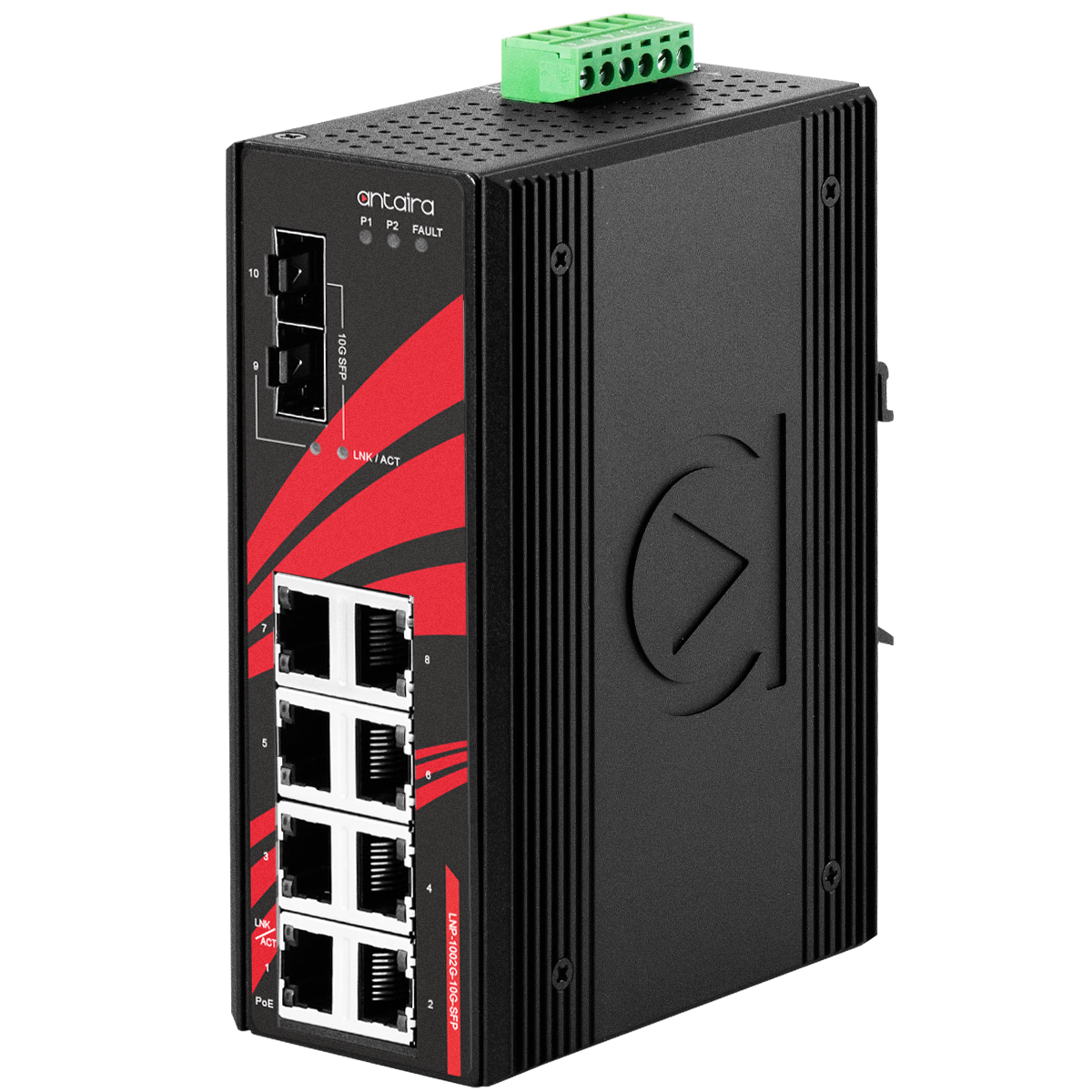

Antaira Technologies’ LNP-1002G-10G-SFP are industrial gigabit PoE+ unmanaged Ethernet switches featuring 8*10/100/1000Tx Gigabit Ethernet ports that support IEEE802.3at for a maximum of 30W/port. The LNP-1002G-10G-SFP is designed with 2*10G SFP+ slots that provide options for long-distance fiber connections. These Ethernet switches are designed with high EFT and ESD protection and support standard operating temperatures from -40° to 65°C.The LNP-1002G-10G-SFP are IP30 rated and DIN-rail mountable. They also provide Ethernet connectivity with PoE functions for outdoor or harsh industrial automation application environments, such as security surveillance, ITS-traffic monitoring systems, oil/gas and mining, facility management for power/utility, water wastewater treatment plants, and lastly, automated production lines in factory automation.

Features

• Supports 8*10/100/1000Tx IEEE 802.3af/at Compliant with 30W/Port and 2*10G SFP+ Slots
• Store-and-Forward Switching Architecture
• 56Gbps Back-Plane (Switching Fabric)
• 16K MAC Address Table
• 9,216 bytes Jumbo Frame Support
• Redundant Power Input Design: 48~55VDC
• Bult-in 1 Relay Output for Power Failure Warning
• IP30 Rugged Metal Case Design
• DIN-Rail and Wall Mount Support Included
• Operating Temperature Range: -40°C~65°C
• 5-Year Warranty

Included

• DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
• LNP-1002G-10G-SFP
• Quick Installation Guide
• RJ45 dust cover set
• Wall mounting bracket set with screws
