LNP-0800G-M12-67-24 | 8-Port Industrial M12 IP67 Waterproof Gigabit PoE+ Ethernet Switch | w/8*10/100/1000Tx (30W/Port) M12 Connector (X-Coded); -10° to 60°C | Antaira
8-Port Industrial M12 IP67 Waterproof Gigabit PoE+ Ethernet Switch, w/8*10/100/1000Tx (30W/Port) M12 Connector (X-Coded); -10° to 60°C

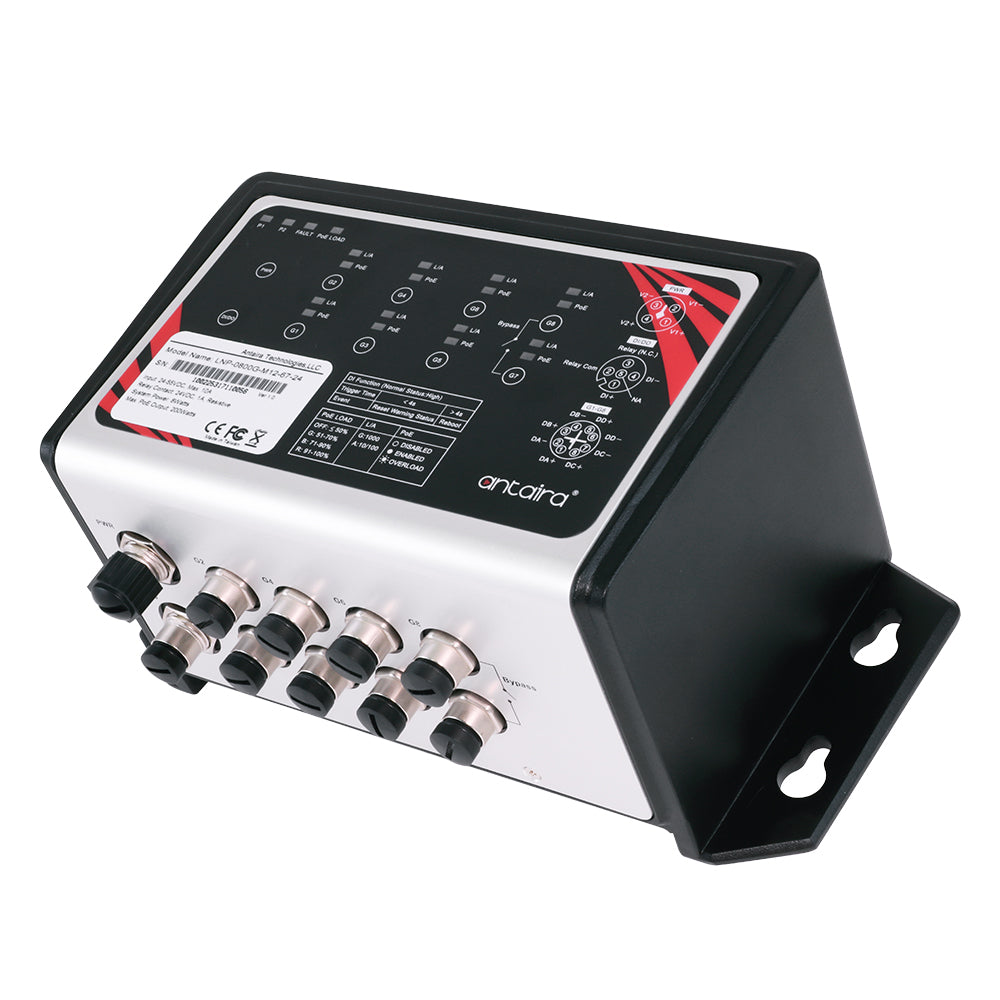

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNP-0800G-M12-67-24
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner.jpg?v=1711003870)
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner-mob.jpg?v=1711003953)
Documents and manuals
Antaira LNP-0800G-M12-67-24 Documents
Overview
Details for LNP-0800G-M12-67-24
8-Port Industrial M12 IP67 Waterproof Gigabit PoE+ Ethernet Switch | w/8*10/100/1000Tx (30W/Port) M12 Connector (X-Coded); -10° to 60°C
The LNP-0800G-M12-67-24 Ethernet switch provides 8 Gigabit Ethernet M12 ports with all 8 IEEE 802.3at compliant PoE (Power-over-Ethernet) ports. The switches are classified as power source equipment (PSE) and provide up to 30 watts of power per port.The LNP-0800G-M12-67-24 features a wide operating temperature of -10° to 60°C that allows it to be used in some of the harshest industrial environments.Moreover, its M12 connectors ensures a tight, robust connection, and guarantees reliable operation on applications that are subject to high vibration and shock.Features
- 8-Port 10/100/1000Tx Ethernet with IEEE 802.3at Compliant PoE+
- Redundant Power Inputs Design, 24~55VDC
- Built-in Power Booster Design for PoE/PoE+ Output
- Built-in Relay Output Warning for Power/PoE Failure
- Bypass Design for Daisy Chain Redundancy
- Support Digital Input/Digital Output
- IP67 Rugged Waterproof Metal Case Design
- M12 X-Coded Connector for Ensure Tight and Robust Connection
- Wall Mountable
- 5-Year Warranty
Included
- 1 - LNP-0800G-M12-67-24
- 1 - Quick Installation Guide
Specifications
- Ambient Relative Humidity
- 5% to 95%, (non-condensing)
- Bypass Protection
- Ethernet Port 7 and 8
- Certifications
- UL 61010-1, UL 61010-2-201
- Digital Input
- 1*Digital Input (DI): State 0: -30~8VDC / State 1: 10~30VDC, Max. input current: 8mA
- Dimensions
- 253.57 x 122 x 116.12 mm (W x H x D)
- EMI
- FCC Part 15 Subpart B Class A, CE EN 55032 Class A, EN 61000-6-4 Class A
- EMS
- CE EN 55024 Class A;EN 61000-6-2 Class A;IEC61000-4-2 (ESD);IEC61000-4-3 (RS);IEC61000-4-4 (EFT);IEC61000-4-5 (Surge);IEC61000-4-6 (CS);IEC61000-4-8 (Magnetic Field)
- Ethernet Port
- 8*10/100/1000BaseT(X) with 8*PoE+, 8-pin M12 X-coded female connectors, auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
- Flow Control
- IEEE 802.3x back pressure flow control
- Free Fall / Shock / Vibration
- IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6
- Green
- RoHS Compliant
- Housing
- Metal, IP67 protection
- Input Voltage
- 24~55VDC, Redundant Power Inputs
- Jumbo Frame
- 12.2K bytes
- LED Indicators
- Power 1, Power 2, Fault, PoE Load;Ethernet Ports: On- link / Flash- data transmitting;PoE: On- connected to PD devices
- MAC Table Size
- 8K
- Max. PoE Power Budget
- 200Watts
- Memory Buffer
- 4Mbits
- Mounting
- Wall mounting
- Operating Temperature
- -10°C ~ 60°C
- Overload Current Protection
- Present
- PoE Output Priority
- Port 1 to 8 (High priority to low priority)
- PoE Power Output
- 30W max. per PoE port
- Power Connection
- 1*M12, 4-pin T-coded, male connector
- Power Consumption
- 8Watts for system
- Processing Type
- Store and Forward
- Protocols
- CSMA/CD
- Relay Contact
- 24VDC, 1A resistive, M12 5-pin A-coded female connector
- Reverse Polarity Protection
- Present
- Standards
- IEEE 802.3 10BaseT Ethernet;IEEE 802.3u 100BaseTX Fast Ethernet;IEEE 802.3ab 1000BaseT;IEEE 802.3af/at Power over Ethernet
- Storage Temperature
- -40°C ~ 85°C
- Switching Architecture
- Back-Plane: Non-Blocking Switching Fabric
- Transfer Rate
- 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gigabit Ethernet Port
- Warranty
- 5 Years
- Weight
- Unit: 7.05 lbs.;Shipping: 8.82 lbs.
