LMP-1204G-SFP-T | 12-Port Industrial Gigabit PoE+ Light Layer 3 Managed Ethernet Switch | w/8*10/100/1000Tx (30W/Port) + 4*100/1000 SFP; EOT: -40 to 75C | Antaira

12-Port Industrial Gigabit PoE+ Light Layer 3 Managed Ethernet Switch | w/8*10/100/1000Tx (30W/Port) + 4*100/1000 SFP; EOT: -40 to 75C

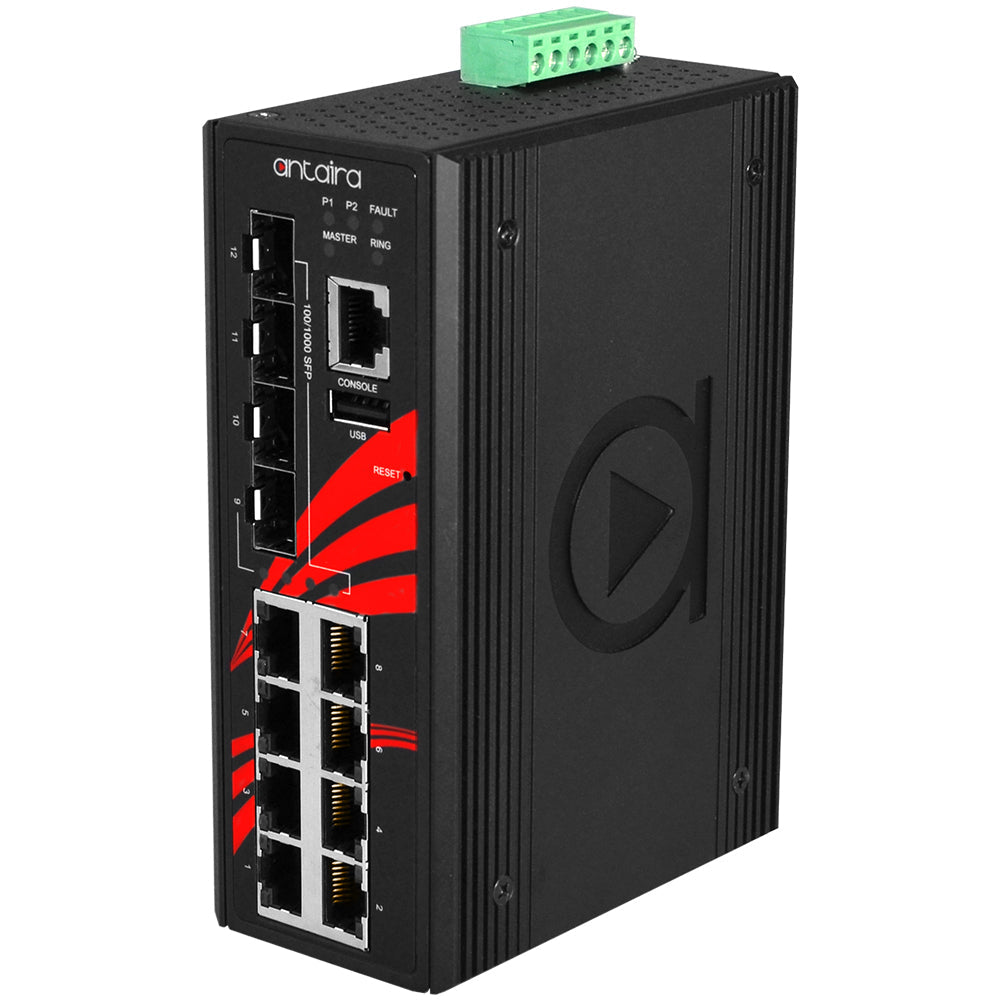

Antaira Technologies’ LMP-1204G-SFP-T is a 12-port industrial PoE+ Light Layer 3 managed Ethernet switch that is embedded with 8*10/100/1000Tx Ethernet ports that support IEEE802.3at/af for a maximum of 30W/port, and 4*100/1000Fx SFP fiber ports that support either Single or Multi-Mode modules. The LMP-1204G-SFP-T is a fully manageable Light Layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as, IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP, and 802.1X/ HTTPS/ SSH/ SSL increase determinism and improve network management for remote SCADA systems or control networks.The LMP-1204G-SFP-T is IP30 rated, DIN-rail mountable, and has an extended operating temperature range of -40°C to 75°C. It also provides high EFT and ESD protection for industrial networking applications, such as, power/utility, water/wastewater, oil/gas/mining, factory automation, security surveillance within transportation, ITS and any other outdoor or harsh environment.

Features

• Supports 8*10/100/1000Tx IEEE 802.3at/af Compliant with 30W/Port, and 4*100/1000Fx SFP Fiber Slots
• Network Redundancy: STP/RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
• Supports IPv4/IPv6, and DHCP Option 66/67/82
• Supports Modbus/TCP Protocol for Device Management and Monitoring
• Configuration: Web Console, Telnet, CLI Command
• PoE Ping Alarm Function for PoE Ports Power Recycle
• IGMP v1/v2 for Multicast Traffic Filtering
• QoS (IEEE802.1p/1Q), CoS/ToS to Increase Determinism
• IEEE802.1Q VLAN for Easy Network Planning
• Enhanced Network Security with IEEE802.1X, SNMP v1/v2c/v3, HTTPS, and SSH/SSL
• Auto Warning by Exception through E-mail, Relay Output
• Operating Temp –EOT: -40~75°C
• 5-Year Warranty

Included

• 1 - DC Cable - 18 AWG & DC Jack 5.5 x 2.1mm
• 1 - LMP-1204G-SFP-T
• 1 - RJ45 to DB9 Serial Console Cables
• 2 - Wall Mounting Brackets and Screws
