EPC | Analog Input to Pressure Output Interface Module | ACI
Analog Input (0-5VDC), Pressure Output (0-10PSI), Single Valve, 0.007" Bleed Orifice, (0-10V, 0-15V 0-20mA), (0-15PSI, 0-20PSI)
Documents and manuals
ACI EPC Documents
Overview
Details for EPC

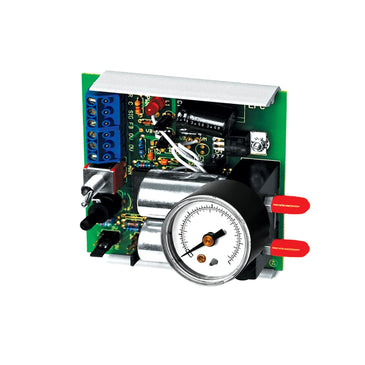

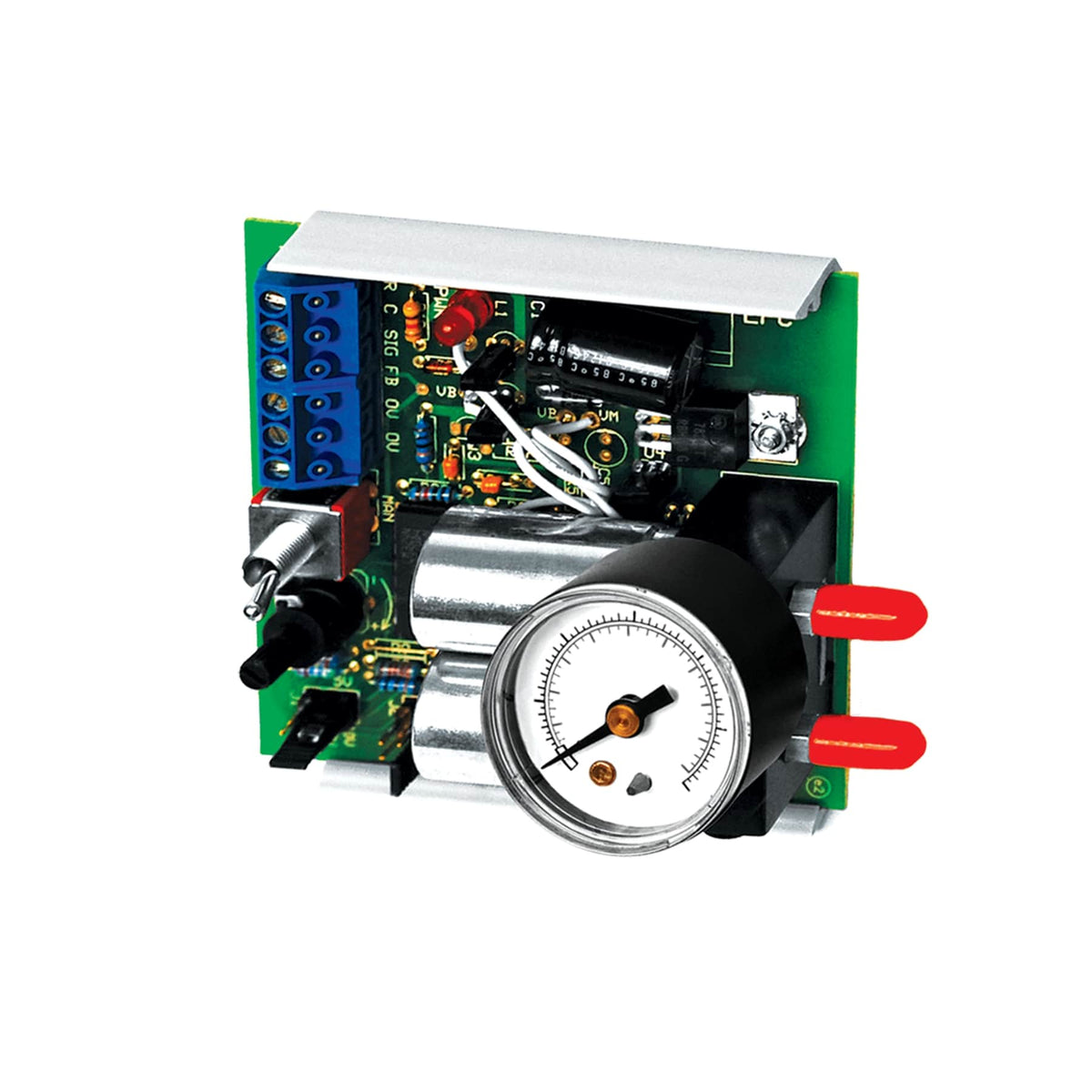

EPC | Analog Input to Pressure Output Interface Module
The EPC* is an electric to pneumatic transducer which converts an analog input signal to a proportional pneumatic output, modulating its control valve(s) to regulate the branch line pressure to the set point determined by the input signal. The EPC* offers four selectable input ranges of 0 to 5, 0 to 10, 0 to 15 VDC and 0 to 20 mA. Output pressure ranges are jumper shunt selectable for 0 to 10, 0 to 15 and 0 to 20 psig, and adjustable in all ranges. A 0-5 VDC feedback signal indicating the resultant branch line pressure, is also provided. EPC's are designed with electrical terminals on one end and pneumatic connections on the other, allowing for maximum convenience in wiring and tubing installation when panel mounted. The EPC is covered by ACI's Two (2) Year Limited Warranty.
- Three way mixing valve control
- Pilot positioner control
- Compressor staging
- Chiller loading
Specifications
Item Number | EPC |
Brand | ACI |
Interface | Analog Input to Pressure Output |
