Balco RTD, 1,000 Ohm @70 F , Outside Air, NEMA 4X Enclosure

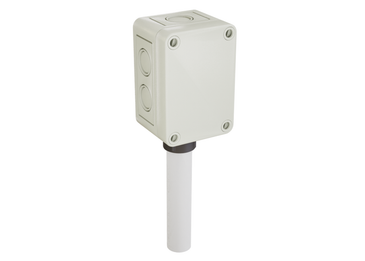

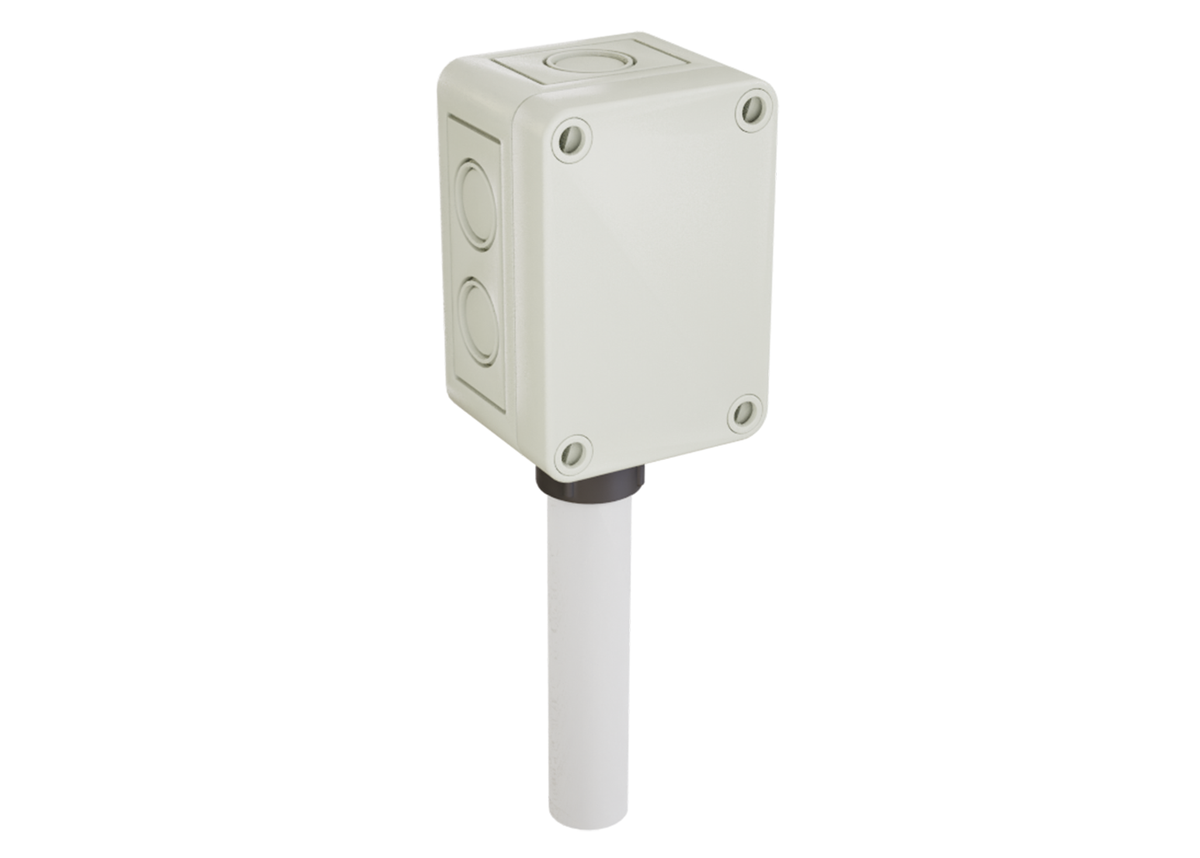

The ACI Balco Outside Air Series features a weather proof European Style Plastic enclosure with twist o cover and water tight cord grip. The sensing element contains two, 14 inch 22 AWG Etched Te‘on colored lead wires to differentiate the different sensor types. All sensors in this series are manufactured using ACIs proven double encapsulation process to eliminate the effects of moisture on the sensors as well as to increase the thermal response time using our high quality, thermally conductive epoxy. The outdoor air sensor is a single point sensor designed to be mounted under an eave or on the North side of a building in a shaded location with the sensing tube pointed downward to prevent any water or ice from settling in the sensing tube. Optional NEMA 4X -4X plastic or NEMA 3R rated -BB Aluminum enclosures and NIST Certificates are available as referenced in the ordering information on the back of the product data sheet. For Applications in which the sensor must be mounted in direct sunlight, please see the Sun Shield data sheet which will allow you to order a Temperature or Temperature/Humidity Combination sensor. Please contact ACI for more information regarding this sensor or to discuss your application in more detail. Other options may be available upon request.

Applications: Outside Air Temperature Sensing, Cold Storage Facilities, High Dew Point/Condensing Environments, Wash Down Environments

The ACI Balco Outside Air Series is covered by ACI's Five (5) Year Limited Warranty. The warranty can be found in the front of ACI's Sensors & Transmitters catalog, as well as on ACI's website, www.workaci.com.
