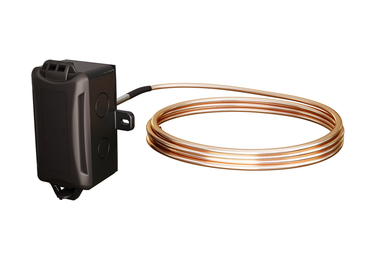

A/1K-2W-A-80'-PB | 100 Ohm Platinum RTD (Two Wires), Copper Averaging, 80', Plastic Enclosure | ACI
1, 000 Ohm (Two Wires) RTD, Copper Averaging, 80', Plastic Enclosure
Documents and manuals
ACI A/1K-2W-A-80'-PB Documents
Overview
Details for A/1K-2W-A-80'-PB
100 Ohm Platinum RTD (Two Wires), Copper Averaging, 80', Plastic Enclosure
The ACI Platinum Copper Averaging Series features a copper sensing element with Etched Te‘on colored lead wires to differentiate the different sensor types. The three-wire -3W option should be ordered when using with a 3-Wire temperature transmitter or sensor configuration on your building management system or PLC (Programmable Logic Controller). The purpose of the 3rd wire is to compensate for external lead wire resistance that will aect your sensor output. ACI recommends the use of 18 AWG lead wires to reduce the external lead wire resistance when using a Platinum RTD style sensor. The sensing element includes a continuous sensing element, which covers the entire length of the copper tube. This produces a better average temperature over the entire cross sectional area of your duct or unit when compared to a single point duct sensor or multi-point averaging sensor. These sensors are hermetically sealed to ensure that moisture and other contaminants wont aect the reliability of the sensing element. The copper averaging sensor includes a foam pad to seal the duct and dampen vibrations once installed. The sensor length should be determined by the total cross sectional area of your duct. Standard enclosure options include the -GD galvanized or -PB plastic enclosure with hinged cover. Optional NEMA/IP rated weather proof enclosures and NIST Certificates are available as referenced in the ordering grid. For higher accuracies, see the A/TTM1K (Matched) Averaging transmitter Product Data Sheet. Please contact ACI for more information regarding this sensor or if you would like to discuss your application in further detail.
Applications: Roof Top Units, Air Handlers, Monitoring Duct Supply/Discharge/Return/Mixed Air
The ACI Platinum Bendable Copper Averaging Series is covered by ACI's Five (5) Year Limited Warranty
Specifications
Item Number | A/1K-2W-A-80'-PB |
Brand | ACI |
