TOAM10 | Temp | Outdoor | Xmtr | 4-20mA | -58 to 122F | Veris

9-1/2 in 4 to 20 mA Transmitter Outdoor Temperature Sensor, -40 to 122 deg F

Brand: VerisSKU: TOAM10

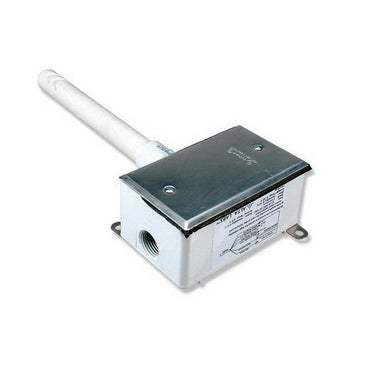

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TOAM10

Suggested Alternatives

ACI A/TT1K-O-4-BB Analog VDC or mA | Outdoor Outside Air Temperature Sensor | NEMA 3R (Bell Box) Housing Enclosure Box | Blackhawk Supply

A/TT1K-O-4-BB | Analog VDC or mA | Outdoor Outside Air Temperature Sensor | NEMA 3R (Bell Box) Housing Enclosure Box | ACI

Brand: ACI

SKU: A/TT1K-O-4-BB

$95.34

Jump to: Overview & Specifications Reviews

Overview Details for TOAM10

TO series outdoor temperature sensors feature a sleek, weather resistant design, and provide easy installation. The durable probe is encased in a radiation shield to reduce the effects of solar heating.

Sleek design - reduces solar heating, reliable and accurate
Flexible
Weather resistant junction box
2-wire, loop powered Class 2 temperature output
Solid-state, integrated circuit sensor

Specifications

Item Number	TOAM10
Brand	Veris
Application Zone	Outdoor
Application	Outdoor Reference Air
Brand	Veris
Dimension Depth	2.12" (54 mm)
Dimension Height	4" (102 mm)
Dimension Probe Diameter	0.7" (18 mm)
Dimension Probe Length	4.73" (102 mm)
Dimension Width	4" (102 mm)
Electrical Wiring Size	22 AWG (0.32 mm²)
Enclosure Material	ABS Plastic
IP Protection	IP65 (NEMA 4)
Measurement Type	Temperature
Model	TOAM10
Mounting	Outdoor
Operating Temperature	-13 - 221 °F (-25 - 105 °C)
Output Specifications	4 - 20 mA
Outputs	Analog output
Product Certification	CE
Product Type	Sensor
Range	TO
Sensor Configuration	Outdoor Air
Sensor	Temperature
Supply Voltage DC Range	12 - 30 VDC
Temperature Calibration Certificate	None
Temperature Measurement Accuracy	±0.9 °F (±0.5 °C)
Temperature Measurement Range	-40 - 122 °F (-40 - 50 °C)
Temperature Sensor Type	Temperature Transmitter
Warranty	5 years
