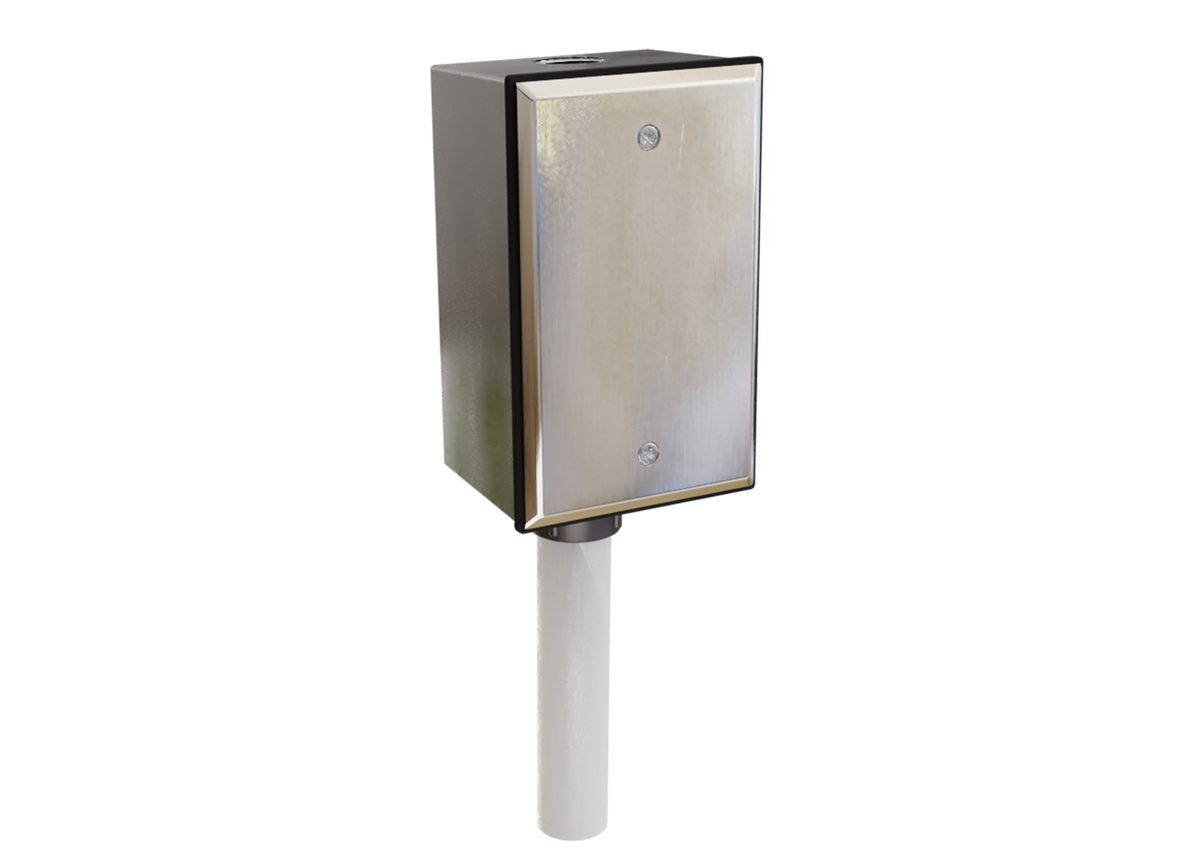

A/TT1K-O-4-BB | Analog VDC or mA | Outdoor Outside Air Temperature Sensor | NEMA 3R (Bell Box) Housing Enclosure Box | ACI
Transmitter w/ 1, 000 Ohm RTD, Outside Air, NEMA 3R Enclosure, 4-20mA Output
Documents and manuals
ACI A/TT1K-O-4-BB Documents
Overview
Details for A/TT1K-O-4-BB
A/TT1K-O-4-BB | Analog VDC or mA | Outdoor Outside Air Temperature Sensor | NEMA 3R (Bell Box) Housing Enclosure Box |
The ACI Transmitter Outside Air Series features a two-wire, 4 to 20 mA loop powered output with optional 3-Wire voltage output signals available. These units are designed to be mounted out of direct sunlight on the North side of a building or under an eave or intake hood. The Ruggedized epoxy coated transmitters -POT option should be used in extreme environments or in applications where you are looking for improved accuracy and reduced thermal drift due to the thermally conductive epoxy and more consistent board temperatures. Zero and Span adjustments are available for recalibration in the field when using NIST Certified equipment. All units include a Weather Proof or NEMA/IP rated enclosure and 1/2 knockouts or ½ NPT threaded hubs for use during installation. We recommend the use of 18 to 22 AWG shielded cable for all temperature transmitter installations to protect against the introduction of noise onto the signal lines. ACI does offer recalibration services for any transmitters sent back to us for a nominal fee. Applications: Outside Air Temperature Sensing, Economizer Control, Cold Storage Facilities or Warehouses, High Moisture Environments
The ACI Transmitter Outside Air Series is covered by ACI's Five (5) Year Limited Warranty. The warranty can be found in the front of ACI's Sensors & Transmitters catalog, as well as on ACI's website, www.workaci.com.
Specifications
Item Number | A/TT1K-O-4-BB |
Brand | ACI |
Element Type | mA or VDC output |
Sensing Element | Transmitter |
Sensor Configuration | Outdoor Air |
Sensor Housing | NEMA 3R (Bell Box) |
Sensor | Temperature |
