H600 | Mini Split-Core | Fixed | Range .15-200AAC | N.O. | 1A@30VAC/DC | Veris
Hawkeye 0.15 to 200 A Fixed Trip Point Current Switch, Split-Core

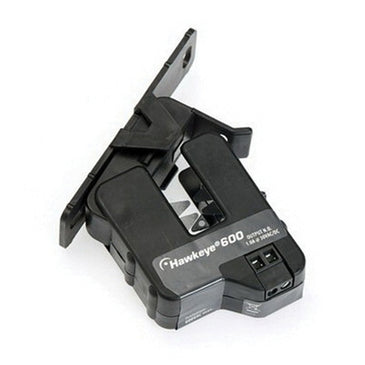

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to H600
Suggested Alternatives
A/MSCS | Current Switch (Split Core) | N/O 0-150A | Fixed Trip Point: < 0.55A | ACI$27.68
Brand: ACI
SKU: A/MSCS
RIBXGTF | Enclosed Split-Core AC Sensor, .35-150Amp, fixed, terminals | Functional Devices$25.69
Brand: Functional Devices
SKU: RIBXGTFprev
next
Overview Details for H600
Hawkeye 600 on/off current switches provide a cost-effective solution for monitoring status on unit vents, exhaust fans, recirculation pumps, and other fixed loads where belt loss is not a concern. Veris has applied new technology to the H600 model to achieve impressive improvement in turn-on levels. The Hawkeye H600 have the lowest turn-on current in the industry at a mere 0.15 A.
- More reliable for status than relays across auxiliary contacts
- Ideal for direct-drive units, unit vents, fan coil units, exhaust fans, and other fixed loads
- Low setpoint - minimum trip point as low as 0.15 A, avoids the need for multiple wraps of the conductor through the sensor even on loads as small as 1/5 hp
- Removable mounting bracket provides installation flexibility
- Quick installation - split-core for fast retrofit installation
- Induced from monitored current sensor power
Specifications
| Item Number | H600 |
| Brand | Veris |
| Application | Building Automation Systems |
| Current Core | Split Core |
| Current Measurement Range | 0.15 - 200 A |
| Current Sensor type | Current Switch; AC |
| Electrical Wiring Size | 24 - 14 AWG (0.2 - 2.1 mm²) |
| Measurement Type | AC Current |
| Model | H600 |
| Monitored Frequency Range | 50 - 60 Hz |
| Monitored Wire Size | 0.5" (12 mm) |
| Mounting | Split Core |
| Operating Humidity | 10 - 90% RH; non-condensing |
| Operating Temperature | 5 - 122 °F (-15 - 50 °C) |
| Output Specifications | N.O. 1 A @ 30 VAC/DC |
| Outputs | Switch output |
| Product Certification | UL | CE |
| Product Type | Sensor |
| Range | HX00 Series |
| Relay Coil Voltage | None |
| Relay Contact Ratings | None |
| Relay Poles/Throw | None |
| Sensor | Current Switch (Hawkeye) |
| Setpoint | Fixed |
| Warranty | 5 years |
