C-2300 | Fixed, 0.35-200A, split core | Senva Sensors

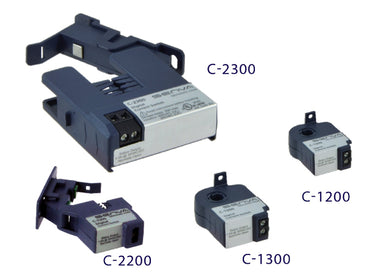

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to C-2300

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Senva Sensors C-2300 Documents

Datasheet More Info

Overview

Details for C-2300

Fixed, 0.35-200A, split core

Description

PreSet™ allows for matching sensor set-point to the motor nameplate,
eliminating the need to calibrate in energized enclosures and reducing
installation time . It will detect motor undercurrent conditions such as belt
loss, coupling shear, and mechanical failure on fans and pumps.

Application

Detecting belt loss, coupling shear, and mechanical failure on fans and pumps
Monitoring status of industrial processes
Monitoring status of critical motors

Specifications

Item Number	C-2300
Brand	Senva Sensors
Current Core	Split Core
RANGE(A)	0.35-200A
OUTPUT	N.O. 1A@30VAC/DC, FET
CORE	Split
COMMAND RELAY	Optional
PRIMARY APPICATION	Go/No
SEC APPLICATION	Proof of Flow
LED	No
SETPOINT TYPE	Fixed
UL	Yes
CE	Yes
RoHS	Yes
7 Year Warranty	Yes
Tariff Code	9030.33
Country of Origin	U.S.A.
ECCN	EAR99
UNSPSC Code	41111928
