007-BF5-J | Circulator Pump | Bronze | 1/25 HP | 115V | Single Phase | 0.71A | 3250 RPM | Flanged | 23 GPM | 10ft Max Head | 125 PSI Max Press. | Series 007 | Taco (OBSOLETE)
Documents and manuals
Taco 007-BF5-J Documents
Overview
Details for 007-BF5-J
Circulator Pump | Bronze | 1/25 HP | 115V | Single Phase | 0.71A | 3250 RPM | Flanged | 23 GPM | 10ft Max Head | 125 PSI Max Press. | Series 007
Rugged, Versatile, Quick and Easy to Install
With their self-lubricating design and no mechanical seal, Taco 00 ® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ® Series Cartridge Circulator and 00 IFCm® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.
Taco 00 IFC ® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.
Performance Data
Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union
Features
- Standard High Capacity Output
- Compact Design
- Quiet, Efficient Operation
- Direct Drive–Low Power Consumption
- Unique Replaceable Cartridge Design
- Field Serviceable
- Self lubricating
- No Mechanical Seal
- Unmatched Reliability–Maintenance Free
- Optional Integral Flow Check (IFC®)
- Prevents Gravity Flow/Reverse Flow
- Eliminates Separate In-Line Flow Check
- Reduces Installed Cost
- Improves System Performance
Applications
- Hydronic Heating System
- Hydro-Air Fan Coils
- Zoning with Circulators
- Chilled Water Cooling
- Domestic Water Systems
- Radiant Heating Systems
Note: Full flange-to-flange three-year warranty on all 00 Series circulators.
Overview

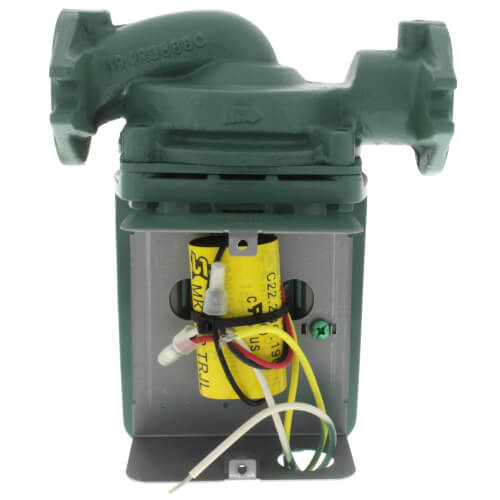

The Taco 007 Cartridge Circulator is designed for quiet operation in a wide range of applications. Unique, replaceable cartridge contains all of the moving parts so you can service it easily instead of replacing the entire unit.
Product Features
- Standard High Capacity Output Compact Design
- Quiet, Efficient Operation
- Unique Replaceable Cartridge Design-Field Serviceable
- Direct Drive-Low Power Consumption
- Self-Lubricating
- No Mechanical Seal
- Unmatched Reliability --Maintenance Free
- Universal Flange-to-Flange Dimensions
Specifications
| Item Number | 007-BF5-J |
| Brand | Taco |
| Amperage | 0.76 |
| Amps | 0.71A |
| Application | Heating |
| Connection Type | Flanged x Flanged |
| Connection | Flanged |
| Flow Range (GPM) | 0-23 |
| Head Range (ft.) | 0-10 |
| Hertz | 60 |
| Horse Power | 1/25 |
| HP | 1/25 HP |
| Material | Bronze |
| Max Flow (GPM) | 23 |
| Max Flow | 23 GPM |
| Max Head (Ft) | 10 |
| Max Head Pressure | 10ft |
| Max Pressue | 125 PSI |
| Max Pressure (PSI) | 125 |
| Optional | |
| Phase | 1 |
| Phase | Single Phase |
| Pump Type | Circulator Pump |
| RPM | 3250 |
| RPM | 3250 RPM |
| Series | Series 007 |
| Temperature Range (F) | 40°F to 230°F |
| Type | Pump |
| Voltage | 115v |
