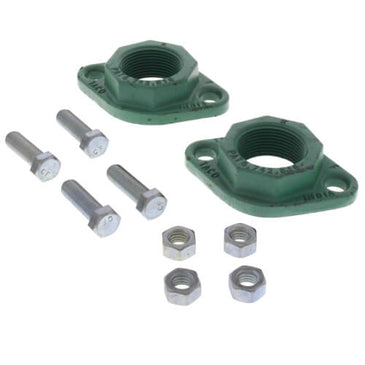

110-253F | FREEDOM FLANGE SET | 1-1/4" NPT | IRON | Taco

Brand: TacoSKU: 110-253F

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 110-253F

Jump to: Overview & Specifications Reviews

Overview Details for 110-253F

FREEDOM FLANGE SET | 1-1/4" NPT | IRON

Freedom Flange

Taco Freedom Flange^® fits all “00” Circulators and free you from scraped knuckles and jury rigged tools. Easy-On/Easy-Off and sweat designs, and two-piece bronze shut-off valves let you make quick work of pump installation and maintenance.

Lead-Free Shut-Off Freedom Flange^®

Taco Lead-Free Shut-Off Freedom Flange combines a full-port shut-off ball valve and companion flange to isolate system circulators for easy removal and service, without draining the system. Simplify your next circulator installation while saving material and labor costs. Solid brass uni-body construction, available in ½”–1½” Press, NPT or Sweat connections. The swivel-flange provides easier installation allows you to position the pump and lever handle in the most convenient location.

Performance Data

Freedom Flange^®
Max. Water Pressure: 150 PSI
Max. Operating Temp.: 240°F (115C°)
Available Sizes: ¾”-3″ NPT, ½”-1½” Sweat

Lead-Free Shutoff Freedom Flange^®

Max. Water Pressure: 150 PSI
Max. Operating Temp.: 240°F (115C°)
Available Sizes: ¾”-1½” Press, ½”-1½” NPT, ½”-1½” Sweat

Features

Freedom Flange^®

Freedom Flange Fits All “00” Circulators
Available in ductile iron or stainless steel NPT, bronze Sweat
Unique Hex Design Provides Easy-On, Easy-Off Installation with a Standard Adjustable Wrench

Lead-Free Shutoff Freedom Flange^®

Easy ¼-Turn Open/Close operation
Positive Shut-Off, Leak Free Design
Swivel-Flange Allows 360˚ Rotation
Solid Lead-Free Brass Construction
Chrome/Brass Valve Ball
High Quality Teflon^® Seats
Full Port Ball Valve for UnrestrictedFlow
Includes Bolts and Nuts

Applications

Domestic Hot Water RecirculationSystems
Hydronic Heating & Chilled Water Cooling
Solar / Geothermal Systems
Radiant Heating Systems

Note: Not Compatible with 0012 Series Pumps

Features:

Fits All Taco Circulators Easy-On, East-Off with an Adjustable Wrench
Cast Iron
Available in 3/4" - 2"

Specifications

Item Number	110-253F
Brand	Taco
Application	Heating
Connection Size	1-1/4"
Connection Type	Threaded
Fitting	NPT
Material	Cast Iron
Material	Iron
Series	Freedom Flanges
Size	1-1/4"
Thread Size	1-1/4"
Thread Type	Female
Type	Accessory
Type	Pump Flanges
Used With	1400-45 Pumps
