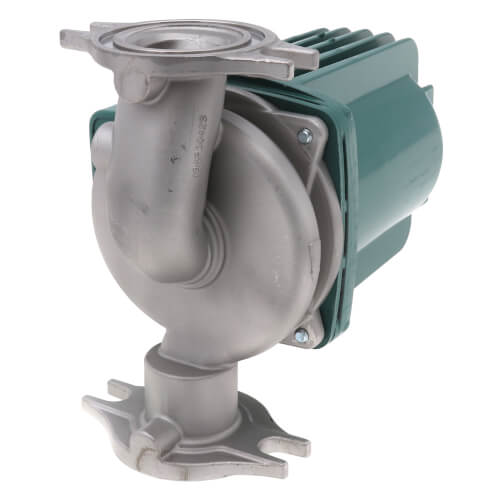

0011-SF4-IFC | Circulator Pump | Stainless Steel | 1/8 HP | 115V | Single Phase | 1.76A | 3250 RPM | Flanged | 31 GPM | 31ft Max Head | 125 PSI Max Press. | Integral Flow Check | Series 0011 | Taco

Circulator Pump | Stainless Steel | 1/8 HP | 115V | Single Phase | 1.76A | 3250 RPM | Flanged | 31 GPM | 31ft Max Head | 125 PSI Max Press. | Integral Flow Check | Series 0011

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ^® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ^® Series Cartridge Circulator and 00 IFCm^® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ^® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ^® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Features

Applications

Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

The 0011-IFC with an Integral Flow Check is designed to reduce installation costs when zoning with 00® circulators on large residential / light commercial high head / medium flow applications such as hydronic or radiant heating, hydro-air fan coils, indirect water heaters ordomestic water recirculation systems. By locating the removable, spring-loaded IFC inside the pump casing, a separate in-line flow check is eliminated, reducing installation costs. The reduced pressure drop of the IFC increases the 0011 flow performance over in-line checkvalves. Both the IFC and cartridge are easily accessed for service instead of replacing the entire unit. Taco's patented Priority Zoning circulator with built-in transformer, relay, priority switch and IFC in one complete, compact package to make it ideal for zoning.

Features:

• Integral Flow Check: Prevents gravity flow, Eliminates separate in-line flow check, Reduces installed cost, Improves system performance, Easy to service
• Unique replaceable cartridge-field serviceable
• Unmatched reliability-maintenance free
• Quiet, efficient operation
• Direct drive - Low power consumption
• Self lubricating, No mechanical seal
• Standard high capacity output - Compact design
• Wide range of applications
• Flanged connections

Replacement Parts List:
Casing O-Ring: 009-028RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 009-018RP
Cartridge Assembly Complete: 0011-010RP
Valve Assembly Trans/Relay: 0012-021RP
