Documents: 008-IQSF6-IFC

Datasheet More Info

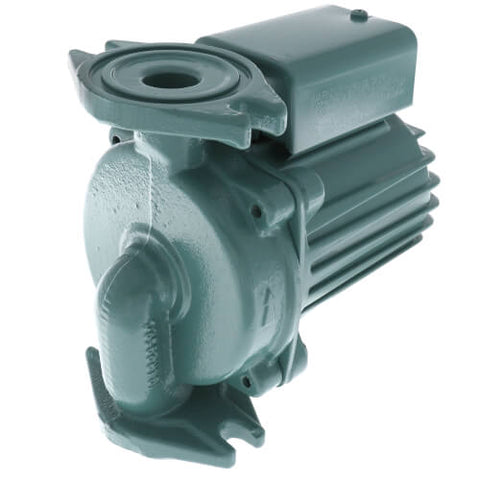

008-IQSF6-IFC | Circulator Pump | Stainless Steel | 1/25 HP | 115V | Single Phase | 3250 RPM | Flanged | 13 GPM | 8.5ft Max Head | 125 PSI Max Press. | Integral Flow Check | Series 008 | Taco

Brand: TacoSKU: 008-IQSF6-IFC

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 008-IQSF6-IFC

Overview & Specifications Reviews Parts & Accessories

Overview Details for 008-IQSF6-IFC

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ^® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ^® Series Cartridge Circulator and 00 IFCm^® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ^® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ^® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union

Features

Standard High Capacity Output
- Compact Design
Quiet, Efficient Operation
Direct Drive–Low Power Consumption
Unique Replaceable Cartridge Design
- Field Serviceable
Self lubricating
No Mechanical Seal
Unmatched Reliability–Maintenance Free
Optional Integral Flow Check (IFC®)
- Prevents Gravity Flow/Reverse Flow
- Eliminates Separate In-Line Flow Check
- Reduces Installed Cost
- Improves System Performance

Applications

Hydronic Heating System
Hydro-Air Fan Coils
Zoning with Circulators
Chilled Water Cooling
Domestic Water Systems
Radiant Heating Systems

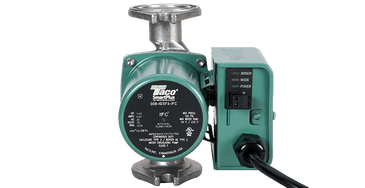

The Taco SmartPlus circulator is designed to deliver instant hotwater comfort and convenience while conserving water andenergy. By recirculating "cooled" hot water back to the waterheater, the wait for hot water is decreased to seconds. TheSmartPlus is designed for use with dedicated return line systems. Product Features

Automatic operation
Vacation & energy mode
Energy efficient
LED display
Remote sensor included
6' line cord
Field replaceable cartridge
Integrated flow check (IFC)
3 Year Warranty

Specifications

Item Number	008-IQSF6-IFC
Brand	Taco
Amperage	0.84
Amps
Application	Heating
Connection Type	Flanged x Flanged
Connection	Flanged
Flow Range (GPM)	0-13
Head Range (ft.)	0-14.5
Hertz	60
Horse Power	1/25
HP	1/25 HP
Material	Stainless Steel
Max Flow	13 GPM
Max Head (Ft)	14.5
Max Head Pressure	8.5ft
Max Pressue	125 PSI
Max Pressure (PSI)	125
Optional
Optional	Integral Flow Check
Phase	1
Phase	Single Phase
Pump Type	Circulator Pump
RPM	3250
RPM	3250 RPM
Series	Series 008
Temperature Range (F)	40°F to 230°F
Type	Pump
Voltage	115v
Warranty	3 Year
