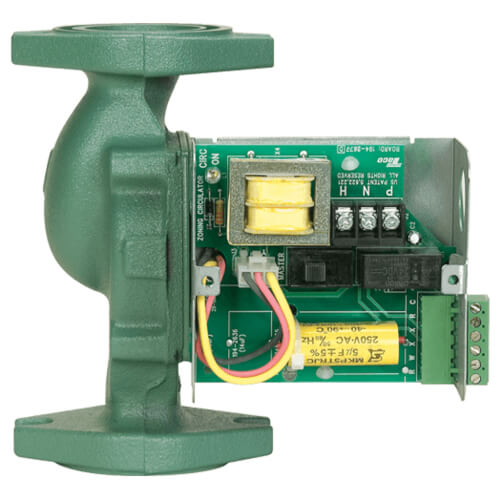

005-ZF2-2IFC | Circulator Pump | Cast Iron | 1/35 HP | 115V | Single Phase | 0.54A | 3250 RPM | Flanged | 19 GPM | 9ft Max Head | 125 PSI Max Press. | Integral Flow Check | Series 005 | Taco

Brand: TacoSKU: 005-ZF2-2IFC

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 005-ZF2-2IFC

Overview & Specifications Reviews Parts & Accessories

Overview Details for 005-ZF2-2IFC

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ^® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ^® Series Cartridge Circulator and 00 IFCm^® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ^® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ^® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union

Features

Standard High Capacity Output
- Compact Design
Quiet, Efficient Operation
Direct Drive–Low Power Consumption
Unique Replaceable Cartridge Design
- Field Serviceable
Self lubricating
No Mechanical Seal
Unmatched Reliability–Maintenance Free
Optional Integral Flow Check (IFC®)
- Prevents Gravity Flow/Reverse Flow
- Eliminates Separate In-Line Flow Check
- Reduces Installed Cost
- Improves System Performance

Applications

Hydronic Heating System
Hydro-Air Fan Coils
Zoning with Circulators
Chilled Water Cooling
Domestic Water Systems
Radiant Heating Systems

Features

Universal Thermostat Compatibility, Thermostat Ready
Can be used in conjunction with other circulators or zone valves
Available in a full range of sizes from 003-0014
00 Reliability
Snap-In PC Board
Low and High Voltage Strips
Removable low-voltage terminal strip simplifies wiring installation
LED Power Light
UL and CSA Listed
100% Factory Tested
Made in USA

Typical Applications

Indirect Hot Water Heaters
Adding Zones
Zoning with Circulators
Prioritizing Under-Sized Zones

Replacement Parts List:
Casing O-Ring: 008-005RP
Flange Gasket Set: 007-007RP
Cartridge Assembly Complete: 005-019RP
Valve Assembly Trans/Relay: 0010-025RP

Specifications

Item Number	005-ZF2-2IFC
Brand	Taco
Amperage	0.52
Amps	0.54A
Application	Heating
Connection Type	Flanged x Flanged
Connection	Flanged
Flow Range (GPM)	0-13.5
Head Range (ft.)	0-7.5
Hertz	60
Horse Power	1/35
HP	1/35 HP
Material	Cast Iron
Max Flow (GPM)	13.5
Max Flow	19 GPM
Max Head (Ft)	7.5
Max Head Pressure	9ft
Max Pressue	125 PSI
Max Pressure (PSI)	125
Optional
Optional	Integral Flow Check
Phase	1
Phase	Single Phase
Pump Type	Circulator Pump
RPM	3250
RPM	3250 RPM
Series	Series 005
Temperature Range (F)	40°F to 230°F
Type	Pump
Voltage	115v
