008-IQSF6 | Circulator Pump | Stainless Steel | 1/25 HP | 115V | Single Phase | 0.84A | 3250 RPM | Flanged | 15 GPM | 15ft Max Head | 125 PSI Max Press. | Series 008 | Taco
Overview Details for 008-IQSF6
Circulator Pump | Stainless Steel | 1/25 HP | 115V | Single Phase | 0.84A | 3250 RPM | Flanged | 15 GPM | 15ft Max Head | 125 PSI Max Press. | Series 008
Features and Benefits
Vacation Function — After 36 hours of inactivity the
pump will automatically TURN OFF and remain off until
hot water usage is detected again.
Exercise Function — While in vacation mode the
pump will cycle on once every 7 days and run for
10 seconds to prevent any corrosion or scale buildup.
Factory installed 6’ line cord
Remote Sensor Included
Optional IFC® (Integral Flow Check)
Quiet, Efficient Operation
Unique Replaceable Cartridge
Design-Field Serviceable
Self-Lubricating
No Mechanical Seal
Unmatched Reliability-Maintenance Free
Water Conservation — The average residence can
save up to 12,000 gallons of water per year-water that
normally goes down the drain while waiting for hot
water.
Comfort and Convenience — Once the pump is set to
the desired operating mode it never needs to be set again.
Hot water is always available in seconds.
Efficiency — Smart/Pulse operation maximizes hot
water comfort and energy savings
Reliability — SmartPlus provides quiet operation and
industry leading electronics with Taco 003, 006 & 008
circulators for proven performance & dependability.
3 Year Warranty
LED Indicator lights
- GREEN — Power
- YELLOW — Mode
- RED — Sensor Connection

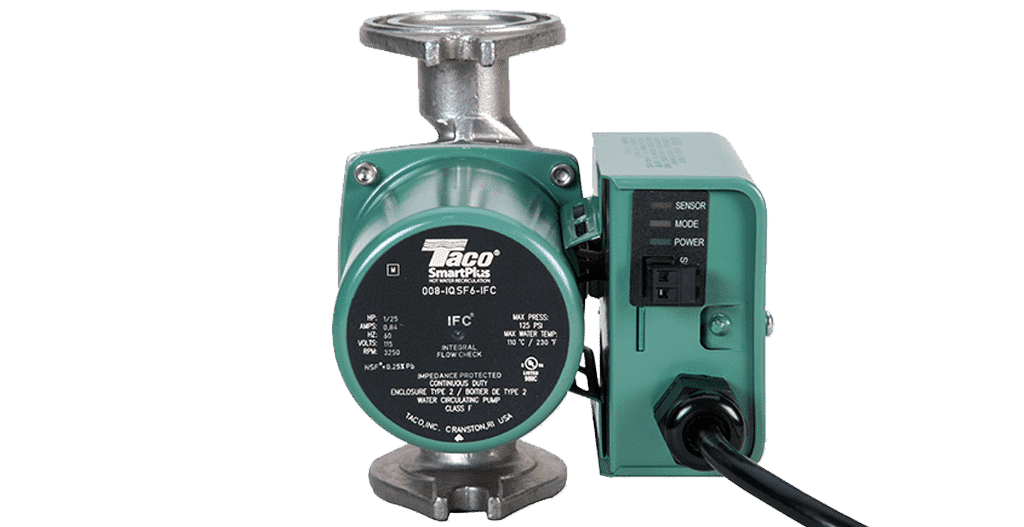

The Taco SmartPlus circulator is designed to deliver instant hotwater comfort and convenience while conserving water andenergy. By recirculating "cooled" hot water back to the waterheater, the wait for hot water is decreased to seconds. TheSmartPlus is designed for use with dedicated return line systems. Features:
- Pulse mode: when set for pulse mode, the SmartPlus circulator will run for 150 seconds every 10 minutes to maintain hot water at all fixtures
- Smart mode when set for smart mode, the circulator will run in pulse mode as above for the first 7 days; during the first 7 days, the SmartPlus will monitor and record the homes hot water usage pattern; for the next 7 days, the SmartPlus will use the preceding week’s usage pattern to cycle the pump; this process will be repeated every 7 days
- Vacation function - after 36 hours of inactivity the pump will automatically turn off and remain off until hot water usage is detected again
- Exercise function - while in vacation mode the pump will cycle on once every 7 days and run for 10 seconds to prevent any corrosion or scale buildup
- Unique replaceable cartridge design-field serviceable
- Self-lubricating
- No mechanical seal
- Unmatched reliability-maintenance free
Specifications
Item Number | 008-IQSF6 |
Brand | Taco |
Amperage | 0.84 |
Amps | 0.84A |
Application | Heating |
Connection Type | Flanged x Flanged |
Connection | Flanged |
Flow Range (GPM) | 0-15 |
Head Range (ft.) | 0-16 |
Hertz | 60 |
Horse Power | 1/25 |
HP | 1/25 HP |
Material | Stainless Steel |
Max Flow (GPM) | 15 |
Max Flow | 15 GPM |
Max Head (Ft) | 16 |
Max Head Pressure | 15ft |
Max Pressue | 125 PSI |
Max Pressure (PSI) | 125 |
Optional | |
Phase | 1 |
Phase | Single Phase |
Pump Type | Circulator Pump |
RPM | 3250 |
RPM | 3250 RPM |
Series | Series 008 |
Temperature Range (F) | 40°F to 230°F |
Type | Pump |
Voltage | 115v |
Warranty | 3 Year |
