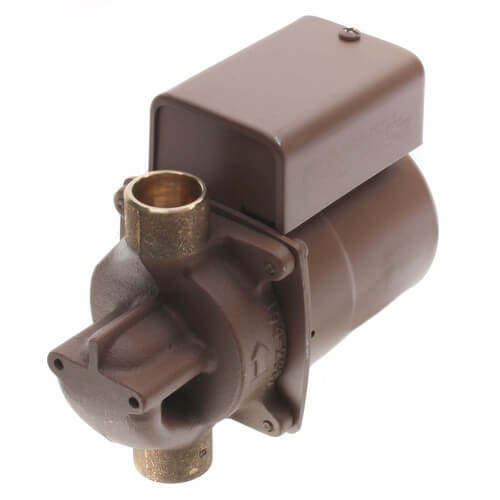

006-BC7-IFC | Circulator Pump | Bronze | 1/40 HP | 115V | Single Phase | 0.52A | 3250 RPM | Sweat (3/4") | 9 GPM | 8.5ft Max Head | 125 PSI Max Press. | Integral Flow Check | Series 006 | Taco

Circulator Pump | Bronze | 1/40 HP | 115V | Single Phase | 0.52A | 3250 RPM | Sweat (3/4") | 9 GPM | 8.5ft Max Head | 125 PSI Max Press. | Integral Flow Check | Series 006

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ^® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ^® Series Cartridge Circulator and 00 IFCm^® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ^® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ^® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Features

Applications

Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

Note: This item abides by the 2014 low lead requirements.

Overview
The compact Taco 006-IFC® with an Integral Flow Check is designed for circulating hot and chilled fresh waterin open and closed loop applications. With its patented location at the impeller inlet, the IFC eliminates theadded installation costs of a separate in-line flow check, simplifies piping, and improves system performance.The unique, replaceable cartridge contains all moving parts and is easy to service instead of replacing the entireunit. It's self-lubricating, maintenance free design provides quiet, efficient operation and unmatched reliability.

Features

• Integral Flow Check (IFC®) Patent# 5,664,939
  • Prevents gravity flow / reverse flow
  • Eliminates separate in-line flow check
  • Reduces installed cost
  • Improves system performance
  • Easy to service
• Unique replaceable cartridge-field serviceable
• Unmatched reliability-Maintenance free
• Quiet, efficient operation
• Self lubricating, No mechanical seal
• Wide Range of applications
• Bronze Construction - 3/4" Sweat

Application

• Domestic Hot Water Recirculation
• Water Source Heat Pumps
• Hydro-Air Fan Coils
• Potable Water Systems
• Heat Recovery Units

Replacement Parts List:
Casing O-Ring: 007-003RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 005-020RP
Valve Assembly Trans/Relay: 006-047RP
