0013-SF3-IFC | Circulator Pump | Stainless Steel | 1/6 HP | 115V | Single Phase | 2A | 3250 RPM | Flanged | 34 GPM | 33ft Max Head | 125 PSI Max Press. | Integral Flow Check | Series 0013 | Taco

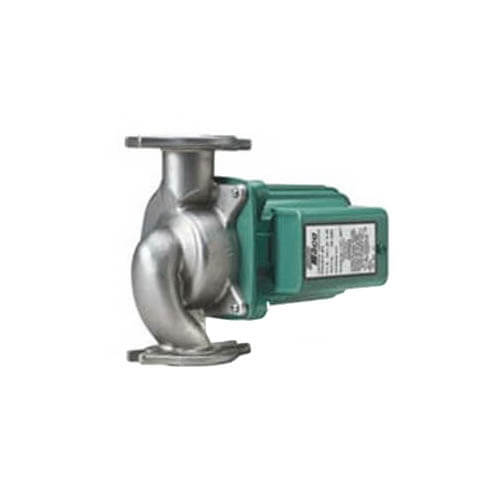

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 0013-SF3-IFC

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Taco 0013-SF3-IFC Documents

Datasheet Installation Instructions More Info

Overview

Details for 0013-SF3-IFC

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ^® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ^® Series Cartridge Circulator and 00 IFCm^® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ^® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ^® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union

Features

Standard High Capacity Output
- Compact Design
Quiet, Efficient Operation
Direct Drive–Low Power Consumption
Unique Replaceable Cartridge Design
- Field Serviceable
Self lubricating
No Mechanical Seal
Unmatched Reliability–Maintenance Free
Optional Integral Flow Check (IFC®)
- Prevents Gravity Flow/Reverse Flow
- Eliminates Separate In-Line Flow Check
- Reduces Installed Cost
- Improves System Performance

Applications

Hydronic Heating System
Hydro-Air Fan Coils
Zoning with Circulators
Chilled Water Cooling
Domestic Water Systems
Radiant Heating Systems

Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

The 0013-IFC with an Integral Flow Check is designed to reduce installation costs when zoning with 00®circulators on high head / high flow hydronic or radiant heating, hydro-air fan coils or heat exchangersand geothermal systems. By locating the removable, spring-loaded IFC inside the pump casing, aseparate in-line flow check is eliminated, reducing installation costs. The reduced pressure drop of theIFC, increases the 0013 flow performance over in-line check valves. Both the IFC and cartridge areeasily accessed for service instead of replacing the entire unit.

Replacement Parts List:
Casing O-Ring: 009-028RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 0013-004RP
Cartridge Assembly Complete: 0013-008RP
Valve Assembly Trans/Relay: 0012-021RP

Features:

Integral Flow Check: Prevents gravity flow, Eliminates separate in-line flow check, Reduces installed cost, Improves system performance, Easy to service
Unique replaceable cartridge-field serviceable
Unmatched reliability-maintenance free
Quiet, efficient operation
Direct drive - Low power consumption
Self lubricating, No mechanical seal
Standard high capacity output - Compact design
Wide range of applications
Flanged connections

Specifications

Item Number	0013-SF3-IFC
Brand	Taco
Amperage	2
Amps	2A
Application	Heating
Connection Type	Flanged x Flanged
Connection	Flanged
Flow Range (GPM)	0-33
Head Range (ft.)	0-32
Hertz	60
Horse Power	1/6
HP	1/6 HP
Material	Stainless Steel
Max Flow (GPM)	33
Max Flow	34 GPM
Max Head (Ft)	32
Max Head Pressure	33ft
Max Pressue	125 PSI
Max Pressure (PSI)	125
Optional
Optional	Integral Flow Check
Phase	1
Phase	Single Phase
Pump Type	Circulator Pump
RPM	3250
RPM	3250 RPM
Series	Series 0013
Temperature Range (F)	40°F to 230°F
Type	Pump
Voltage	115v
Warranty	3 Year
