007-F5-7IFC | Circulator Pump | Cast Iron | 1/25 HP | 115V | Single Phase | 0.71A | 3250 RPM | Flanged | 23 GPM | 10ft Max Head | 125 PSI Max Press. | Series 007 | Taco

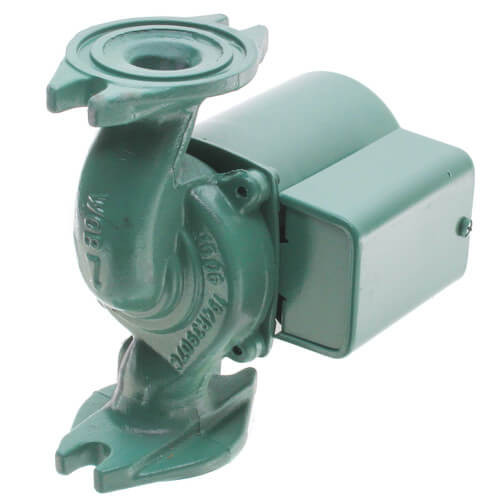

Taco | 007-F5-7IFC
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 007-F5-7IFC

Documents and manuals

Taco 007-F5-7IFC Documents


Details for 007-F5-7IFC

Circulator Pump | Cast Iron | 1/25 HP | 115V | Single Phase | 0.71A | 3250 RPM | Flanged | 23 GPM | 10ft Max Head | 125 PSI Max Press. | Series 007

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ® Series Cartridge Circulator and 00 IFCm® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union

  • Standard High Capacity Output
    • Compact Design
  • Quiet, Efficient Operation
  • Direct Drive–Low Power Consumption
  • Unique Replaceable Cartridge Design
    • Field Serviceable
  • Self lubricating
  • No Mechanical Seal
  • Unmatched Reliability–Maintenance Free
  • Optional Integral Flow Check (IFC®)
    • Prevents Gravity Flow/Reverse Flow
    • Eliminates Separate In-Line Flow Check
    • Reduces Installed Cost
    • Improves System Performance
  • Hydronic Heating System
  • Hydro-Air Fan Coils
  • Zoning with Circulators
  • Chilled Water Cooling
  • Domestic Water Systems
  • Radiant Heating Systems

Note: Full flange-to-flange three-year warranty on all 00 Series circulators

Taco's 007-F5-7IFC Model is a cartridge style, maintenance free, wet-rotor, in-line, single stage circulator pump. Its rugged cast iron construction makes the circulating pump a versatile and reliable unit in your HVAC system. Since the cartridge contains all of the interacting parts, circulator and IFC maintenance is made easy and you don't have to replace the entire unit. Its quiet, effective operation, unmatched reliability, unique design and functionality makes the Taco 007-F5-7IFC cartridge circulator pump among the most popular hydronic circulator pumps available in the market.

The Taco 007-F5-7IFC is engineered to simplify piping, reduce installation costs and optimize system performance when zoning with Taco 00 circulators. Its main function is to protect against reverse and gravity flow. A low pressure drop caused by the spring-loaded IFC increases flow performance vs. traditional in-line flow checks. Applications include: hydronic heating/cooling, hydro-air fan coils, radiant heating, and indirect water heaters.

Replacement Parts List:
Casing O-Ring: 008-005RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 0010-025RP
valve Assembly Trans/Relay: 006-047RP

  • Integral Flow Check (IFC)--Eliminates In-Line Flow Check, Reduces Installed Cost, Easy to Service, and Improved Performance vs. In-Line Flow Checks
  • Unique Replaceable Cartridge Design-Field Serviceable
  • Unmatched Reliability-Maintenance Free
  • Quiet, Efficient Operation
  • Direct Drive-Low Power Consumption
  • Standard High Capacity Output-Compact Design
  • Self Lubricating, No Mechanical Seal
  • Cast iron Construction with Flanged Connections


Item Number 007-F5-7IFC
Brand Taco
Amperage 0.71
Amps 0.71A
Application Zoning
Connection Type Flanged x Flanged
Connection Flanged
Flow Range (GPM) 0-17
Head Range (ft.) 0-8.5
Hertz 60
Horse Power 1/25
HP 1/25 HP
Material Bronze
Material Cast Iron
Max Flow (GPM) 17
Max Flow 23 GPM
Max Head (Ft) 8.5
Max Head Pressure 10ft
Max Pressue 125 PSI
Max Pressure (PSI) 125
Optional Integral Flow Check
Phase 1
Phase Single Phase
Pump Type Cast Iron
RPM 3250
RPM 3250 RPM
Series Series 007
Temperature Range (F) 40°F to 230°F
Type Pump
Voltage 115v
Warranty 3 Year
