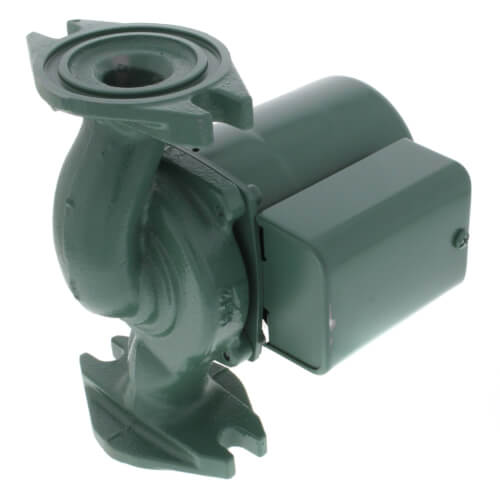

007-F5-8IFC | Circulator Pump | Cast Iron | 1/25 HP | 115V | Single Phase | 0.71A | 3250 RPM | Flanged | 23 GPM | 10ft Max Head | 125 PSI Max Press. | Series 007 | Taco
Documents and manuals
Taco 007-F5-8IFC Documents
Overview
Details for 007-F5-8IFC
Circulator Pump | Cast Iron | 1/25 HP | 115V | Single Phase | 0.71A | 3250 RPM | Flanged | 23 GPM | 10ft Max Head | 125 PSI Max Press. | Series 007
Rugged, Versatile, Quick and Easy to Install
With their self-lubricating design and no mechanical seal, Taco 00 ® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ® Series Cartridge Circulator and 00 IFCm® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.
Taco 00 IFC ® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.
Performance Data
Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union
Features
- Standard High Capacity Output
- Compact Design
- Quiet, Efficient Operation
- Direct Drive–Low Power Consumption
- Unique Replaceable Cartridge Design
- Field Serviceable
- Self lubricating
- No Mechanical Seal
- Unmatched Reliability–Maintenance Free
- Optional Integral Flow Check (IFC®)
- Prevents Gravity Flow/Reverse Flow
- Eliminates Separate In-Line Flow Check
- Reduces Installed Cost
- Improves System Performance
Applications
- Hydronic Heating System
- Hydro-Air Fan Coils
- Zoning with Circulators
- Chilled Water Cooling
- Domestic Water Systems
- Radiant Heating Systems
Note: Full flange-to-flange three-year warranty on all 00 Series circulators.
This product has a rotated flange
The redesigned 007-IFC features a larger, removable Integral Flow Check designed to improve pump performance,simplify piping and reduce installation costs. The spring-loaded IFC replaces a separate in-line-flow check to ensureprotection against reverse flow and gravity flow. IFC is available on all 00® Circulators including Priority Zoningand Variable Speed control models.
Application:
- Hydronic Heating/Cooling
- Hydro-Air Fan Coils
- Radiant
- Indirect Water Heaters
Features:
- Integral Flow Check (IFC®)
- Simplifies piping
- Prevents reverse flow and gravity flow
- Eliminates separate in-line flow check
- Reduces installed cost
- Improves system performance
- Easy to service
- Unique replaceable cartridge-field serviceable
- Unmatched reliability-maintenance free
- Quiet, efficient operation
- Self lubricating, No mechanical seal
Replacement Parts List:
Casing O-Ring: 008-005RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 007-042RP
Valve Assembly Trans/Relay: 0010-025RP
Specifications
| Item Number | 007-F5-8IFC |
| Brand | Taco |
| Amperage | 0.71 |
| Amps | 0.71A |
| Application | Heating |
| Connection Type | Flanged x Flanged |
| Connection | Flanged |
| Flow Range (GPM) | 0-17 |
| Head Range (ft.) | 0-8.5 |
| Hertz | 60 |
| Horse Power | 1/25 |
| HP | 1/25 HP |
| Material | Bronze |
| Material | Cast Iron |
| Max Flow (GPM) | 17 |
| Max Flow | 23 GPM |
| Max Head (Ft) | 8.5 |
| Max Head Pressure | 10ft |
| Max Pressue | 125 PSI |
| Max Pressure (PSI) | 125 |
| Optional | |
| Optional | Integral Flow Check |
| Phase | 1 |
| Phase | Single Phase |
| Pump Type | Cast Iron |
| RPM | 3250 |
| RPM | 3250 RPM |
| Series | Series 007 |
| Temperature Range (F) | 40°F to 230°F |
| Type | Pump |
| Voltage | 115v |
| Warranty | 3 Year |
