0013-BF4Y-J | Circulator Pump | Bronze | 1/6 HP | 230V | Single Phase | 2A | 3250 RPM | Flanged | 34 GPM | 33ft Max Head | 125 PSI Max Press. | Series 0013 | Taco

Brand: TacoSKU: 0013-BF4Y-J

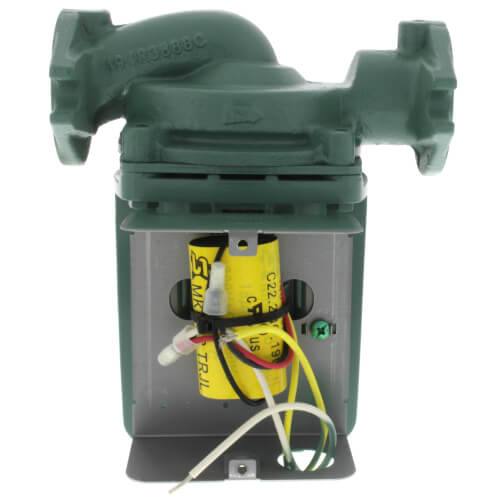

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 0013-BF4Y-J

Overview & Specifications Reviews Parts & Accessories

Overview Details for 0013-BF4Y-J

Circulator Pump | Bronze | 1/6 HP | 230V | Single Phase | 2A | 3250 RPM | Flanged | 34 GPM | 33ft Max Head | 125 PSI Max Press. | Series 0013

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ^® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ^® Series Cartridge Circulator and 00 IFCm^® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ^® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ^® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union

Features

Standard High Capacity Output
- Compact Design
Quiet, Efficient Operation
Direct Drive–Low Power Consumption
Unique Replaceable Cartridge Design
- Field Serviceable
Self lubricating
No Mechanical Seal
Unmatched Reliability–Maintenance Free
Optional Integral Flow Check (IFC®)
- Prevents Gravity Flow/Reverse Flow
- Eliminates Separate In-Line Flow Check
- Reduces Installed Cost
- Improves System Performance

Applications

Hydronic Heating System
Hydro-Air Fan Coils
Zoning with Circulators
Chilled Water Cooling
Domestic Water Systems
Radiant Heating Systems

Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

Overview

The Taco 0013 is specifically designed for high head/high flow applications in Large Residential and Light Commercial systems. Ideal for high pressure drop Boilers, Fan Coil units, Heat Exchangers, larger Radiant systems, Heat Recovery and Geothermal systems. The Bronze 0013 should be used on open loop systems. The unique replaceable cartridge contains all of the moving parts and allows for easy service instead of replacing the entire circulator. Universal flange to flange dimensions and orientation allows the 0013 to easily replace other models. Compact, low power consumption design makes it ideal for high-efficiency jobs.

Features

Exclusive Anti-Condensate Baffle (ACB) with Ambient Air Flow-Protects motor windings against condensate buildup.
High Velocity Performance-Compact Design
Quiet, Efficient Operation
Unique Replaceable Cartridge Design-Field Serviceable
Direct Drive-Low Power Consumption
Self-Lubricating
No Mechanical Seal
Unmatched Reliability --Maintenance Free
Universal Flange-to-Flange Dimensions

Specifications

Item Number	0013-BF4Y-J
Brand	Taco
Amperage	2
Amps	2A
Application	Heating
Connection Type	Flanged x Flanged
Connection	Flanged
Flow Range (GPM)	0-34
Head Range (ft.)	0-33
Hertz	60
Horse Power	1/6
HP	1/6 HP
Material	Bronze
Max Flow (GPM)	34
Max Flow	34 GPM
Max Head (Ft)	33
Max Head Pressure	33ft
Max Pressue	125 PSI
Max Pressure (PSI)	125
Optional
Phase	1
Phase	Single Phase
Pump Type	Circulator Pump
RPM	3250
RPM	3250 RPM
Series	Series 0013
Temperature Range (F)	40°F to 230°F
Type	Pump
Voltage	230V
Warranty	3 Year
