2400-70-3P | Circulator Pump | Cast Iron | 1/2 HP | 115V | Single Phase | 4.9A | 3450 RPM | Flanged | 90 GPM | 46ft Max Head | 150 PSI Max Press. | Series 2400 | Taco
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: TacoSKU: 2400-70-3P

Web Price:

$1,241.59
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms
Image for Technical Expert

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

2400-70-3P | Circulator Pump | Cast Iron | 1/2 HP | 115V | Single Phase | 4.9A | 3450 RPM | Flanged | 90 GPM | 46ft Max Head | 150 PSI Max Press. | Series 2400 | Taco

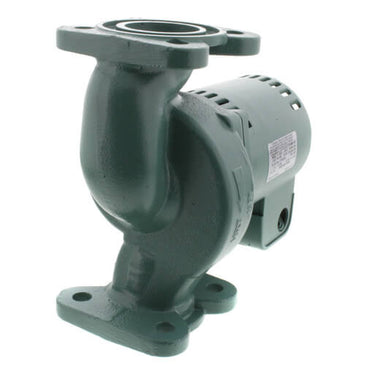

Taco | 2400-70-3P
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 2400-70-3P

Documents and manuals

Taco 2400-70-3P Documents

Overview

Details for 2400-70-3P

Circulator Pump | Cast Iron | 1/2 HP | 115V | Single Phase | 4.9A | 3450 RPM | Flanged | 90 GPM | 46ft Max Head | 150 PSI Max Press. | Series 2400

For Medium-to-High Flow/Head Application

Taco 2400 Series High Capacity Circulators are specifically designed for quiet, efficient, dependable operation in a wide range of medium to high flow/head hydronic heating, chilled water cooling and hot water recirculation applications. The space saving, close-coupled, maintenance free motor with permanently lubricated, sealed-for-life bearings, stainless steel shaft, Noryl®impeller and durable, carbon/silicon-carbide mechanical seal provide unmatched reliability. Available in Cast Iron or Stainless Steel construction.

Performance Data

Flow Range: 0 – 90 GPM
Head Range: 0′ – 46′
Max. Fluid Temp: 225°F (107°C)
Min. Fluid Temp: 40°F (4°C)
Max. Working Pressure: 150 PSI
HP: ½, 1/3, 1/6, 1/10
Connection Sizes : ¾” – 3″

Features
  • Compact, space saving design
  • Powerful close-coupled, maintenance free motor
  • Superior efficiency, high starting torque
  • Permanently lubricated, sealed for life bearings
  • Rugged ½ ” Stainless Steel Shaft
  • Carbon/Silicon-Carbide mechanical seal for long life
  • Universal flange to flange dimensions — Ideal for retrofits
  • Anti-Condensate design for chilled water
  • Dual electrical knock-outs
  • Dual pressure taps, suction/discharge
Applications
  • Hydronic heating
  • In-Floor Radiant
  • Snow Melt
  • High Pressure Drop Boilers
  • Outdoor Wood Boilers
  • Chilled Water Cooling
  • Geothermal Heat Pumps
  • Primary/Secondary Loops
  • Hydro Air Fan Coils
  • Domestic Water Recirculation Systems

Taco 2400 Series High Capacity Circulators are specifically designed for quiet, efficient, dependable operation in a wide range of medium to high flow/head hydronic heating, chilled water cooling and hot water recirculation applications. The spacesaving, close-coupled, maintenance free motor with permanently lubricated, sealed-for- life bearings, Noryl® impeller and durable, carbon/silicon-carbide mechanical sealprovide unmatched reliability.

The compact 2400 Series High Capacity Circulators are for use in a wide range of larger residential and commercial hydronic systems. Typical applications include hydronic heating, in-floor radiant, snow melt, high pressure drop boilers, outdoor wood boilers, chilled water cooling, geothermal heat pumps, primary/secondary loops and hydro air fan coils. The Stainless Steel 2400 Series should be used for open, domestic water recirculation systems. The unitized, carbon/silicon-carbide mechanical seal is easy to service in only a few minutes.

Features:
  • Compact, space saving design
  • Powerful close-coupled, maintenance free motor
  • Superior efficiency, high starting torque
  • Permanently lubricated, sealed for life bearings
  • Rugged 1/2" Stainless Steel Shaft
  • Carbon/Silicon-Carbide mechanical seal for long life
  • Universal flange to flange dimensions - Ideal for retrofits
  • Anti-Condensate design for chilled water
  • Dual electrical knock-outs
  • Dual pressure taps, suction/discharge

Specifications

Item Number 2400-70-3P
Brand Taco
Amperage 4.9
Amps 4.9A
Application Heating
Connection Size 2"
Connection Type Threaded
Connection Flanged
Hertz 60
Horse Power 1/2
HP 1/2 HP
Material Cast Iron
Max Flow (GPM) 91
Max Flow 90 GPM
Max Head (Ft) 23
Max Head Pressure 46ft
Max Pressue 150 PSI
Max Pressure (PSI) 150
Optional
Phase 1
Phase Single Phase
Pump Type Circulator Pump
RPM 3450
RPM 3450 RPM
Series Series 2400
Temperature Range (F) 40°F - 225°F
Type Pump
Voltage 115v
