Documents: 2400-30-3P

Datasheet Installation Instructions More Info

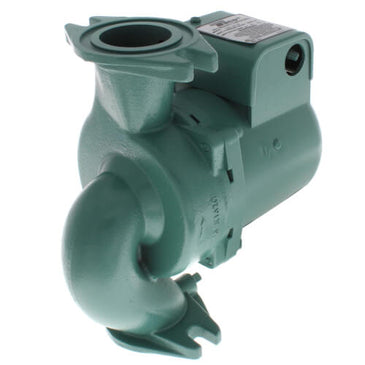

2400-30-3P | Circulator Pump | Cast Iron | 1/6 HP | 115V | Single Phase | 1.9A | 3450 RPM | Flanged | 90 GPM | 46ft Max Head | 150 PSI Max Press. | Series 2400 | Taco

Brand: TacoSKU: 2400-30-3P

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 2400-30-3P

Overview & Specifications Reviews Parts & Accessories

Overview Details for 2400-30-3P

Circulator Pump | Cast Iron | 1/6 HP | 115V | Single Phase | 1.9A | 3450 RPM | Flanged | 90 GPM | 46ft Max Head | 150 PSI Max Press. | Series 2400

For Medium-to-High Flow/Head Application

Performance Data

Flow Range: 0 – 90 GPM
Head Range: 0′ – 46′
Max. Fluid Temp: 225°F (107°C)
Min. Fluid Temp: 40°F (4°C)
Max. Working Pressure: 150 PSI
HP: ½, 1/3, 1/6, 1/10
Connection Sizes : ¾” – 3″

Features

Compact, space saving design
Powerful close-coupled, maintenance free motor
Superior efficiency, high starting torque
Permanently lubricated, sealed for life bearings
Rugged ½ ” Stainless Steel Shaft
Carbon/Silicon-Carbide mechanical seal for long life
Universal flange to flange dimensions — Ideal for retrofits
Anti-Condensate design for chilled water
Dual electrical knock-outs
Dual pressure taps, suction/discharge

Applications

Hydronic heating
In-Floor Radiant
Snow Melt
High Pressure Drop Boilers
Outdoor Wood Boilers
Chilled Water Cooling
Geothermal Heat Pumps
Primary/Secondary Loops
Hydro Air Fan Coils
Domestic Water Recirculation Systems

Taco 2400 Series High Capacity Circulators are specifically designed for quiet, efficient, dependable operation in a wide range of medium to high flow/head hydronic heating, chilled water cooling and hot water recirculation applications. The spacesaving, close-coupled, maintenance free motor with permanently lubricated, sealed-for- life bearings, Noryl® impeller and durable, carbon/silicon-carbide mechanical sealprovide unmatched reliability.

The compact 2400 Series High Capacity Circulators are for use in a wide range of larger residential and commercial hydronic systems. Typical applications include hydronic heating, in-floor radiant, snow melt, high pressure drop boilers, outdoor wood boilers, chilled water cooling, geothermal heat pumps, primary/secondary loops and hydro air fan coils. The Stainless Steel 2400 Series should be used for open, domestic water recirculation systems. The unitized, carbon/silicon-carbide mechanical seal is easy to service in only a few minutes.

Features:

Compact, space saving design
Powerful close-coupled, maintenance free motor
Superior efficiency, high starting torque
Permanently lubricated, sealed for life bearings
Rugged 1/2" Stainless Steel Shaft
Carbon/Silicon-Carbide mechanical seal for long life
Universal flange to flange dimensions - Ideal for retrofits
Anti-Condensate design for chilled water
Dual electrical knock-outs
Dual pressure taps, suction/discharge

Specifications

Item Number	2400-30-3P
Brand	Taco
Amperage	1.9
Amps	1.9A
Application	Heating
Connection Size	1-1/2"
Connection Type	Threaded
Connection	Flanged
Hertz	60
Horse Power	1/6
HP	1/6 HP
Material	Cast Iron
Max Flow (GPM)	38
Max Flow	90 GPM
Max Head (Ft)	27
Max Head Pressure	46ft
Max Pressue	150 PSI
Max Pressure (PSI)	150
Optional
Phase	1
Phase	Single Phase
Pump Type	Circulator Pump
RPM	3450
RPM	3450 RPM
Series	Series 2400
Temperature Range (F)	40°F - 225°F
Type	Pump
Voltage	115v
