0011-ZSF4 | Circulator Pump | Stainless Steel | 1/8 HP | 115V | Single Phase | 1.76A | 3250 RPM | Flanged | 31 GPM | 31ft Max Head | 125 PSI Max Press. | Series 0011 | Taco
Documents and manuals
Taco 0011-ZSF4 Documents
Overview
Details for 0011-ZSF4
Circulator Pump | Stainless Steel | 1/8 HP | 115V | Single Phase | 1.76A | 3250 RPM | Flanged | 31 GPM | 31ft Max Head | 125 PSI Max Press. | Series 0011
![](https://supplyfile.com/images/taco/badge_taco.png)
Rugged, Versatile, Quick and Easy to Install
With their self-lubricating design and no mechanical seal, Taco 00 ® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ® Series Cartridge Circulator and 00 IFCm® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.
Taco 00 IFC ® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.
Performance Data
Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union
Features
- Standard High Capacity Output
- Compact Design
- Quiet, Efficient Operation
- Direct Drive–Low Power Consumption
- Unique Replaceable Cartridge Design
- Field Serviceable
- Self lubricating
- No Mechanical Seal
- Unmatched Reliability–Maintenance Free
- Optional Integral Flow Check (IFC®)
- Prevents Gravity Flow/Reverse Flow
- Eliminates Separate In-Line Flow Check
- Reduces Installed Cost
- Improves System Performance
Applications
- Hydronic Heating System
- Hydro-Air Fan Coils
- Zoning with Circulators
- Chilled Water Cooling
- Domestic Water Systems
- Radiant Heating Systems

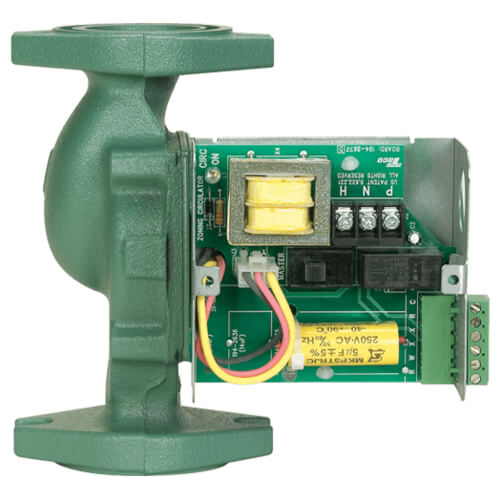

Features
- Universal Thermostat Compatibility, Thermostat Ready
- Can be used in conjunction with other circulators or zone valves
- Available in a full range of sizes from 003-0014
- 00 Reliability
- Snap-In PC Board
- Low and High Voltage Strips
- Removable low-voltage terminal strip simplifies wiring installation
- LED Power Light
- UL and CSA Listed
- 100% Factory Tested
- Made in USA
Typical Applications
- Indirect Hot Water Heaters
- Adding Zones
- Zoning with Circulators
- Prioritizing Under-Sized Zones
Replacement Parts List:
Casing O-Ring: 009-005RP
Flange Gasket Set: 007-007RP
Cartridge Assembly Complete: 0011-010RP
Specifications
Item Number | 0011-ZSF4 |
Brand | Taco |
Amperage | 1.76 |
Amps | 1.76A |
Application | Heating |
Connection Type | Flanged x Flanged |
Connection | Flanged |
Flow Range (GPM) | 0-31 |
Head Range (ft.) | 0-31 |
Hertz | 60 |
Horse Power | 1/8 |
HP | 1/8 HP |
Material | Stainless Steel |
Max Flow (GPM) | 31 |
Max Flow | 31 GPM |
Max Head (Ft) | 31 |
Max Head Pressure | 31ft |
Max Pressue | 125 PSI |
Max Pressure (PSI) | 125 |
Optional | |
Phase | 1 |
Phase | Single Phase |
Pump Type | Circulator Pump |
RPM | 3250 |
RPM | 3250 RPM |
Series | Series 0011 |
Temperature Range (F) | 40°F to 230°F |
Type | Pump |
Voltage | 115v |
