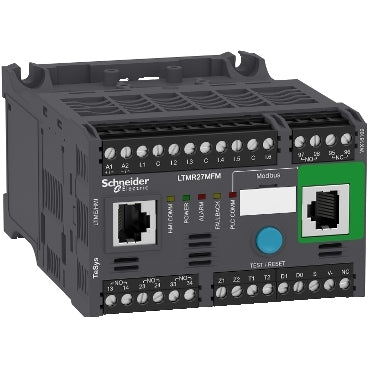

LTMR27MFM | Motor controller LTMR TeSys T - 100..240 V AC 27 A for Modbus | Square D by Schneider Electric

Brand: Square DSKU: LTMR27MFM

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LTMR27MFM

Jump to: Overview & Specifications Reviews

Overview Details for LTMR27MFM

Motor controller LTMR TeSys T - 100..240 V AC 27 A for Modbus

TeSys T is a motor management system that provides full motor monitoring, control, and protection when used with short circuit protection and a contactor. It manages most critical processes while reducing downtime and increasing productivity as well as predicts what will happen in the process, as it accurately monitors current, voltage, and power over a wide range. This motor management system is also a flexible system that supports six communication protocols which are Modbus™, CANopen, DeviceNet™, Profibus™, Ethernet/IP, and Modbus/TCP. TeSys T motor management system consist of several components which include the LTMR controller, the expansion module, HMI and software along with several accessories. The LTMR controller is the main component of the system that manages the basic functions. This includes the measurement of the ground current, motor temperature, three phase current of the motor, the controller also includes logic inputs and outputs which is used in fault management. The expansion module is directly connected to the controller and provides additional inputs as well as measure the voltage between the phases which allow the controller the monitor additional functions. TeSys T is highly reliable and has a very long product life thanks to a state-of-the-art component selection, to the all in one design and to the advanced electronic protection. TeSys T can be integrated in many different types of harsh environment such as dusty atmospheres, marine applications, high vibration applications and corrosive atmospheres and is used in Metal/Mining/Mineral, Oil & Gas, Water Wastewater. This is a TeSys T LTMR controller that measure current range of 1.35-27A with a supply voltage of 100-240 Vac and uses CANopen as the communication protocol. This controller measures temperature, phase current, imbalance current, average current and earth-fault current. The dimensions of this device are 61 mm (H) X 91 mm (W) X 122.5 mm (D) and it weighs 0.53 kg.

Specifications

range: TeSys
product name: TeSys T
device short name: LTMR
Product or Component Type: Motor controller
Device Application: Equipment monitoring and control
measurement current: 1.35…27 A
[Us] rated supply voltage: 100...240 V AC 50/60 Hz
Current Consumption: 8...62.8 mA
supply voltage limits: 93.5…264 V AC
communication port protocol: Modbus
bus type: Modbus 2-wire RS 485 1...247 1.2...19.2 kbit/s;RJ45 2 shielded twisted pairs;Modbus 2-wire RS 485 1...247 1.2...19.2 kbit/s;terminal block 2 shielded twisted pairs
[Ui] rated insulation voltage: 690 V EN/IEC 60947-1;690 V CSA C22.2 No 14;690 V UL 508
[Uimp] rated impulse withstand voltage: 4 kV supply;inputs and outputs EN/IEC 60947-4-1;6 kV current or voltage measurement circuit EN/IEC 60947-4-1;0.8 kV communication circuit EN/IEC 60947-4-1
short-circuit withstand: 100 kA EN/IEC 60947-4-1
associated fuse rating: 4 A gG output;0.5 A gG control circuit
Protection Type: Reverse polarity protection;Overload (long time);Earth-leakage protection;Phase unbalance;Overload;Load fluctuation;Phase failure;Power factor variation;Thermal protection;Locked rotor;Thermal overload protection
network and machine diagnosis type: Fault recording;Starting current and time;Remaining operating time before overload tripping;Waiting time after overload tripping;Motor control command recording;Event recording;Trip history information;Running hours counter/operating time;Phase fault and earth fault trip counters;Trip context information
logic input number: 6
input current: 3.1 mA 100 V;7.5 mA 240 V
current state 0 guaranteed: Logic input 0...40 V <= 15 mA 25 ms
current state 1 guaranteed: Logic input 79...264 V >= 2 mA 25 ms
maximum output switching frequency: 2 Hz
load current: 5 A 250 V AC logic output;5 A 30 V DC logic output
permissible power: 480 VA AC-15);Ie = 2 A;500000 cycles output);30 W DC-13);Ie = 1.25 A;500000 cycles output)
maximum operating rate: 1800 cyc/h
contacts type and composition: 1 NO + 1 NC fault signal;3 NO
metering type: Temperature;Phase current I1;I2;I3 RMS;Average current Iavg;Earth-fault current;Imbalance current
measurement accuracy: 5...15 % earth fault current internal measurement;1 % voltage 100...830 V);3 % power factor;5 % earth fault current external measurement;+/- 30 min/year internal clock;0;02 Temperature;1 % current;5 % active and reactive power
overvoltage category: III
connection pitch: 0.20 in (5.08 mm)
connections - terminals: Control circuit connector 1 0.00…0.00 in² (0.25…2.5 mm²) AWG 24...AWG 14)flexible with cable end;Control circuit connector 1 0.00…0.00 in² (0.2…2.5 mm²) AWG 24...AWG 14)flexible without cable end;Control circuit connector 1 0.00…0.00 in² (0.25…2.5 mm²) AWG 24...AWG 14)flexible without cable end;Control circuit connector 1 0.00…0.00 in² (0.2…2.5 mm²) AWG 24...AWG 14)solid without cable end;Control circuit connector 2 0.00…0.00 in² (0.2…1 mm²) AWG 24...AWG 14)flexible with cable end;Control circuit connector 2 0.00…0.00 in² (0.2…1.5 mm²) AWG 24...AWG 14)flexible without cable end;Control circuit connector 2 0.00…0.00 in² (0.5…1.5 mm²) AWG 24...AWG 14)flexible without cable end;Control circuit connector 2 0.00…0.00 in² (0.2…1 mm²) AWG 24...AWG 14)solid without cable end
tightening torque: Control circuit 4.43…5.31 lbf.in (0.5…0.6 N.m) flat 0.12 in (3 mm)
pollution degree: 3
electromagnetic compatibility: Electrostatic discharge;3 8 kV air;6 kV contact)EN/IEC 61000-4-2);Radiated RF fields;3 10 V/m)EN/IEC 61000-4-3);Fast transients immunity test;level 3 2 kV)EN/IEC 61000-4-4);Fast transients immunity test;level 4 4 kV)EN/IEC 61000-4-4);Voltage dips and interruptions immunity test 70 %;500 ms)EN/IEC 61000-4-11);Conducted RF disturbances 10 V)EN/IEC 61000-4-6);Surges 0.5 kV)EN/IEC 61000-4-5);Surges 1 kV)EN/IEC 61000-4-5);Surges 1 kV)EN/IEC 61000-4-5);Surges 2 kV)EN/IEC 61000-4-5);Surges 2 kV)EN/IEC 61000-4-5);Surges 4 kV)EN/IEC 61000-4-5);Surges 2 kV)EN/IEC 61000-4-5)
Width: 3.58 in (91 mm)
Height: 2.40 in (61 mm)
Depth: 4.82 in (122.5 mm)
Net Weight: 1.17 lb(US) (0.53 kg)
web services: Web server
compatibility code: LTMR
Standards: CSA C22.2 No 14;UL 508;EN 60947-4-1;IEC 60947-4-1;IACS E10
Product Certifications: RMRoS;LROS (Lloyds register of shipping);RINA;ABS;CCC;EAC;UL;GL;NOM;DNV;KERI;ATEX;BV;CSA;C-tick
protective treatment: 12 x 24 hour cycles EN/IEC 60068-2-30;48 h EN/IEC 60070-2-11;TH EN/IEC 60068
fire resistance: 1202 °F (650 °C) EN/IEC 60695-2-12;1760 °F (960 °C) UL 94
ambient air temperature for operation: -4…140 °F (-20…60 °C)
Ambient Air Temperature for Storage: -40…176 °F (-40…80 °C)
operating altitude: <= 6561.68 ft (2000 m) without derating
mechanical robustness: Vibrations mounted on symmetrical rail1 Gn;5...300 Hz EN/IEC 60068-2-6;Vibrations plate mounted4 Gn;5...300 Hz EN/IEC 60068-2-6;Shocks half sine wave acceleration15 Gn for 11 ms EN/IEC 60068-2-27
IP Degree of Protection: IP20
Category: 22338-SOLID STATE OVERLOAD RELAYS
Discount Schedule: I12
GTIN: 3389119404655
Returnability: No
Country of origin: CN
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.83 in (7.2 cm)
Package 1 Width: 3.94 in (10.0 cm)
Package 1 Length: 5.35 in (13.6 cm)
Package 1 Weight: 18.52 oz (525.0 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 10
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 12.35 lb(US) (5.604 kg)
Warranty: 18 months
