BDA160205 | MOLDED CASE CIRCUIT BREAKER 34 | Square D by Schneider Electric

Brand: Square DSKU: BDA160205

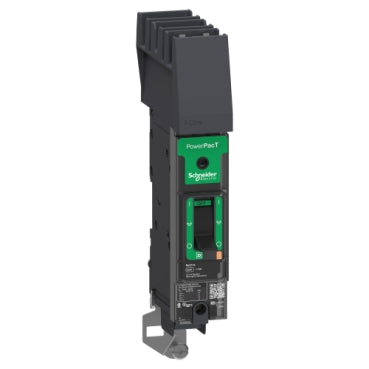

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BDA160205

Jump to: Overview & Specifications Reviews

Overview Details for BDA160205

MOLDED CASE CIRCUIT BREAKER 34

PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 20A, 1 pole, circuit breaker has a breaking capacity of 14kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80% with a C phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

range: PowerPact
product name: PowerPact B
device short name: BD 020
Product or Component Type: Circuit breaker
Device Application: Distribution
Line Rated Current: 20 A
Number of Poles: 1P
Control Type: Toggle
breaking capacity code: D
breaking capacity: 25 kA 208Y/120 V AC 50/60 Hz UL 489;25 kA 240 V AC 50/60 Hz UL 489;18 kA 480Y/277 V AC 50/60 Hz UL 489;14 kA 125 V DC 50/60 Hz UL 489;14 kA 600/347 V AC 50/60 Hz UL 489
[Ue] rated operational voltage: 240 V AC 50/60 Hz UL 489
Network Frequency: 50/60 Hz
[Ics] rated service breaking capacity: 14 kA 220...240 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage: 8 kV IEC 60947-2
trip unit technology: Thermal-magnetic
continuous current rating: 80 %
[Ui] rated insulation voltage: 800 V IEC 60947-2
suitability for isolation: Yes IEC 60947-2
utilisation category: Category A
Mechanical durability: 20000 cycles IEC 947-1 Annex K ed 5.2
Electrical durability: 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
connection pitch: 1.06 in (27 mm)
AWG gauge: AWG 14...AWG 2/0 aluminium/copper
local signalling: Presence of auxiliary contacts flag green)
mounting mode: I-Line
electrical connection: I-Line connection line;Lugs load
Mounting Height: 1.50 in (38.1 mm)
tightening torque: 31.86…38.94 lbf.in (3.6…4.4 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 10);44.25…54.87 lbf.in (5…6.2 N.m) 0.02…0.11 in² (10…70 mm²) (AWG 8...AWG 2/0)
Power wire stripping length: 0.79 in (20 mm)
Color: Gray RAL 7016)
9 mm pitches: 3
Height: 5.39 in (137 mm)
Width: 1.06 in (27 mm)
Depth: 3.50 in (89 mm)
Net Weight: 1.41 lb(US) (0.6375 kg)
Quantity per Set: Set of 1
phase connection: C
circuit breaker application: HACR rated
quality labels: CE
Standards: UL 489;NEMA AB1;NMX J-266;EN/IEC 60947-5-1;GB 14048.2;CSA C22.2 No 5;EN/IEC 60947-2
product certifications: UL;IEC;CCC;EAC;CSA;NOM
IP degree of protection: Front cover IP40 IEC 60529
IK degree of protection: IK07 IEC 62262
pollution degree: 3 IEC 60947-1
Ambient air temperature for operation: -13…158 °F (-25…70 °C)
Ambient Air Temperature for Storage: -58…185 °F (-50…85 °C)
operating altitude: < 6561.68 ft (2000 m) without derating;5000 m with derating
Category: 01133-BDA I-LINE BREAKER
Discount Schedule: DE2
GTIN: 3606481151315
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.50 in (3.81 cm)
Package 1 Width: 7.75 in (19.685 cm)
Package 1 Length: 11.63 in (29.528 cm)
Package 1 Weight: 17.60 oz (498.952 g)
