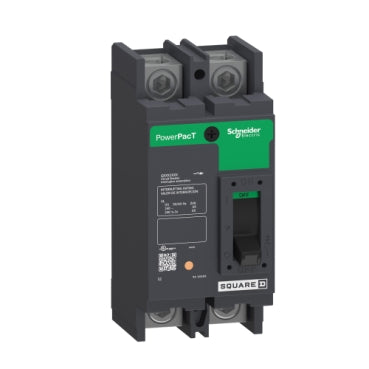

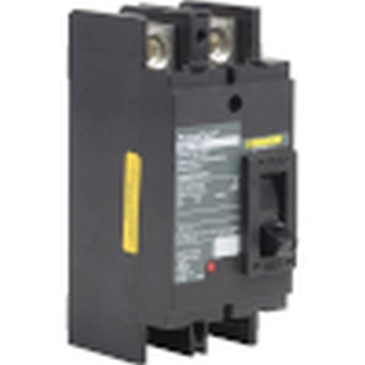

PowerPact Q Molded case circuit breaker, 2-pole, 10 kA, 240 V, 150 A
The PowerPact® Q-frame line of circuit breakers include QB, QD, QG and QJ molded case circuit breakers and QB automatic switches. They are rated 240 Vac, 250 A max. and are available in lug or bus-connected unit-mount constructions, or I-Line® group-mounted construction. PowerPact Q-frame circuit breakers are rated for 240 Vac (208Y/120 Vac for 3-pole 100 kA) and are available with UL® Listed interruption ratings from 10 kA to 100 kA. Unit-mount circuit breakers are available with lugs on both ends for cabled applications or with mounting studs for bus-mounted applications. These circuit breakers may be mounted in individual enclosures, metering devices, panelboards or switchboards. The PowerPact Q-frame circuit breaker is a direct replacement for the Q2 Series device. This PowerPact Q, circuit breaker is a 2-pole and has a rated current of 150A. This breaker has a breaking capacity of 10kA@240VAC and has a continuous currrent rating of 80 %. This unit mounted breaker has a thermal-magnetic trip unit technology with a magnetic hold current of 1200 A and a magnetic tripping current of 2400A. Dimensions for this product are 6.47 in (H), 3.00 in (W), 3.93 in (D). This product complys to UL listed, CSA & IEC standards.Specifications
- range
- PowerPact
- product name
- PowerPact Q
- Product or Component Type
- Circuit breaker
- Device Application
- Distribution
- Line Rated Current
- 150 A
- Number of Poles
- 2P
- Control Type
- Operating handle
- breaking capacity code
- B
- breaking capacity
- 10 kA 120/208 V AC 50/60 Hz UL;10 kA 240 V AC 50/60 Hz UL
- [Ue] rated operational voltage
- 240 V AC 50/60 Hz UL
- Network Frequency
- 50/60 Hz
- [Uimp] rated impulse withstand voltage
- 8 kV UL
- trip unit technology
- Thermal-magnetic
- magnetic tripping current
- 2400 A
- magnetic hold current
- 1200 A
- continuous current rating
- 80 %
- utilisation category
- Category A
- Mechanical durability
- 1000 cycles loaded;5000 cycles no load
- local signalling
- 1 trip indicator green)
- mounting mode
- Unit mount lug)
- Mounting Support
- Lug
- electrical connection
- Lugs line;Terminal nut load
- tightening torque
- 247.82 lbf.in (28 N.m) 0.04…0.23 in² (25…150 mm²) (AWG 4...300 kcmil)
- Power wire stripping length
- 0.87 in (22 mm)
- Height
- 6.47 in (164.34 mm)
- Width
- 3 in (76.20 mm)
- Depth
- 3.93 in (99.82 mm)
- circuit breaker application
- HACR rated
- Standards
- UL;CSA;NEMA;NOM-003-SCFI-2000
- product certifications
- UL;CSA;NOM
- Ambient air temperature for operation
- 104…158 °F (40…70 °C)
- Category
- 00187-Q2M REPL MAIN CB
- Discount Schedule
- DE2A
- GTIN
- 785901417873
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.50 in (11.43 cm)
- Package 1 Width
- 6.10 in (15.494 cm)
- Package 1 Length
- 9.80 in (24.892 cm)
- Package 1 Weight
- 3.27 lb(US) (1.485 kg)
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 5
- Package 2 Height
- 40.00 in (101.6 cm)
- Package 2 Width
- 40.00 in (101.6 cm)
- Package 2 Length
- 48.00 in (121.92 cm)
- Package 2 Weight
- 2459.21 lb(US) (1115.478 kg)
- Warranty
- 18 months
