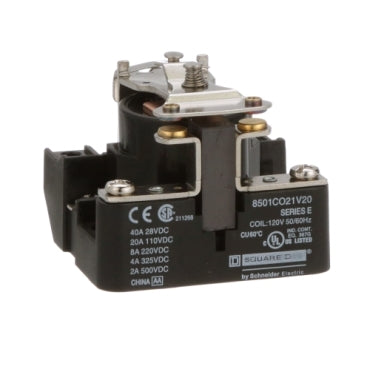

8501CO21V20 | Power Relay, SPST, 1NO and 0NC, 20 A resistive at 110 VDC, 120 VAC coil | Square D by Schneider Electric

Brand: Square DSKU: 8501CO21V20

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 8501CO21V20

Jump to: Overview & Specifications Reviews

Overview Details for 8501CO21V20

Power Relay, SPST, 1NO and 0NC, 20 A resistive at 110 VDC, 120 VAC coil

8501C power relays are used to control VDC loads. These power relays are available with a variety of contact configurations. This relay has a SPDT contact configuration for VDC loads with one normally open and no normally closed contact. A variety of coil voltages are available. This relay has a 120 VAC nonreplaceable coil. Designed with heavy duty contacts that are rated for 20 A resistive rating at 110 VDC or 8 A resistive rating at 220 VDC. These relays have a durable open frame construction. 8501C power relays are UL listed and CSA certified. This range of relays is used in electric heater, pumping, conveyor and material handling applications.

Specifications

product range: Power Relay 8501C
product type: Power relay
short name: type C
[In] rated line current: 20 A
device application: Suited for controlling small single phase motors and other light loads
switch function: SPST
contact composition: 1 NO
[Uc] control circuit voltage: 120 V AC 50/60 Hz
maximum switching voltage: 500 V DC
class number: 8501
phase: 1 phase
terminal connects: Screw clamp terminal
wire range: AWG 10 copper
terminal tightening torque: 11…15 lbf.in (1.24…1.69 N.m)
coil burden: 10 VA
mounting: Panel mounting
ambient temperature range - operational: -22…122 °F (-30…50 °C)
product certifications: UL listed file E78351 CCN NLDX;CSA;CE
height: 2.43 in (61.72 mm)
width: 2.5 in (63.50 mm)
depth: 2.18 in (55.37 mm)
Category: 21131-8501 C
Discount Schedule: CP2
GTIN: 785901052210
Returnability: No
Country of origin: CN
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.30 in (5.842 cm)
Package 1 Width: 2.50 in (6.35 cm)
Package 1 Length: 2.60 in (6.604 cm)
Package 1 Weight: 8.16 oz (231.332 g)
Warranty: 18 months
