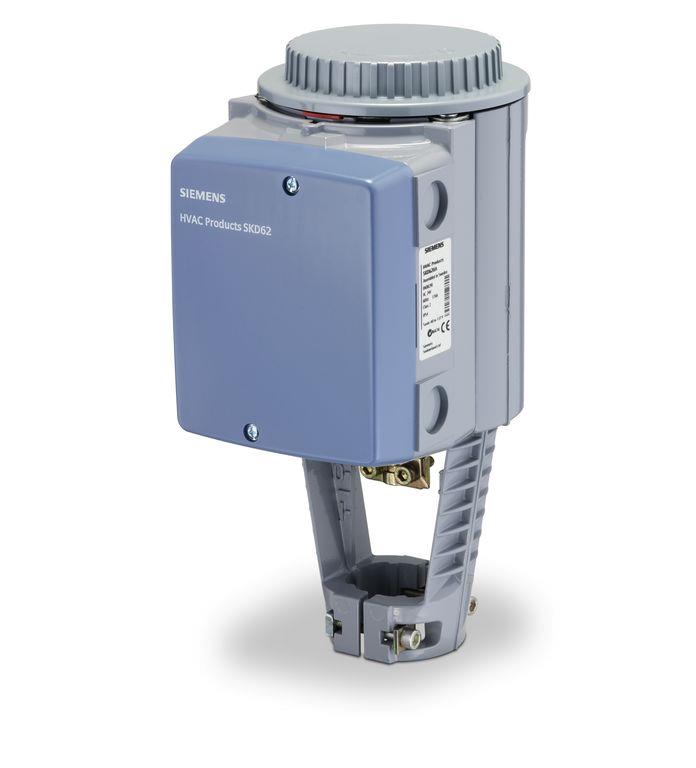

SKD82.50U | Flowrite Electro-Hydraulic Actuator, float, NSR, 3/4" Stroke | Siemens

The Flowrite SKD Valve Actuator is used with Flowrite and other standard valves with a 3/4-inch stroke. This electronic valve actuator requires a 24 Vac supply to provide floating control of the valve. Normally closed and 3-way upper port nominal force is 225 lb-in (1000N); normally open and 3-way bypass port is 258 lb-in (1150N). Other features of this valve actuator include automatic stroke calibration, manual override, die-cast aluminum housing, and non-spring return functionality.
