SKD60U | Flowrite Electro-Hydraulic Actuator, 24Vac, Proportional, NSR, 3/4" Stroke | Siemens
The Flowrite SKD Valve Actuator is used with Flowrite and other standard valves with a 3/4-inch stroke. This electronic valve actuator requires a 24 Vac supply to provide a 0 to 10 Vdc or 4 to 20 mA proportional control signal to the valve. Normally closed and 3-way upper port nominal force is 225 lb-in (1000N); normally open and 3-way bypass port is 258 lb-in (1150N). Other features of this valve actuator include automatic stroke calibration, manual override, die-cast aluminum housing, and spring return functionality.

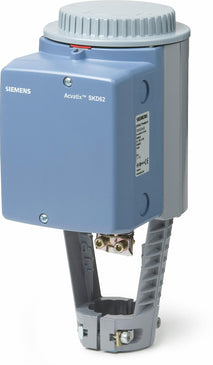

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SKD60U
Documents and manuals
Siemens SKD60U Documents
Datasheet(Electrohydraulic actuators SKD..)Declaration of conformity(Test report 10204-2.2. SKD... SKB... SKC..)Declaration of conformity(EU Declaration of Conformity SKD..)Declaration of conformity(RCM Supplier's declaration SKD..)Environmental Declaration(Environmental declaration for SKD60.. and SKD62..)Installation instruction(Auxiliary switch / Hilfsschalter ASC1.6)Mounting instruction(Stroke inverter ASK50)Mounting instruction(Electrohydraulic actuators SKD..)Mounting instruction(Replacement electronics ACT..)Other datasheet(Flowrite 599 Series 2-1/2 to 6-Inch Valves ANSI 125 Submittal Sheet)Other datasheet(Flowrite SKD Valve Proportional Control Technical Instructions)Commissioning Instruction(Einstellungsanleitung Standardelektronik SKD6... SKB6... SKC6..)Dimension Drawings(Stroke actuator. SKD... 2D drawings. dxf/dwg format)Dimension Drawings(Stroke actuator. SKD... 3D drawings. dwg. stp format) Installation Instructions More Info
Overview
Details for SKD60U
Flowrite Electro-Hydraulic Actuator, 24Vac, Proportional, NSR, 3/4" Stroke
Specifications
- Ambient temperature, operation
- -15…50 °C
- Degree of protection
- IP54
- Dimensions (W x H x D)
- 5 x 11.81 x 6.65 in
- Medium temperature
- -25…150 °C; 5…130 ºF
- Mounting position
- Upright to horizontal
- Position feedback
- DC 0…10 V, 4…20 mA
- Positioning signal
- DC 0...10 V, DC 4...20 mA, 0...1000 Ohm
- Positioning time
- Open:30 s, Close:15 s
- Spring return function
- Non-spring return functionality
- Stroke
- 20 mm
- Operating voltage
- 19.2…31.2 V24 V#AC
- Power consumption
- 10 VA
- Positioning force
- 1000 N
