SKB82.51U | Flowrite Electro-Hydraulic Actuator, Float Control, Spring Rtn, 3/4-in Stroke | Siemens
The Flowrite SKB Valve Actuator is used with Flowrite and other standard valves with a 3/4-inch stroke. This electronic valve actuator requires a 24 Vac supply to provide floating control of the valve. Other features of this valve actuator include automatic stroke calibration, manual override, die-cast aluminum housing, 1000 lb (4000N) thrust, and spring return functionality.

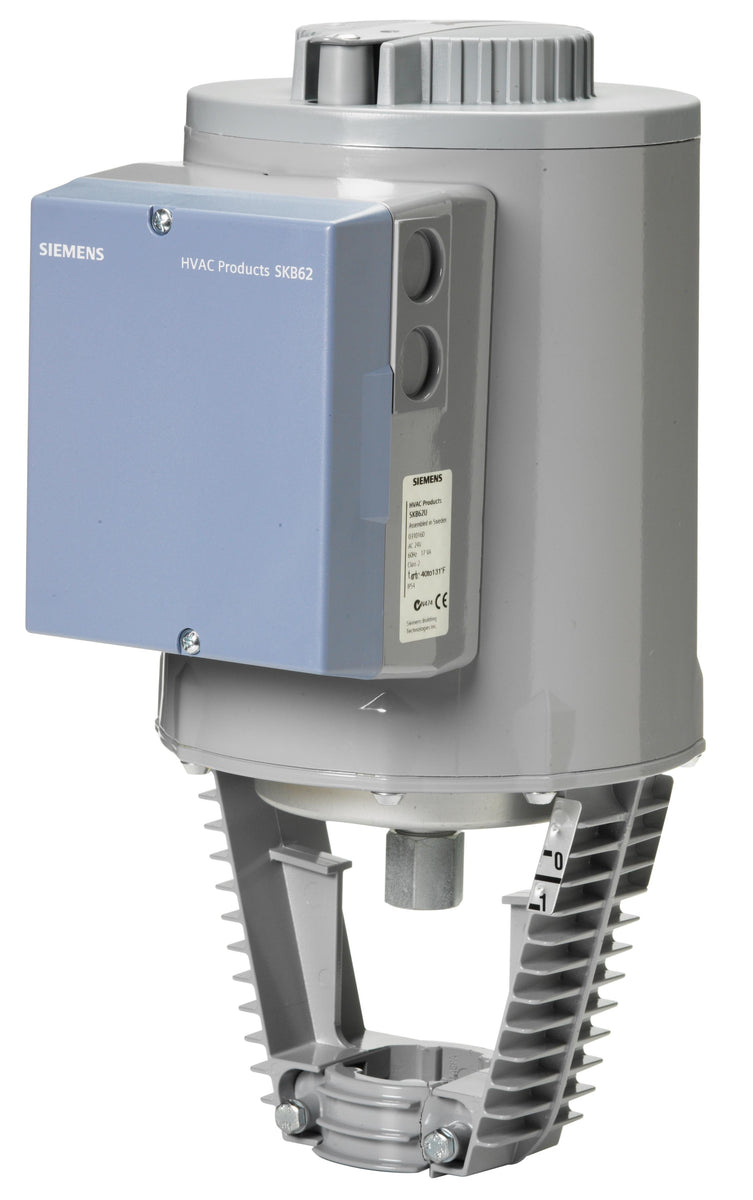

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SKB82.51U
Documents and manuals
Siemens SKB82.51U Documents
Datasheet(Electrohydraulic actuators SKB..)Datasheet(Flowrite 599 Series 2-1/2 to 6-Inch Valves ANSI 125 Submittal Sheet)Declaration of conformity(Test report 10204-2.2. SKD... SKB... SKC..)Declaration of conformity(EU Declaration of Conformity SKB... SKC..)Declaration of conformity(RCM Supplier's declaration SKB../SKC..)Environmental Declaration(Environmental declaration for SKB32.. / SKB82..)Installation instruction(SKB / SKC Electronic Valve Actuator Installation Instructions)Other datasheet(Flowrite EA 599 Series SKB / SKC Electronic Valve Actuators 24 Vac. 3-position (Floating) Control Technical Instructions)Dimension Drawings(Stroke actuator. SKB... SKC... 2D drawings. dxf/dwg format)Dimension Drawings(Stroke actuator. SKB... SKC... MKB.. 3D drawings. dwg. stp format) Installation Instructions More Info
Overview
Details for SKB82.51U
Flowrite Electro-Hydraulic Actuator, Float Control, Spring Rtn, 3/4-in Stroke
Specifications
- Ambient temperature, operation
- -15…55 °C
- Degree of protection
- IP54
- Dimensions (W x H x D)
- 7.01 x 14.84 x 8.94 in
- Medium temperature
- -25…220 °C; 5…130 ºF
- Mounting position
- NEMA 1 (interior only), Upright
- Operating voltage
- 19.2…28.2 V24 V#AC
- Positioning signal
- 3-position
- Positioning time
- 120 s
- Spring return function
- Spring return functionality
- Stroke
- 20 mm
- Positioning force
- 4400 N
