SKB62UA | Flowrite Electro-Hydraulic Actuator, 24Vac, Proportional, SR, 3/4" Stroke | Siemens
The Flowrite SKB Advanced Feature Valve Actuator is used with Flowrite and other standard valves with a 3/4-inch stroke. This electronic valve actuator requires a 24 Vac supply to provide a 0 to 10 Vdc or 4 to 20 mA proportional control signal to the valve. Other features of this valve actuator include automatic stroke calibration, manual override, die-cast aluminum housing, 1000 lb (4000N) thrust, and spring return functionality. Advanced features include selectable operating direction (direct or reverse acting), adjustable start and span, stroke limit control, choice of linear or equal-percentage flow characteristics.

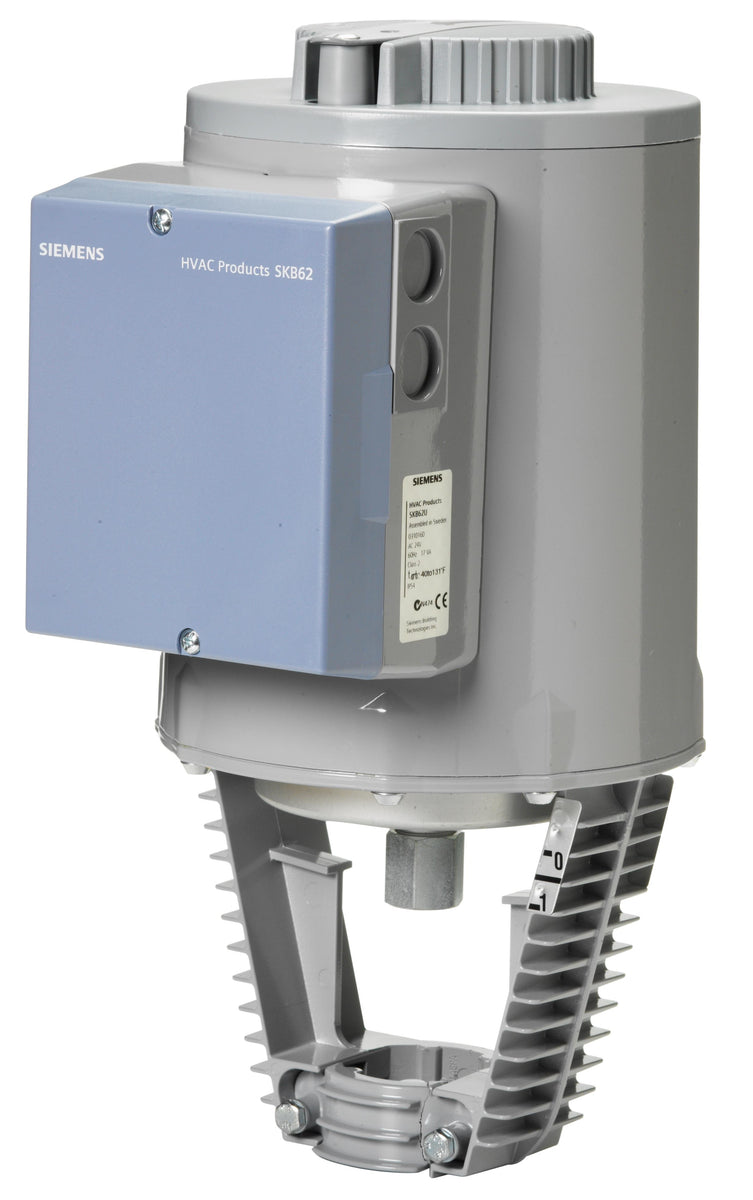

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SKB62UA
Documents and manuals
Siemens SKB62UA Documents
Datasheet(Electrohydraulic actuators SKB..)Datasheet(Flowrite EA 599 Series SKB. SKC. SKD 62UA Series Electronic Valve 24 Vac Proportional Control Advanced Features Technical Instructions)Declaration of conformity(Test report 10204-2.2. SKD... SKB... SKC..)Declaration of conformity(EU Declaration of Conformity SKB... SKC..)Declaration of conformity(RCM Supplier's declaration SKB../SKC..)Declaration of conformity(UKCA Declaration of Conformity. Valve actuators SKB... SKC..)Environmental Declaration(Environmental declaration for SKB60. SKB62..)Installation instruction(Auxiliary switch / Hilfsschalter ASC1.6)Installation instruction(SKB / SKC62UA Series Electronic Valve with Advanced Features Installation Instructions)Mounting instruction(Replacement electronics ACT..)Other datasheet(Electro-hydraulic actuators for valves: Modbus communication profiles)Commissioning Instruction(Einstellungsanleitung Standardelektronik SKD6... SKB6... SKC6..)Dimension Drawings(Stroke actuator. SKB... SKC... 2D drawings. dxf/dwg format)Dimension Drawings(Stroke actuator. SKB... SKC... MKB.. 3D drawings. dwg. stp format) Installation Instructions More Info
Overview
Details for SKB62UA
Flowrite Electro-Hydraulic Actuator, 24Vac, Proportional, SR, 3/4" Stroke
Specifications
- Ambient temperature, operation
- -15…55 °C
- Degree of protection
- IP54
- Dimensions (W x H x D)
- 14.84 x 7.01 x 8.94 in
- Medium temperature
- -25…220 °C; 5…130 ºF
- Mounting position
- NEMA 1 (interior only), Upright
- Operating voltage
- 19.2…28.2 V24 V#AC
- Position feedback
- DC 0…10 V, 4…20 mA
- Positioning signal
- DC 0...10 V, 4...20 mA, 0...1000 Ohm
- Positioning time
- Open:120 s, Close:10 s
- Spring return function
- Spring return functionality
- Stroke
- 20 mm
