SKB62U | Flowrite Electro-Hydraulic Actuator, 24Vac, Proportional, SR, 3/4" Stroke | Siemens

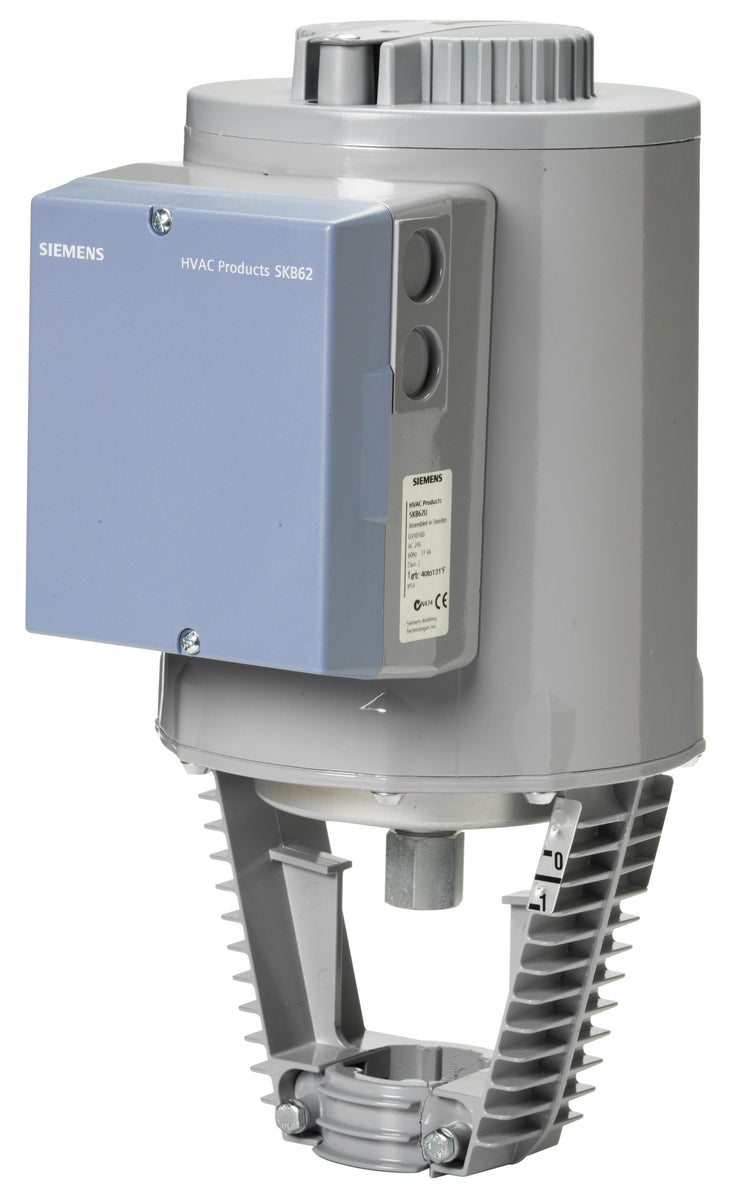

The Flowrite SKB Valve Actuator is used with Flowrite and other standard valves with a 3/4-inch stroke. This electronic valve actuator requires a 24 Vac supply to provide a 0 to 10 Vdc or 4 to 20 mA proportional control signal to the valve. Other features of this valve actuator include automatic stroke calibration, manual override, die-cast aluminum housing, 1000 lb (4000N) thrust, and spring return functionality.
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SKB62U
Documents and manuals
Siemens SKB62U Documents
Datasheet(Electrohydraulic actuators SKB..)Datasheet(Flowrite 599 Series 2-1/2 to 6-Inch Valves ANSI 125 Submittal Sheet)Datasheet(SKB and SKC Electronic Valve Proportional Control Technical Instructions)Declaration of conformity(Test report 10204-2.2. SKD... SKB... SKC..)Declaration of conformity(EU Declaration of Conformity SKB... SKC..)Declaration of conformity(RCM Supplier's declaration SKB../SKC..)Environmental Declaration(Environmental declaration for SKB60. SKB62..)Installation instruction(Auxiliary switch / Hilfsschalter ASC1.6)Installation instruction(SKB / SKC Electronic Valve Actuator Installation Instructions)Mounting instruction(Replacement electronics ACT..)Other datasheet(Electro-hydraulic actuators for valves: Modbus communication profiles)Commissioning Instruction(Einstellungsanleitung Standardelektronik SKD6... SKB6... SKC6..)Dimension Drawings(Stroke actuator. SKB... SKC... 2D drawings. dxf/dwg format)Dimension Drawings(Stroke actuator. SKB... SKC... MKB.. 3D drawings. dwg. stp format) Installation Instructions More Info
Overview
Details for SKB62U
Flowrite Electro-Hydraulic Actuator, 24Vac, Proportional, SR, 3/4" Stroke
Specifications
- Ambient temperature, operation
- -15…55 °C
- Degree of protection
- IP54
- Dimensions (W x H x D)
- 14.84 x 7.01 x 8.94 in
- Medium temperature
- -25…220 °C; 5…130 ºF
- Mounting position
- NEMA 1 (interior only), Upright
- Operating voltage
- 19.2…28.2 V24 V#AC
- Position feedback
- DC 0…10 V, 4…20 mA
- Positioning signal
- DC 0...10 V, 4...20 mA, 0...1000 Ohm
- Positioning time
- Open:120 s, Close:10 s
- Spring return function
- Spring return functionality
- Stroke
- 20 mm
