SFP71U | Zone Valve Electronic Actuator, 24 Vac, 2-Position, NO, SR. | Siemens
SF Series electronic zone valve actuator, 24 Vac, normally open, 2-position, with spring return. Works with Siemens 599 Series zone valves with 1/10-inch (2.5 mm) stroke. UL listed for plenum installations, manual override.

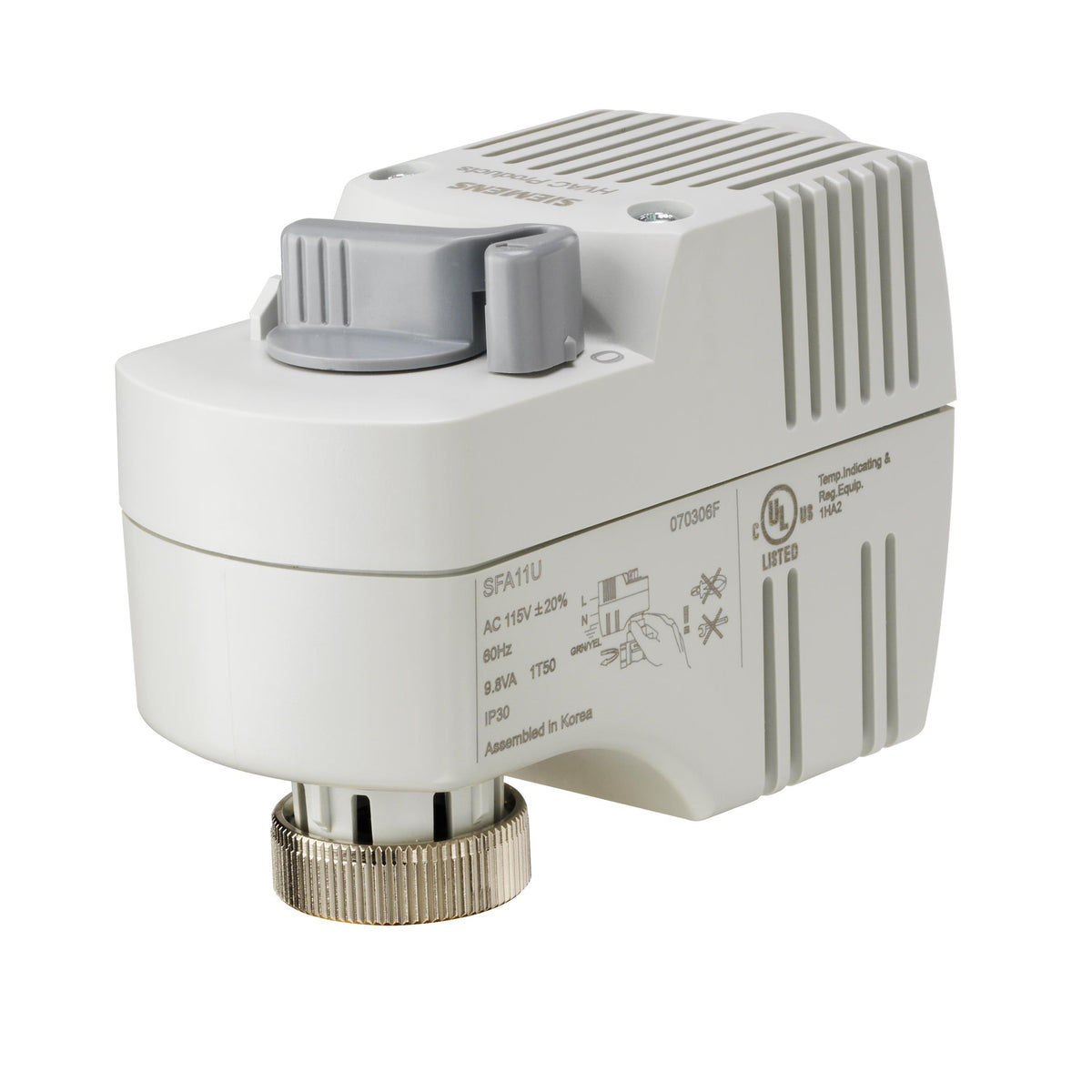

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SFP71U
Documents and manuals
Siemens SFP71U Documents
Datasheet(599 Series Zone Valves 2-Way. 3-Way Electric & Thermic Actuators)Datasheet(599 Series Zone Valve. Electric Actuator Assembly Selection Technical Bulletin)Datasheet(599 Series Zone Valve SF Series Electronic Valve Actuator. 2-position Control Technical Instructions)Installation instruction(599 Series Zone Valves SFA / SFP Electronic Valve Actuator 2-Position Control Installation Instructions) Installation Instructions More Info
Overview
Details for SFP71U
Zone Valve Electronic Actuator, 24 Vac, 2-Position, NO, SR.
Specifications
- Actuator Type
- Electronic
- Control or Fire/Smoke Type
- Control Damper
- Force
- 105 N
- Fail Safe
- Yes
- Control Signal
- 2-position
- Positioning time
- 10 s
- Power consumption
- 9.8 VA
- Mounting position
- NEMA 1 (interior only)
- Ambient temperature, operation
- 1…50 °C
- Ambient humidity, operation
- 0% to 90% rh (non-condensing)
- Operating voltage
- 120 VAC
- Supply Voltage
- 24 VAC
- Stroke
- 2.5 mm
- Cable length
- 2.5 m
- Dimensions (W x H x D)
- 4.4 x 3.4 x 2.3 in
- Degree of protection
- IP54
