SAX61.03U | Flowrite Actuator, 24Vac, 0-10Vdc / 4-20 mA Proportional NSR | Siemens
The Flowrite SAX Valve Actuator is used with Flowrite Valves with 3/4-inch stroke. This electronic valve actuator requires 24 Vac supply to provide 0 to 10 Vdc or 4-20 mA proportional control of the valve. Other features of this valve actuator include UL listed for plenum installations, direct-coupled installation requires no special tools or adjustments, manual override with visual postion indication, non-spring return, and 180 lb (800N) nominal force with 30 sec run time.

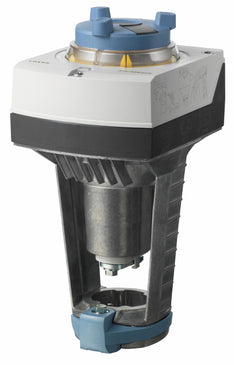

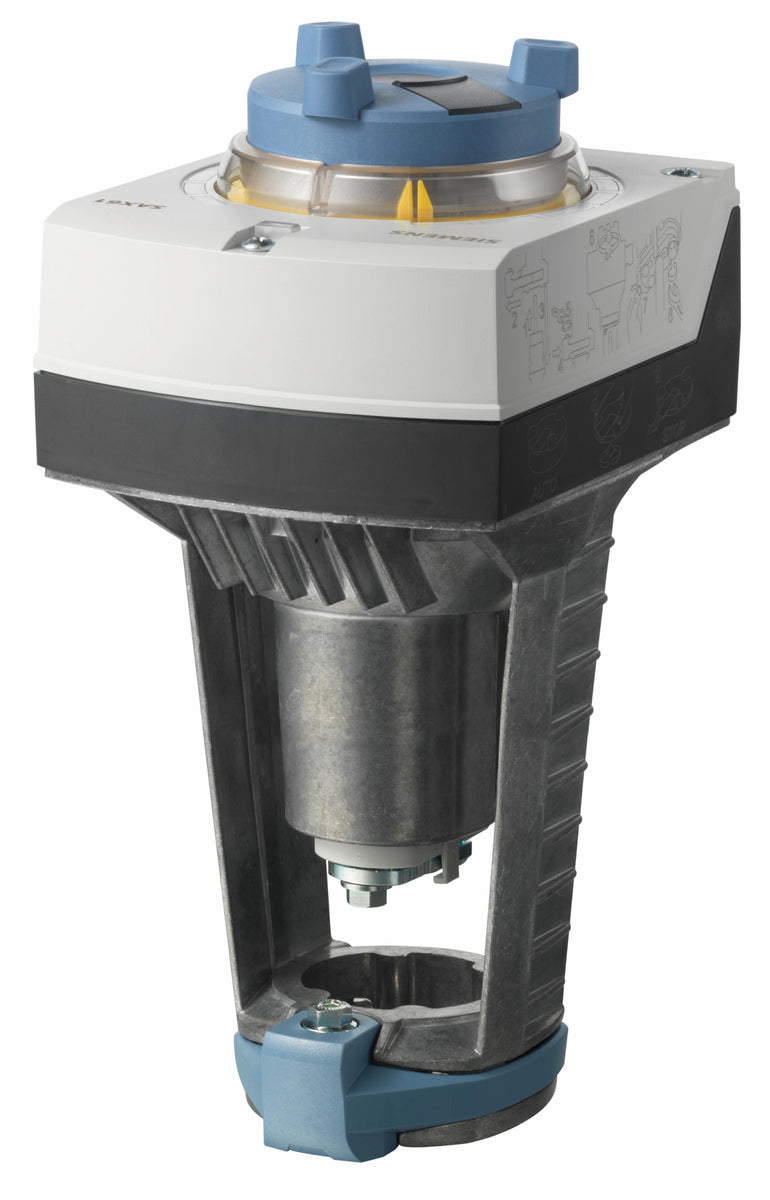

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SAX61.03U
Documents and manuals
Siemens SAX61.03U Documents
Datasheet(SAX Electronic Valve Actuator Non Spring Return. 24 Vac. Proportional Control Technical Instructions)Datasheet(Pressure Independent Control Series 2-Way Flanged Valves and Electromotoric Valve Actuators Specification Sheet)Datasheet(Electromotoric actuators SAX..)Basic documentation(Actuators SAX... SAY... SAV... SAL..)Declaration of conformity(EU Declaration of Conformity SAX31/61/81/MO)Declaration of conformity(RCM Supplier's declaration SAX31/61/81)Declaration of conformity(Test report EN 10204 (type 2.2))Environmental Declaration(Electromotoric actuators. SAX... SAY..)Installation instruction(SAX Electronic Valve Actuator Installation Instructions)Mounting instruction(Stem heating element ASZ6.6)Mounting instruction(Function module AZX61.1)Dimension Drawings(Stroke actuator. non-spring return. 2D drawing. dwg/dxf format)Dimension Drawings(Stroke actuator. non-spring return. 3D drawing. dwg. stp format) Installation Instructions More Info
Overview
Details for SAX61.03U
Flowrite Actuator, 24Vac, 0-10Vdc / 4-20 mA Proportional NSR
Specifications
- Fail Safe
- No
- Positioning signal
- DC 0…10 V, DC 4…20 mA, 0…1000 Ohm
- Position feedback
- DC 0…10 V
- Power consumption
- 8 VA
- Mounting position
- Nema 1 (interior only), Upright to horizontal
- Ambient humidity, operation
- 95 % r.h.
- Operating voltage
- 24 VAC/DC
- Supply Voltage
- 24 VAC
- Frequency
- 50/60
- Stroke
- 20 mm
- Positioning time
- 30 s
- Stroke, mm
- 20 mm
- Ambient temperature, operation
- -5…55 °C
- Dimensions (W x H x D)
- 4.88 x 9.53 x 5.91 in
- Degree of protection
- IP54
- Spring return function
- Non-spring return functionality
