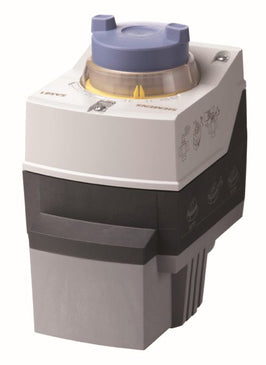

SAS81.33U | Powermite 599 MT Series SAS Electronic Valve Actuator, SR, 24V, Float Control | Siemens
The Powermite 599 MT Series SAS Electronic Valve Actuator requires a 24V supply and receives a floating control signal to provide three-position control of a valve. The spring return actuator works with Powermite 599 MT Series terminal unit valves with a 7/32 in. stroke.
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SAS81.33U
Documents and manuals
Siemens SAS81.33U Documents
Datasheet(Powermite MT Series Terminal Unit 2-Way Valves Submittal Sheet)Datasheet(Powermite 599 MT Series Terminal Unit 3-Way Valves. Submittal Sheet)Datasheet(Powermite 599 MT Series Terminal Unit Valve and Assembly Selection Technical Bulletin)Datasheet(Electromotoric actuators for stroke valves SAS..)Datasheet(Powermie 599 MT Series SAS Electronic Valve Actuator. 24 Vac or 24 Vdc. Floating Control (3-Position) Technical Instructions)Basic documentation(Actuators SAS... SAT.. for valves)Declaration of conformity(EU Declaration of Conformity SAS31../61../81../MO)Declaration of conformity(RCM Supplier's declaration SAS31../61../81..)Declaration of conformity(Test report EN 10204 (type 2.2))Declaration of conformity(UKCA Conformity Declaration Electromotoric actuators for valves SAS31../61../81..)Environmental Declaration(Produkt-Umweltdeklaration / Environmental Product Declaration)Installation instruction(SAS81 Series Electronic Valve Actuators Installation Instructions) Installation Instructions More Info
Overview
Details for SAS81.33U
Powermite 599 MT Series SAS Electronic Valve Actuator, SR, 24V, Float Control
Specifications
- Fail Safe
- Yes
- Spring return function
- Spring return functionality
- Position feedback
- DC 0...10 V (SA..6..)
- Power consumption
- 2 VA
- Mounting position
- Upright to horizontal
- Ambient temperature, operation
- -5…55 °C
- Ambient humidity, operation
- 95 % r.h.
- Operating voltage
- 24 VAC/DC
- Supply Voltage
- 24 VAC
- Stroke
- 5.5 mm
- Stroke, mm
- 5.5 mm
- Dimensions (W x H x D)
- 3.66 x 5.94 x 3.15 in
- Degree of protection
- IP54
